Quick Details
-
Frequency:
-
50/60 HZ, 50/60HZ
-
Welding Area:
-
10cm
-
Dimensions:
-
L32 x W15cm x H22cm
-
Usage:
-
welding geomembrane,etc
-
Applicable Industries:
-
plastic welder
-
Weight (KG):
-
9 KG
-
Power (kW):
-
800W
-
Marketing Type:
-
New welder
-
Description:
-
Geomembrane welding machine
-
Thickness:
-
0.2mm-1.5mm
-
Power:
-
800W
-
Seam Strength:
-
at least 85%
-
Function:
-
Welding Fusing Embossing Joint Splice
-
Welding material:
-
PP HDPE PE PVC EVA
-
Model:
-
800
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JingWei
-
Voltage:
-
220V, 220V
-
Frequency:
-
50/60 HZ, 50/60HZ
-
Welding Area:
-
10cm
-
Dimensions:
-
L32 x W15cm x H22cm
-
Usage:
-
welding geomembrane,etc
-
Applicable Industries:
-
plastic welder
-
Weight (KG):
-
9 KG
-
Power (kW):
-
800W
-
Marketing Type:
-
New welder
-
Description:
-
Geomembrane welding machine
-
Thickness:
-
0.2mm-1.5mm
-
Power:
-
800W
-
Seam Strength:
-
at least 85%
-
Function:
-
Welding Fusing Embossing Joint Splice
-
Welding material:
-
PP HDPE PE PVC EVA
-
Model:
-
800

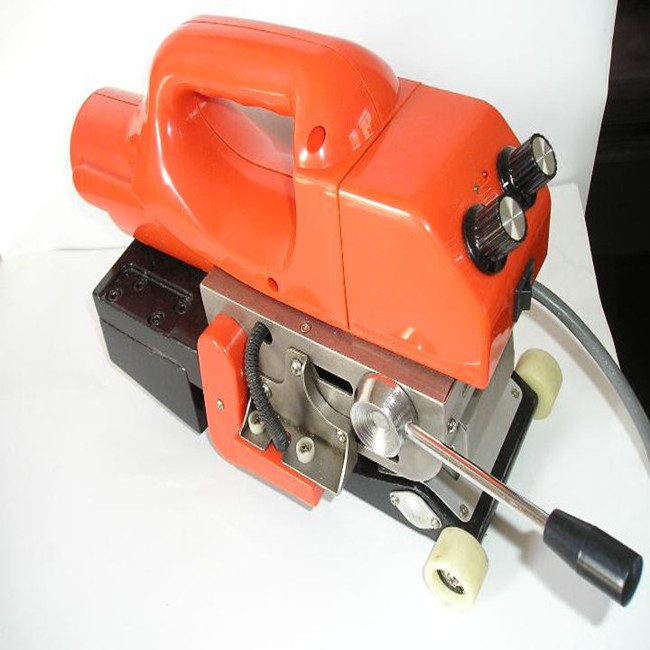

Geomembrane Overlap Hot Wedge Welding Machine
G eomembrane welding machine is our new developed products, which can weld geo membrane of various thickness and are applicable for welding of all thermal fused material such as LDPE,
PVC, HDPE, EVA, PP and so on.
The control of this series of welding machine adopts PID automatic thermostatic control with
high control accuracy and low temperature fluctuation; speed control adopts PWM automatic
voltage and speed regulation circuit, driven by DC servo motor, with great output torque and
the operating is stable. It can maintain a constant speed on the condition of creeping, vertical
creeping and variable road load. Also this series of welding machine is stable in performance
despite of external temperature and voltage variation.
This series of welding machine is excellent in performance and easy for operating, with high welding speed and good work quality. It is extensively used in engineering projects such as expressways, tunnels, reservoirs, waterproof of construction and so on .
Technical Parameters:
|
Voltage (V) |
V220V/110V |
|
Frequency (Hz) |
50Hz/60HZ |
|
Power (P) |
800W |
|
Welding speed (V) |
0.8-6m/min |
|
Heating temperature (T) |
0-450 ℃ |
|
Thickness of material to be welded |
0.2mm-2.0mm |
|
Overlap width |
100mm |
|
Welding width |
12.5mm×2, interior cavity 12mm |
|
Seam strength |
≥85% base material (tensile resistant in shear direction), complete machine |
|
Dimensions |
L32 x W15cm x H22cm |
|
Net Weight |
4.5kg |
|
Gross Weight |
9kg |
|
Insulation class |
class II |
Main Components:
Packages: aluminum cans +carton box
