Quick Details
-
Product Name:
-

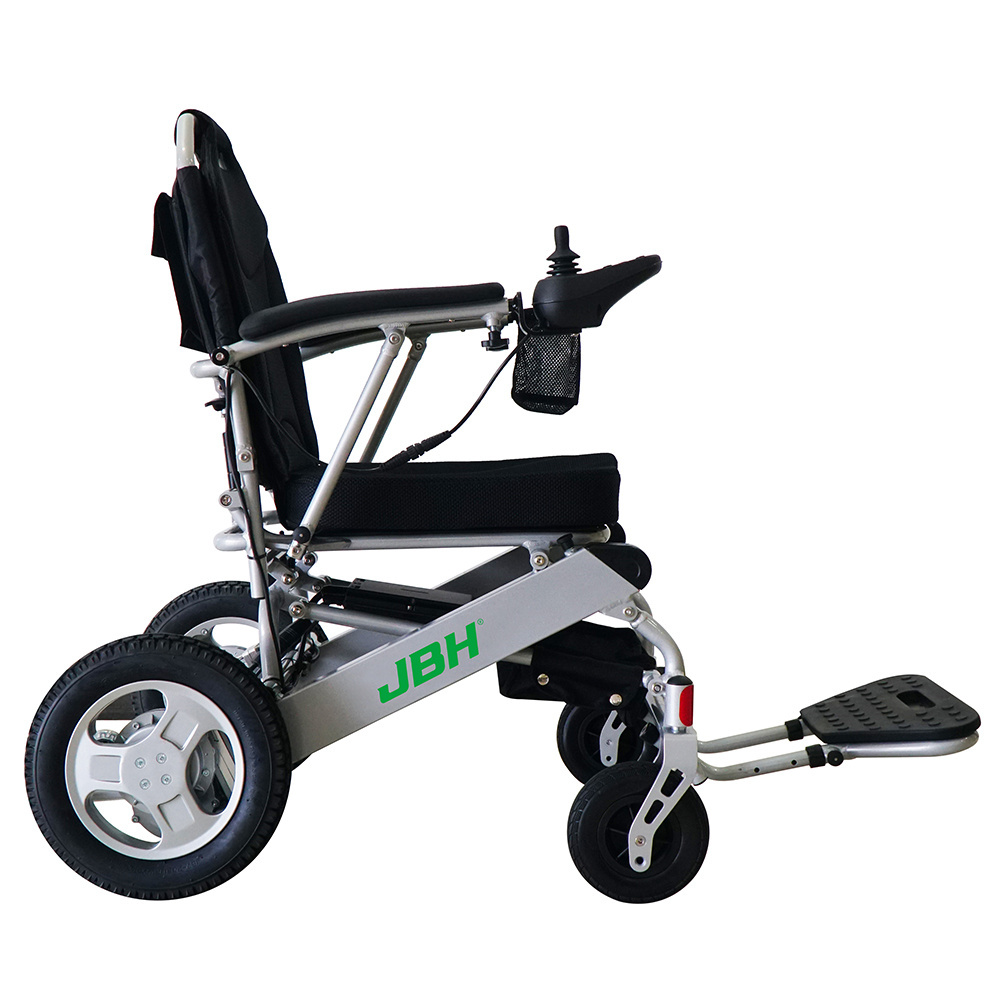

Lightweight Electric Wheelchairs
-
Material:
-
Aluminum Alloy
-
Color:
-
Customized Color
-
Feature:
-
Comfortable
-
Weight:
-
29 Kg
-
Warranty:
-
3years
-
Battery:
-
Lithium Battery 6AH*2PCS
-
Motor:
-
250W*2pcs
-
Capacity:
-
200 KG
-
Max speed:
-
6km
Quick Details
-
Place of Origin:
-
China,Chuzhou
-
Brand Name:
-
JBH
-
Model Number:
-
D26
-
Product Name:
-
Lightweight Electric Wheelchairs
-
Material:
-
Aluminum Alloy
-
Color:
-
Customized Color
-
Feature:
-
Comfortable
-
Weight:
-
29 Kg
-
Warranty:
-
3years
-
Battery:
-
Lithium Battery 6AH*2PCS
-
Motor:
-
250W*2pcs
-
Capacity:
-
200 KG
-
Max speed:
-
6km
Specification
|
Model
|
D26
|
Date
|
Metric
|
|
|
Specification
|
Unfolded Dim(LxWxH)
|
1100*600*990 mm
|
985×600×950mm
|
|
|
|
Folded Dim(LxWxH)
|
600*330*820 mm
|
600×355×790mm
|
|
|
|
Width of Armrests
|
30 mm
|
480mm
|
|
|
|
Seat Width
|
500 mm
|
480mm
|
|
|
|
Seat Depth
|
420 mm
|
420mm
|
|
|
|
Seat Height
|
520 mm
|
500mm
|
|
|
|
Pedal High From Ground
|
410 mm
|
13.5mm
|
|
|
|
Packing Carton(LxWxH)
|
710*380*890 mm
|
690x430x880mm
|
|
|
Weight
|
N.W. (Without Battery)
|
26 Kg
|
23.5kg
|
|
|
|
N.W. (With battery)
|
29 Kg
|
26.5kg
|
|
|
|
GW
|
36Kg
|
70.4lbs
|
|
|
Performance
|
Max Speed
|
6 km/h
|
6km/hr
|
|
|
|
Loading Capacity
|
200 kg
|
180kg
|
|
|
|
Climbing Slope
|
Max 12°
|
|
|
|
Motor
|
Type
|
DC Brushless motor
|
|
|
|
|
Motor
|
250W×2pc (500W)
|
|
|
|
Battery
|
Type
|
Lithium Battery
|
|
|
|
|
Voltage
|
24V
|
|
|
|
|
Current
|
24V 6AHx2pcs
|
|
|
|
|
Power
|
144WH
|
|
|
|
|
Range
|
25 km
|
25KM
|
|
|
|
Weight
|
3 kg
|
1.5kg/pc
|
|
|
|
Intput Voltage
|
100~240VAC 50/60Hz
|
|
|
|
Charger
|
Output Voltage
|
24V
|
|
|
|
|
Charging Time
|
6~8H
|
|
|
|
Tires
|
Front Tires
|
8" PU solid tires
|
|
|
|
|
Rear Tires
|
12" PU solid tires
|
|
|
|
Brake System
|
Brake
|
Electromagnetic Brake
|
|
|
|
Others
|
Material
|
Aluminum Alloy
|
|
|
|
|
Drive Mode
|
Rear Drive
|
|
|
|
|
Color
|
Silver, Black, Blue, Yellow, Red &Pink
|
|
|
|
|
Container
|
one 20FCL=98pcs, one 40HQ=250pcs
|
|
|
|
|
Warranty
|
3 months for cushion and tires
12 months for motor, battery and controller 36 months for frame |
|
|
