Quick Details
-
Warranty of core components:
-
12 Months
-
Weight (KG):
-
168 KG
-
Power (kW):
-
2.2
-
Sanding belt size:
-
2512mm x152mm
-
Belt speed:
-
960m/min
-
Belt tilting:
-
0~90°
-
Motor:
-
2.2kw
-
Dust port dia:
-
100mm
-
Machine weight:
-
135kgs
-
Fence size:
-
700 x60mm
-
Miter gauge:
-
Yes
-
Magnetic switch:
-
Yes
-
Cabinet storage stand:
-
Yes
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
CHANSEN
-
Marketing Type:
-
Hot Product 2022
-
Warranty of core components:
-
12 Months
-
Weight (KG):
-
168 KG
-
Power (kW):
-
2.2
-
Sanding belt size:
-
2512mm x152mm
-
Belt speed:
-
960m/min
-
Belt tilting:
-
0~90°
-
Motor:
-
2.2kw
-
Dust port dia:
-
100mm
-
Machine weight:
-
135kgs
-
Fence size:
-
700 x60mm
-
Miter gauge:
-
Yes
-
Magnetic switch:
-
Yes
-
Cabinet storage stand:
-
Yes
Products Description
|

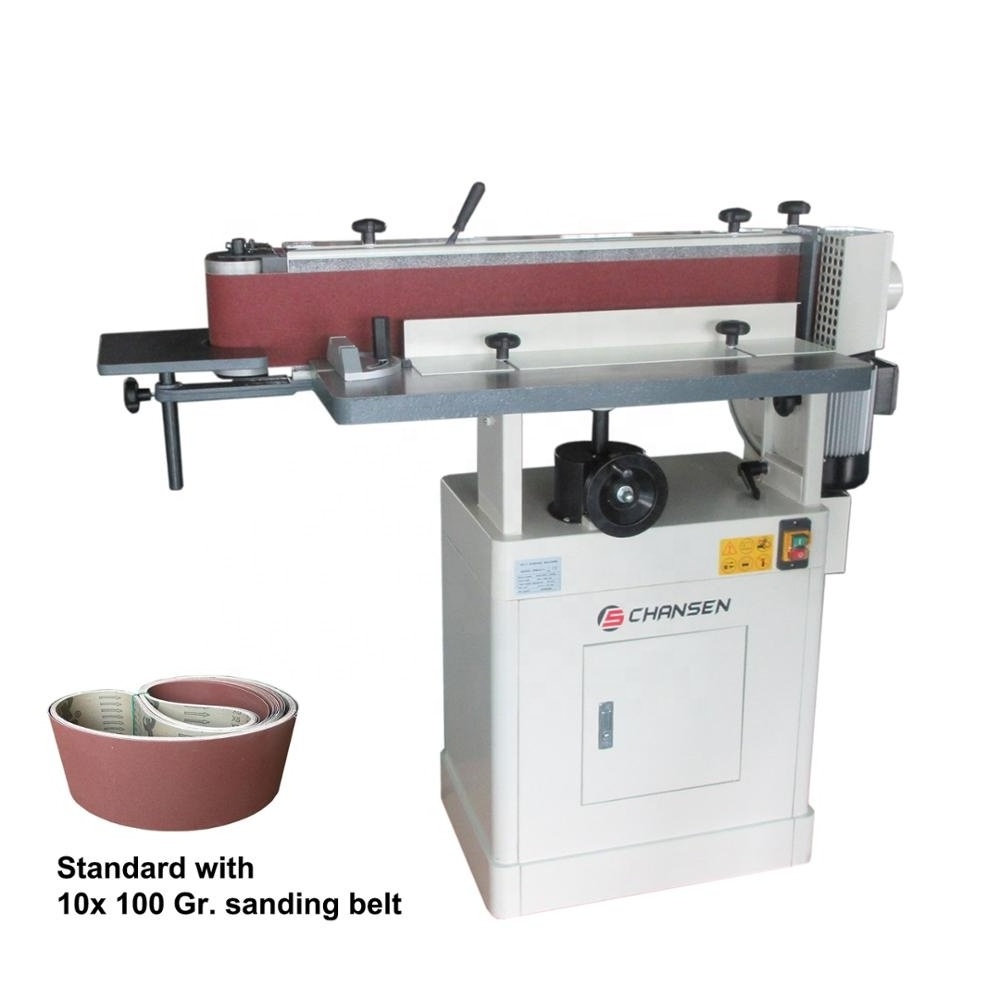

6"x99"
Oscillating Belt Sander
Item# CES100
|
|
|
|
|
||||
|
The CES100 is the 6" x 99" Oscillating Edge Sander which focus on versatility, accuracy and durability you need, in one exceptionally well designed machine. The cast iron table moves vertically allowing for the workpiece to be positioned at a precise height. The outer table adjusts for contour sanding. The 4'' dust port makes dust removal easy and oscillation reduces heat increasing, loading and burning. Edge, face, bevel, and contour sanding are all on one machine - with the power for big jobs and control for fine work.
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
Features
* Oscillating feature reduces heat build-up on sanding belt to reduce loading and burning which increases belt life
* Precision ground cast iron table with miter slot
* Adjustable outer table enables contour sanding
* Quick release lever and tracking control dial are conveniently located for replacing and tracking belts
* Belt platen is made from precision-ground steel plate for strength and durability
* Graphite covered platen runs cooler increasing machine and belt life
* Cast iron table moves up or down to provide exact workpiece positioning
* 4" dust port hooks up to your dust collection system for efficient dust removal
* Tilting sanding head for sanding bevels, angles and flat surfaces
* Big side fence provides accurate support for small workpiece sanding
* Stand with storage
* Precision ground cast iron table with miter slot
* Adjustable outer table enables contour sanding
* Quick release lever and tracking control dial are conveniently located for replacing and tracking belts
* Belt platen is made from precision-ground steel plate for strength and durability
* Graphite covered platen runs cooler increasing machine and belt life
* Cast iron table moves up or down to provide exact workpiece positioning
* 4" dust port hooks up to your dust collection system for efficient dust removal
* Tilting sanding head for sanding bevels, angles and flat surfaces
* Big side fence provides accurate support for small workpiece sanding
* Stand with storage
* Standard with 10-piece high quality 100 Grit sanding belt set
Details Images
|
Specification
|
|
|
|
|
||||
|
Motor
|
220v/1ph/2.2kw
|
|
|
|
||||
|
Worktable size
|
845 x300mm
|
|
|
|
||||
|
Outer table size
|
300 x250mm
|
|
|
|
||||
|
Sanding belt size
|
2512 x152mm
|
|
|
|
||||
|
Belt speed
|
960m/min
|
|
|
|
||||
|
Fence size
|
700 x60mm
|
|
|
|
||||
|
Belt tilts
|
0~90°
|
|
|
|
||||
|
Dust port size
|
100mm
|
|
|
|
||||
|
Overall size
|
1500 x620mm x1300mm
|
|
|
|
||||
|
Unload noise
|
80dBA
|
|
|
|
||||
|
Machine weight
|
135kgs
|
|
|
|
||||
|
Packing dimensions
|
1300 x820 x1150mm
|
|
|
|
||||
|
Shipping weight
|
168kgs
|
|
|
|
||||
