Quick Details
-
Model Number:
-
1200*2500
-
Voltage:
-
380V
-
Power:
-
5.5kw
-
Dimension(L*W*H):
-
according to different specifications
-
Weight:
-
depending on different models
-
Warranty:
-
One Year
-
Certification:
-
ISO,CE
-
Color:
-
as request
-
Product name:
-
gold trommel screen,gold wash trommel
-
Feeding size:
-
3-10mm
-
Recovery rate:
-
95-98%
-
Installation:
-
Engineer Guide
-
After sale service:
-
Provide Engineer Service Overseas
-
Motor:
-
Chinese Famous Brand
-
diesel generator:
-
supply
-
drawing:
-
supply
Quick Details
-
Type:
-
roary drum trommel screen
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Hengxing small trommel screen
-
Model Number:
-
1200*2500
-
Voltage:
-
380V
-
Power:
-
5.5kw
-
Dimension(L*W*H):
-
according to different specifications
-
Weight:
-
depending on different models
-
Warranty:
-
One Year
-
Certification:
-
ISO,CE
-
Color:
-
as request
-
Product name:
-
gold trommel screen,gold wash trommel
-
Feeding size:
-
3-10mm
-
Recovery rate:
-
95-98%
-
Installation:
-
Engineer Guide
-
After sale service:
-
Provide Engineer Service Overseas
-
Motor:
-
Chinese Famous Brand
-
diesel generator:
-
supply
-
drawing:
-
supply

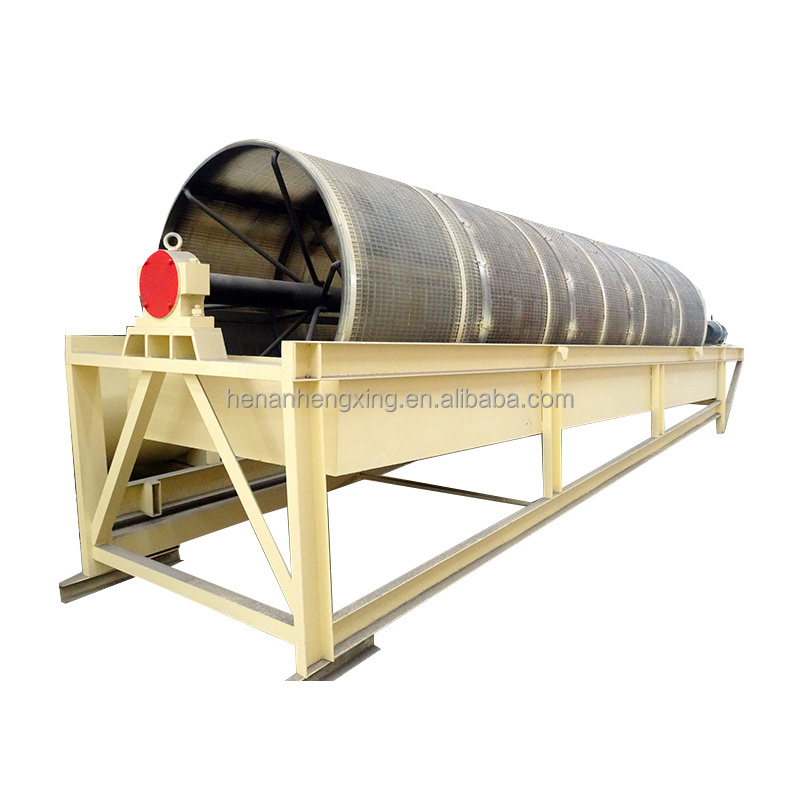

Sand And Gravel Sieving Machine Small Trommel Screen:
GT Series Trommel Screen /drum screen provides a simple, efficient and economical solution to upgrade a wide range of material and optimizes the subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost to increase product quality, while allowing rapid and large volume processing.
Applications of trommel screen/rotary gravel drum screen
Materials classification process for sand,gravel,stone,mineral,wood chip etc
Specification of trommel screen /rotary gravel drum screen :
|
Model |
Power (kw) |
Drum Diameter (mm) |
Drum Length (mm) |
Screen Size (mm) |
Dimension (mm) |
|
GT1015 |
3 |
1000 |
1500 |
3-10 |
3000 * 1400 * 2154 |
|
GT1020 |
3 |
1000 |
2000 |
3-10 |
3000*1400*2145 |
|
GT1225 |
4 |
1200 |
2500 |
3-10 |
3460*1400*2145 |
|
GT1530 |
5.5 |
1500 |
3000 |
3-10 |
4460*1900*2820 |
|
GT1545 |
7 |
1500 |
4500 |
3-10 |
5960*1900*3080 |
|
GT1848 |
11 |
1800 |
4800 |
3-10 |
6500*2300*4000 |
|
GT2055 |
15 |
2000 |
5500 |
3-10 |
7500*2500*4000 |
Small trommel screen for sand gravel production site:
Contact:
Ms Sara Pang
Mobile phone : (whatsapp number): 0086137 8347 1727
Skype: sarapang6
Wechat: sarapang6
Hengxing Factory and Certificate:
