Quick Details
-
Application:
-
Warehouse
-
Design Style:
-
Industrial
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LIFPALIFT
-
Model Number:
-
GL-A
-
Operate type:
-
AC Powered
-
no. of stops:
-
2/3/4
-
capacity:
-
500kg
-
travel height:
-
10.0m
-
lowered height:
-
0.10m
-
usable platform size:
-
1800*2000mm
-
overall dimensions:
-
2400*2100mm
-
power supply:
-
AC 110/220/230/380/415V
-
lift motor:
-
3.00kW
-
lifting speed:
-
90mm per second
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Warehouse
-
Design Style:
-
Industrial
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LIFPALIFT
-
Model Number:
-
GL-A
-
Operate type:
-
AC Powered
-
no. of stops:
-
2/3/4
-
capacity:
-
500kg
-
travel height:
-
10.0m
-
lowered height:
-
0.10m
-
usable platform size:
-
1800*2000mm
-
overall dimensions:
-
2400*2100mm
-
power supply:
-
AC 110/220/230/380/415V
-
lift motor:
-
3.00kW
-
lifting speed:
-
90mm per second
500kg Hydraulic Small Building Mini Elevator Used Cargo Elevator for Sale

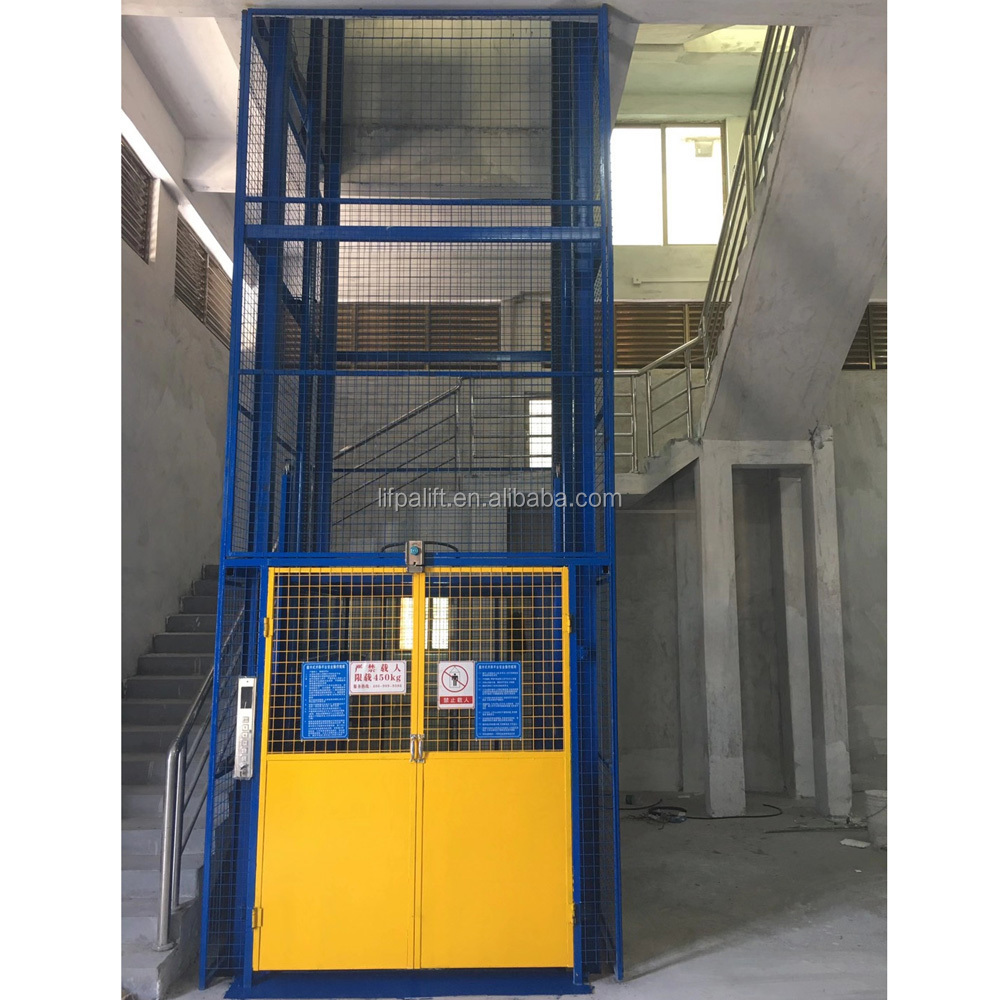

Real Pictures
Product Highlights
• LIFPALIFT's exclusive Assembled Positional-Rollers .
• 3D Drawing for the Rollers-design .
• Up to 8 sets of Rollers ensure working stably.
Features & Benefits
• LIFPALIFT's exclusive Assembled Positional-Rollers provides lifting and
lowering stably
• Same or Through loading & unloading configuration
• Standard equipped Steel Wire Ropes provides addtional strength and safety
• Emergency stop button fitted to all control stations
• Manual Lower Valve
• Floor mounted, no pit required
• Comprehensive O&M manual in English version
• AC 110/220/380/460V, 50/60Hz power supply
• Custom size and specs available
Standard Safety Features
• Standard equipped Steel Wire Ropes for addtional safety.
• Emergency stop button fitted to all control stations.
• Standard equipped Manual Lower Valve .
Standard Equipment
• Power station with Protection Cabinet
• Push-button control station
• 2000mm high platform guardrails on non-loading sides
• Comprehensive Installation / O&M manual in English version
• Same side or Through Loading
Optional Equipment
• Bespoke platform sizes
• Hydraulic Synchronous Valve for unbalance loading
• Trolley stop barriers on platform
• Working flashing alarm beacon
• Safe gates fitted with mechanical interlocks
• 2000mm high double gates at each floor
• Safe gates with Hazard warning safety signs
• Clad enclosure
• American/UK/European standard power input
Main Parameters
| Model | GL-1041-1820-A | GL-1070-1820-A | |
| capacity | kg | 1000 | 1000 |
| no. of stops | 2 | 3 | |
| travel height | mm | 4100 | 7000 |
| lowered height | mm | 100 | 100 |
| power input | V | AC 110 - 380 | AC 110 - 380 |
| lift motor | kW | 3.0 | 3.0 |
| lift speed - w. o. load | mm/s | 95 | 90 |
| lowered speed - w. o. load | mm/s | 80 | 80 |
| loading & unloading side | Same or Through | ||
LIFPALIFT offers a full line of hydraulic goods lift platforms and other material handling equipment.
