- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZHUXIN
-
Model Number:
-
SHXJ-370x4
-
Voltage:
-
380V,50HZ,3PHASE
-
Dimension(L*W*H):
-
4500x1350x1800mm
-
Weight:
-
2000 KG, 2000kg
-
After-sales Service Provided:
-
Engineers Service Machinery Overseaside
-
Max Width of Bag-making:
-
350mm
-
Max Length of Bag-making:
-
100-600mm
-
Max Speed of Bag-making:
-
150x4pcs/min
-
Single-face Film Thickness:
-
0.01-0.025mm
-
Heating Power:
-
6kw
-
Total Power:
-
8kw
-
Servo Motor:
-
1.5kw YASKAWA JAPAN
-
Outline Dimension(LxWxH):
-
4500x1350x1800mm
Quick Details
-
Machine Type:
-
Bag Forming Machine
-
Bag Type:
-
Shopping Bag
-
Material:
-
Plastic
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZHUXIN
-
Model Number:
-
SHXJ-370x4
-
Voltage:
-
380V,50HZ,3PHASE
-
Dimension(L*W*H):
-
4500x1350x1800mm
-
Weight:
-
2000 KG, 2000kg
-
After-sales Service Provided:
-
Engineers Service Machinery Overseaside
-
Max Width of Bag-making:
-
350mm
-
Max Length of Bag-making:
-
100-600mm
-
Max Speed of Bag-making:
-
150x4pcs/min
-
Single-face Film Thickness:
-
0.01-0.025mm
-
Heating Power:
-
6kw
-
Total Power:
-
8kw
-
Servo Motor:
-
1.5kw YASKAWA JAPAN
-
Outline Dimension(LxWxH):
-
4500x1350x1800mm

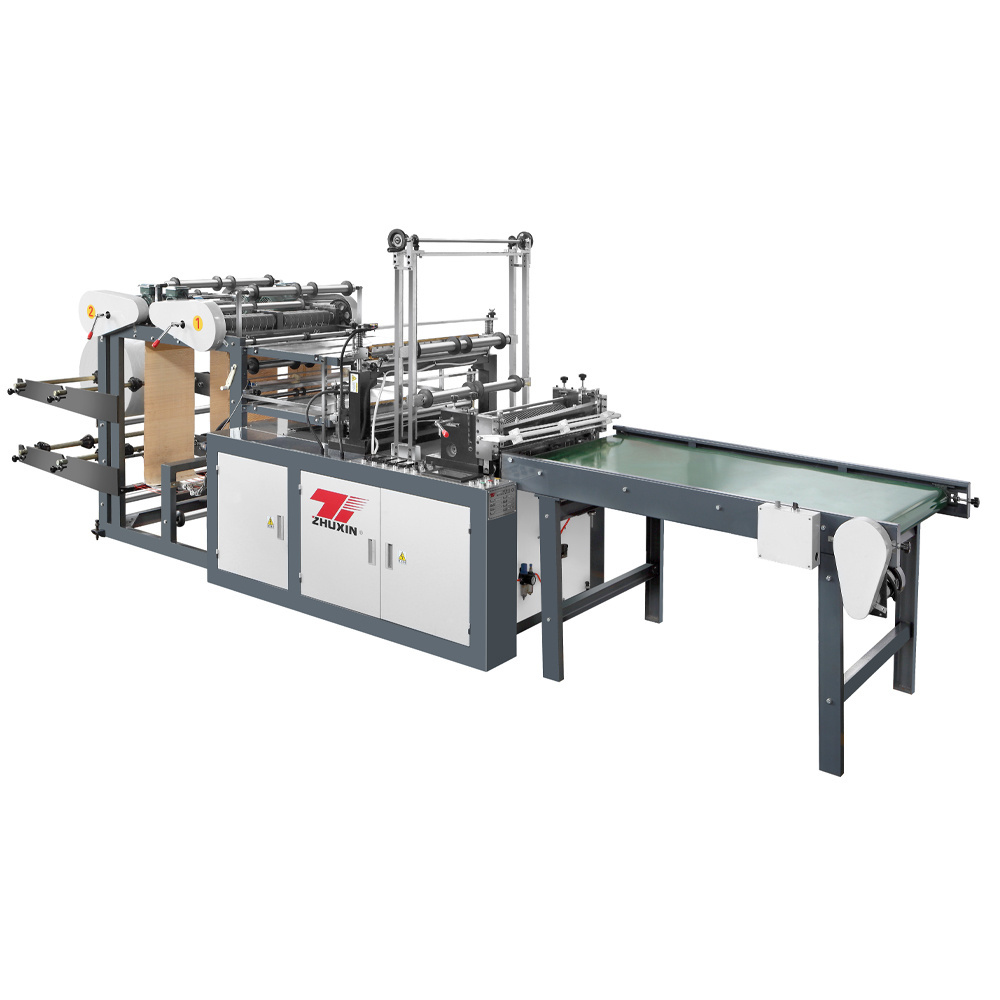

SHXJ-370x4 Double Layer Four Channels Hot Sealing And Cold Cutting Bag Machine
Main usage:
1.The machine is suitable for sealing and cutting HDPE, LDPE and PP film, so it is the best equipment for producing plastic film vest bags and flat bags.
2.This machine is equipped with photoelectric control feeding device, automatic temperature control device static, electricity removing device, automatic counting and alarm device, etc. With such characteristics as automatic bag-making process, stable performance and firm bottom sealing, this machine is the most economical and suitable sealing and cutting bag-making equipment for large, middle and small sized constant soft packing enterprises.
Product Description
|
Model Number
|
SHXJ-370x4
|
|
Max Width of Bag-making
|
350mm
|
|
Max Length of Bag-making
|
100-600mm
|
|
Max Speed of Bag-making
|
150x4pcs/min
|
|
Single-face Film Thickness
|
0.01-0.025mm
|
|
Heating Power
|
6kw
|
|
Total Power
|
8kw
|
|
Servo Motor
|
1.5kw YASKAWA JAPAN
|
|
Cutter Motor
|
1.5kw TAIWAN
|
|
Unwinding Motor
|
750wx4
|
|
Weight
|
2000kg
|
|
Outline Dimension(LxWxH)
|
4500x1350x1800mm
|
