Quick Details
-
Product Name:
-
Telephone line protector
-
Rate operating voltage Un:
-
DC110 DC48 DC24
-
norminal discharge current in(8/20u):
-
3KA
-
Band width:
-
2MHz
-
interface:
-
RJ11
-
Response time:
-
less than 1 ns
-
material of outer covering:
-
shield Aluminum
-
protective mode:
-
full protective mode
-
Weight:
-
68g
-
Warranty:
-
2 Years
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CUAJE
-
Model Number:
-
OBVX-RJ11
-
Product Name:
-
Telephone line protector
-
Rate operating voltage Un:
-
DC110 DC48 DC24
-
norminal discharge current in(8/20u):
-
3KA
-
Band width:
-
2MHz
-
interface:
-
RJ11
-
Response time:
-
less than 1 ns
-
material of outer covering:
-
shield Aluminum
-
protective mode:
-
full protective mode
-
Weight:
-
68g
-
Warranty:
-
2 Years

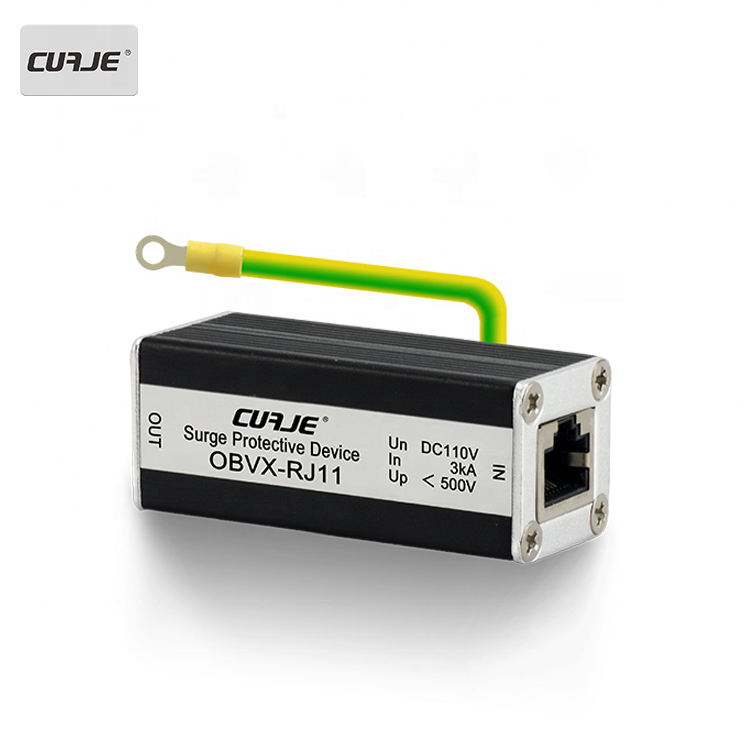

Telephone line protector OBVX-RJ11 is a protector with RJ11 input and output connectors, able to hold up nominal discharge currents of 3kA for each line.
Both common and differential protection recommended for this type of lines.
Protection for telephone lines and also for the digital and analogical equipment connected to these lines (fax, modem, etc).
In normal conditions stays inactive, without affecting the line working and without producing any leakage.
Discharge takes place in an internal encapsulated element, with no external flash.
Very fast response
Reference |
OBVX-RJ11-150 |
OBVX-RJ11-110 |
OBVX-RJ11-48 |
OBVX-RJ11-24 |
||
Nominal voltage : Un |
150Vdc |
110Vdc |
48Vdc |
24Vdc |
||
Maximum continuous operating voltage: Uc |
170Vdc |
150Vdc |
60Vdc |
30Vdc |
||
Nominal discharge current for line C2 10kV(1,2/50μs) / 5kA(8/20μs): In (C2) |
3kA |
|||||
Protection level at In (8/20μs) : |
330V |
300V |
200V |
120V |
||
Maximum working current: |
300mA |
|||||
Series resistance: |
15Ω |
|||||
Response time: |
< 10ns |
|||||
Working temperature: |
-40 ℃ +80 ℃ |
|||||
SPD location: |
Indoor |
|||||
Type of connection: |
Series (two ports) |
|||||
Pin Outs |
3,4 |
|||||
Input / Output connector: |
RJ 11 / RJ 11 |
|||||
Certificated tests according to: IEC 61643-21, EN 61643-2 1 |
