Quick Details
-
Model Number:
-
DHEX
-
Brand Name:
-
Darhor
-
Product name:
-

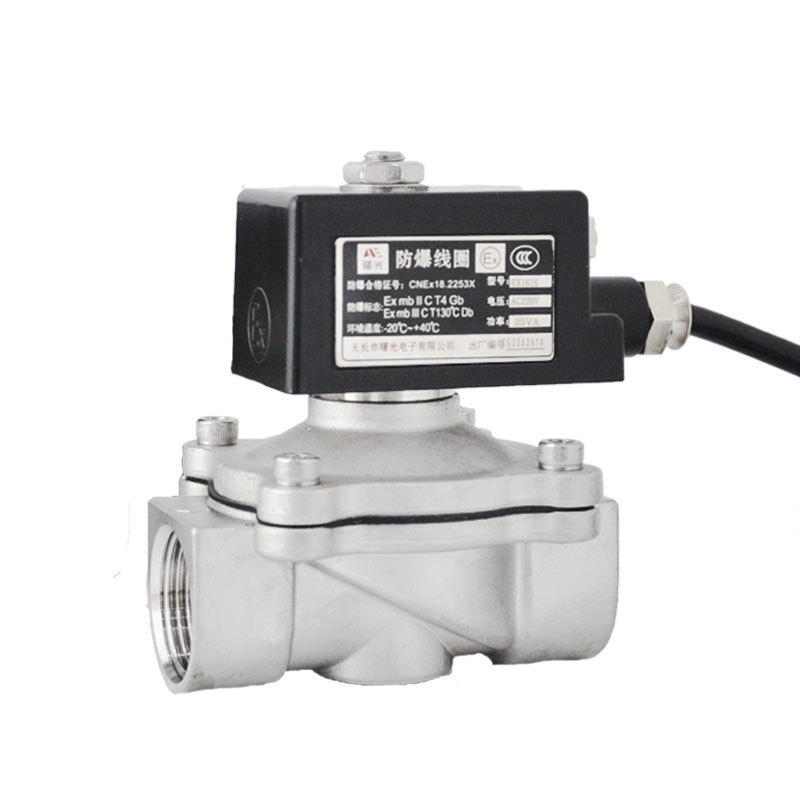

explosion-proof solenoid valve
-
Working pressure:
-
0-10bar/0.3-16BAR
-
Seal Material:
-
NBR
-
Body material:
-
BRASS, SS304,SS316
-
Working medium:
-
steam,liquid,gas,oil
-
explosive-prood grade:
-
ExmbIICT4
-
Temperature:
-
-5--80C
-
Voltage:
-
220VAC/24VDC
Quick Details
-
Port Size:
-
1/2",3/4", 1", 11/4", 11/2", 2"
-
Warranty:
-
1 years
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
DHEX
-
Brand Name:
-
Darhor
-
Product name:
-
explosion-proof solenoid valve
-
Working pressure:
-
0-10bar/0.3-16BAR
-
Seal Material:
-
NBR
-
Body material:
-
BRASS, SS304,SS316
-
Working medium:
-
steam,liquid,gas,oil
-
explosive-prood grade:
-
ExmbIICT4
-
Temperature:
-
-5--80C
-
Voltage:
-
220VAC/24VDC
Product Description
Characteristic:
1.Two position two way explosion-proof solenoid valve.
2.Long lifespan ,more than 1 million cycles.
2.Long lifespan ,more than 1 million cycles.
Material:
Body-Brass, Stainless Steel
Seal- FKM, EPDM, PTFE
Armature Tube-Stainless Steel 304
Plunger- Stainless Steel 430F
Stop- Stainless Steel 430F
Springs- SS304
Shading Rings- SS304
|
Product:
|
explosion-proof safety solenoid valve
|
|
Medium:
|
Steam, Liquid, gas, oil≤20CST
|
|
Temperature:
|
VITON Seal: -30℃ to 150℃ NBR Seal: -10℃ to 80℃ EPDM Seal: -10℃ to 120℃
|
|
Pressure:
|
0-1MPa/0.03-1.6MPA
|
|
Port Size:
|
1/4",3/8'',1/2'', 3/4'',1'',1 1/4'',1 1/2'',2''
|
|
Port Thread:
|
BSP, NPT, Flange
|
|
Voltage:
|
DC24V AC240V
|
|
Explosion proof structure:
|
Flameproof(ExdIIBT4) Encapsulation type(ExmbIICT4)
|
|
Environmental temperature:
|
-10℃~ 50℃ Relative humidity≤85%
|
Warnning:
When you place an order please specify the operation and installation conditions of the
explosion-proof solenoid valve
