Quick Details
-
Model Number:
-
G5F10-D2Z200-D5
-
Protection Level:
-
0
-
Operating Temperature:
-
25T85
-
Max. Current:
-
10A
-
Application:
-
Automatic Equipment
-
Mechanical Life:
-
50000-10000000/cycles
-
Product Series:
-
G5 Series Micro Switch
-
Insulation Resistance:
-
≥100M (500VDC) Max
-
Contact Resistance:
-
≤100MΩ (Initial value)
-
Operating Speed:
-
0.1mm-1m/s
-
Operating Frequency:
-
Mechanical 60 cycles/min; Electrical 15 cycles/min.
-
Unit Net Weight:
-
6.2g
-
Color:
-
blue
-
Product Name:
-
Snap Action Micro Limit Switch
Quick Details
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZINGEAR
-
Model Number:
-
G5F10-D2Z200-D5
-
Protection Level:
-
0
-
Operating Temperature:
-
25T85
-
Max. Current:
-
10A
-
Application:
-
Automatic Equipment
-
Mechanical Life:
-
50000-10000000/cycles
-
Product Series:
-
G5 Series Micro Switch
-
Insulation Resistance:
-
≥100M (500VDC) Max
-
Contact Resistance:
-
≤100MΩ (Initial value)
-
Operating Speed:
-
0.1mm-1m/s
-
Operating Frequency:
-
Mechanical 60 cycles/min; Electrical 15 cycles/min.
-
Unit Net Weight:
-
6.2g
-
Color:
-
blue
-
Product Name:
-
Snap Action Micro Limit Switch
Shipment & Lead Time
1.
The item is in stock and they will be shipped in 7 days after receiving the payment;
2.
The listing will calculate the shipping cost automatically, but please contact us if the shipping cost is too expensive or you
need other shipment;
3. After placing the order, we will comfirm with you again to make sure everything, please see the messege on ALIBABA;
4. Please see the parameters carefully, we will not take any responsibility due to your mistake.
need other shipment;
3. After placing the order, we will comfirm with you again to make sure everything, please see the messege on ALIBABA;
4. Please see the parameters carefully, we will not take any responsibility due to your mistake.
Products Description
|
Application
|
|
|
|
|||
|
Fishing Equipment
|
Ice Crusher
|
Vending machine
|
Refrigerator door signal
|
|||
|
The bowling ball machine
|
coffee machine
|
compressor
|
Valve echo
|
|||

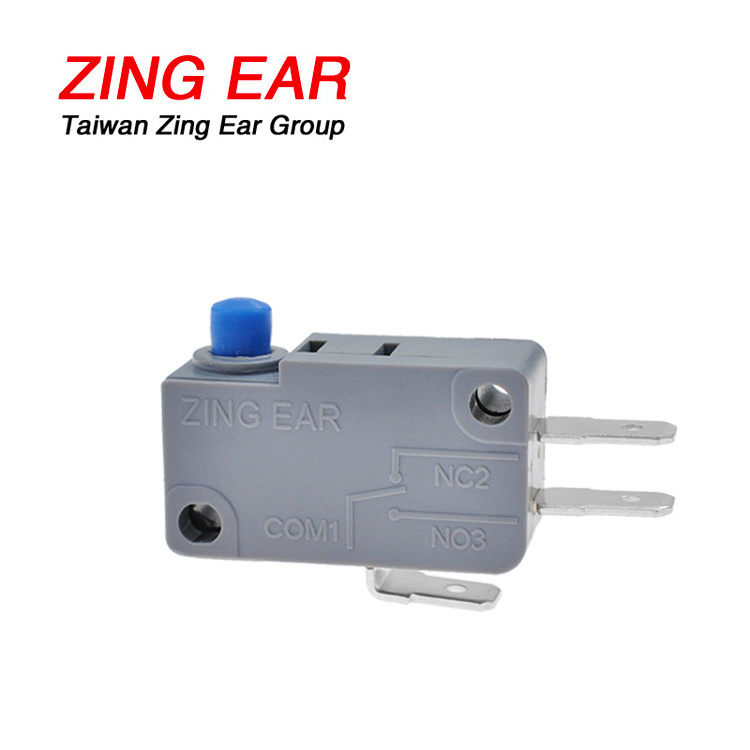

ZINGEAR G5 SERIES micro switch
Product Parameters
|
Operating speed
|
0. 1mm-1m/s(Related with actuator forms)
|
|
|
|
|||
|
Operating frequency
|
Mechanical 60 cycles/min; Electrical 15 cycles/min.
|
|
|
|
|||
|
Insulation resistance
|
≥ 100 Ω (500VDC)
|
|
|
|
|||
|
Contact resistance
|
≤ 100m Ω (Initial value)
|
|
|
|
|||
|
Between each terminals of the same polarity
|
AC1000V, 50/60нz, Imin
|
|
|
|
|||
|
Betweencurrent-carrying metal partand ground. and between eachterminaland non -current carring metal parts
|
AC1500V, 50/60HZ, 1min.
|
|
|
|
|||
|
Vibration resistance
|
10-55HZ, 1.5mm Double amplitude
|
|
|
|
|||
|
Shock resistance
|
Destruction:0F> 1.0N: 1000m/s2 (approx. 100G) max.
0F≤ 1.0N:400m/s2 (approx. 40G) max.
0F> 1.0N:200m/s2 (approx. 20G) max.
0F≤ 1.0N:100m/s2 (approx. 10G) max.
|
|
|
|
|||
|
Life expectancy
|
Mechanical >10,000, 000 cycles or 1, 000,000 cycles
Electrical >50,000 cycles or 100,000 cycles
|
|
|
|
|||
|
Electrical
|
Min. 100, 000次/cycles(Depend on part NO.)
|
|
|
|
|||
|
Weight
|
Approx. 6.2g(No lever).
|
|
|
|
|||
Free sample is available
