Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Baihao
-
Model Number:
-
RG1020S2
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
3400*1500*1300
-
Weight:
-
1100 KG
-
Marketing Type:
-
New Product
-
Max Speed:
-
400pcs/min
-
After-sales Service Provided:
-
Online
-
Product name:
-
Fully Automatic Bag Making Machine
-
After Warranty Service:
-
Onlinesupport
-
Application:
-
PLACSTIC BAG PRODUCING
-
Name:
-
Bga Making Machine
-
Function:
-
Producing Plastic Bag
-
Suitable material:
-
LDPE HDPE Biodegradable Film
-
Keywords:
-
Bag Marking Machine
-
Usage:
-
Pastic Bag
-
Type:
-
Full-auto Plastic Bags Making Machine
Quick Details
-
Machine Type:
-
Bag Forming Machine
-
Bag Type:
-
Zipper Bag
-
Material:
-
Plastic
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Baihao
-
Model Number:
-
RG1020S2
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
3400*1500*1300
-
Weight:
-
1100 KG
-
Marketing Type:
-
New Product
-
Max Speed:
-
400pcs/min
-
After-sales Service Provided:
-
Online
-
Product name:
-
Fully Automatic Bag Making Machine
-
After Warranty Service:
-
Onlinesupport
-
Application:
-
PLACSTIC BAG PRODUCING
-
Name:
-
Bga Making Machine
-
Function:
-
Producing Plastic Bag
-
Suitable material:
-
LDPE HDPE Biodegradable Film
-
Keywords:
-
Bag Marking Machine
-
Usage:
-
Pastic Bag
-
Type:
-
Full-auto Plastic Bags Making Machine
Products Description

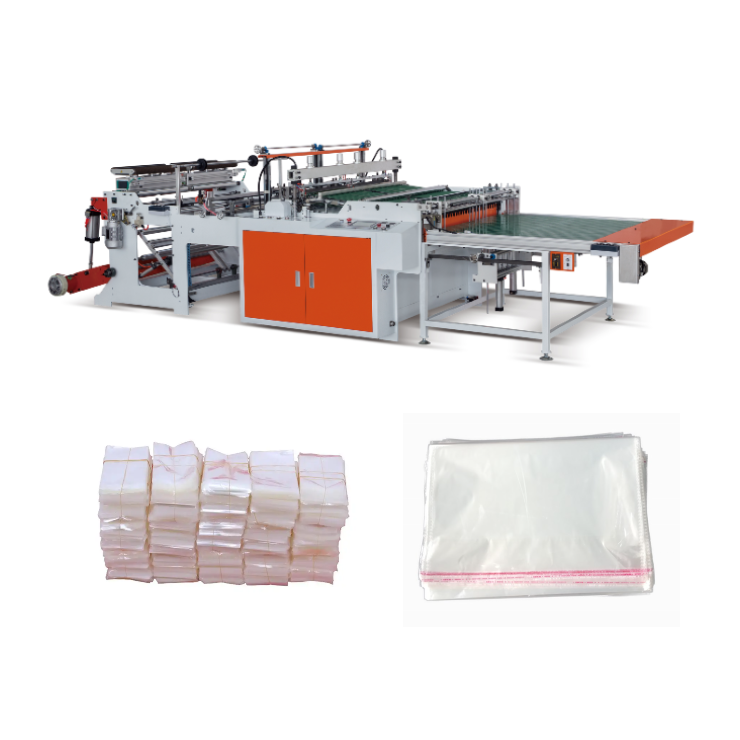

RG1020S2 SIDE SEALING MACHINE
This machine is suitable for the making garment bag, sock bag, towel bag, bread bag, underwear bag, stationery bag and so on.
The Function and Characteristic:
1. Microcomputer control machine, stepping motor (or servo motor) control film feeding,
2. Computer control length, Accurate and stable photocell tracking, Stop automatically when losing the tracking.
3. Auto counting and auto giving an alarm. Also could set auto stop working.
3. The automatic computation and to assigns quantity warning.
4. Lace heat-sealing; automatic punching; automatic gluing.
5.Cylinder material hatch. Bottom gusset.
6. Two pcs of EPC. Two feeding faclity.
7. Optional facility: 1). Ultrasonic facility, etc. (Adding by your requirement)
Product Video
Product Paramenters
|
Model
|
RG1020S2
|
RG1220S2
|
|
Voltage
|
380V/220V
|
380V/220V
|
|
Total Power
|
9.5KW
|
11.5KW
|
|
Average Power
|
4.4KW
|
5.5KW
|
|
Film Width
|
80-420mm
|
120-520mm
|
|
Bag Length
|
50-500mm
|
50-600mm
|
|
Max Speed
|
200pcs/min*2
|
150pcs/min*2
|
|
Machine Weight
|
1100KG
|
1300KG
|
|
Machine Length
|
3400mm
|
3800mm
|
|
Machine Width
|
1500mm
|
1700mm
|
|
Machine Height
|
1300mm
|
1300mm
|
Product Details
PLC+ Servo motor+ Touch screen
Photocell track & Pneumatic punching
Pneumatic shaft+ Magnetic brakes+ Tension control
EPC+ tension control
Pitman style dance roller
AB double-sided tape
Automatic collection table
Production Bag Samples
