Quick Details
-
Brand Name:
-
KEYILE
-
Model Number:
-
KYL-CZFQ11
-
Material:
-
316, 316L
-
Fluid Measured:
-
Conducting Liquid and Non Conducting Liquid
-
Production name:
-

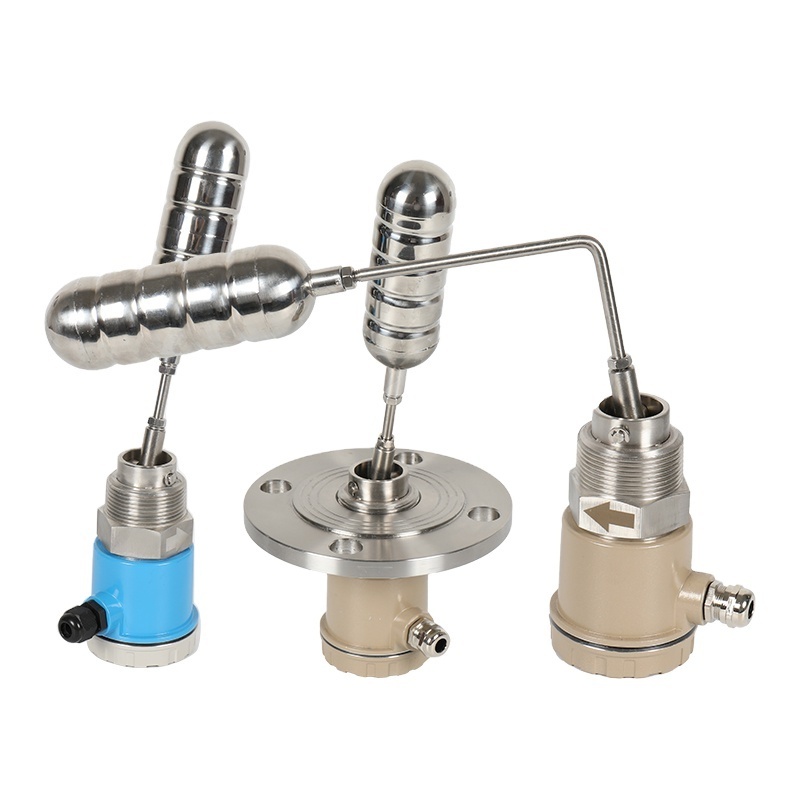

Side mounted float level switch
-
Fluid Temperature:
-
-20≤80℃
-
Process connection:
-
Flange Thread
-
Power supply:
-
24VDC/220VAC
-
Type:
-
Non-contact
-
Usage:
-
Fuel Tank Level Monitoring
-
Model:
-
KYL-CZFQ11
-
Working Pressure:
-
0-1.6 MPa
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
1year
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
KEYILE
-
Model Number:
-
KYL-CZFQ11
-
Material:
-
316, 316L
-
Fluid Measured:
-
Conducting Liquid and Non Conducting Liquid
-
Production name:
-
Side mounted float level switch
-
Fluid Temperature:
-
-20≤80℃
-
Process connection:
-
Flange Thread
-
Power supply:
-
24VDC/220VAC
-
Type:
-
Non-contact
-
Usage:
-
Fuel Tank Level Monitoring
-
Model:
-
KYL-CZFQ11
-
Working Pressure:
-
0-1.6 MPa
|
1. lt can be installed horizontally on the side wall of the tank or vertically on the top of the tank;
|
|
|
|
|
||||
|
2. lts simple structure, stable and reliable performance, easy installation;
|
|
|
|
|
||||
|
3. The control part is completely isolated from the measured liquid medium, and can be used inhigh temperature and high pressure environment;
|
|
|
|
|
||||
|
4. Multiple materials and connection methods can meet different environmental needs;
|
|
|
|
|
||||
|
5. Not susceptible to viscous liquids.
|
|
|
|
|
||||
Side-mounted float switch is often used to control the liquid level of storage tank, Side mounted floatswitch no external power supply, side or top mounted, wide temperature and pressure range, a varietyof process connections. Side mounted float switch has all stainless steel float switch, ordinary typeand high temperature type, it is mainly used in refrigerator, dehumidifier, water dispenser, humidifiermedical equipment, air conditioning, coffee machine, mold temperature machine, water cooler andother liquid level control
When the float floats up and down under the action of liquid buoyancy, the interaction between themagnetic reed switch (or microswitch) in the junction box and the magnet at the arm end causesthe magnetic reed switch (or microswitch) to act. At the same time, and output ON (ON) OFF (OFF)signal for alarm warning or remote control.
KYL (Shanghai) Intelligent Instrument Co., LTD.,
is a high-tech enterprisespecializing in industrialcontrol field instrument research and developmentproduction and sales. The products includefloat ball, magnetic flip plate level meter!Resistance spinning, tuning fork, flow flow switch; Airhammer, GT/ air vibrator;Ultrasonic, radar, RF admittance/lig uid level meter; Magnetostrictivelevelmeter/interface meter; integrated temperature transmitter, pressure transmitter!Flowmeter:Weight weight material level meter, etc. Since its establishment, thecompany has provided alarge number of high-quality automatic control products fordomestic and foreign chemicalindustry, power engineering, building control, watertreatment, cement, feed, mining, shipbuild-ing, petroleum metallurgy, machinery andother industrial production lines, which have beenwidely recognized and highlypraised by domestic and foreign customers.
