Quick Details
-
Brand Name:
-
TONGDA
-
Voltage:
-
380-460V 3 phases
-
Weight:
-
500 KG, As per model of machine
-
Dimension(L*W*H):
-
Loading with a 20GP container/set
-
Features:
-
Remote control operation, Self-propelled
-
Material:
-
Steel
-
Walking Power:
-
3kw
-
Color:
-
Customised
-
Turning Width:
-
6000mm
-
Function:
-
Compost material turning
-
Raw Material:
-
Organic waste, animal manure, food waste
-
Advantage:
-
Widely Usage
-
Package:
-
Wooden Case
Quick Details
-
Application:
-
Compost Fermentation
-
Production Capacity:
-
1-20ton
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
TONGDA
-
Voltage:
-
380-460V 3 phases
-
Weight:
-
500 KG, As per model of machine
-
Dimension(L*W*H):
-
Loading with a 20GP container/set
-
Features:
-
Remote control operation, Self-propelled
-
Material:
-
Steel
-
Walking Power:
-
3kw
-
Color:
-
Customised
-
Turning Width:
-
6000mm
-
Function:
-
Compost material turning
-
Raw Material:
-
Organic waste, animal manure, food waste
-
Advantage:
-
Widely Usage
-
Package:
-
Wooden Case
|
Model |
Motor Power(kw) |
Working Speed(m/h) |
Unload Speed(m/h) |
Turning Width(mm) |
Max Turning Height(mm) |
|
TDCFD-3000 |
18.5 |
50 |
100 |
3000 |
1000 |
|
TDCFD-4000 |
22 |
50 |
100 |
4000 |
1200 |
|
TDCFD-5000 |
22*2 |
50 |
100 |
5000 |
1500 |
|
TDCFD-6000 |
30*2 |
50 |
100 |
6000 |
1500 |
|
TDCFD-8000 |
37*2 |
50 |
100 |
8000 |
1800 |
Product introduction
1. Groove type compost turner is usually called rail type compost turner, track type compost turner, turning machine etc.
2. It can be used for fermentation of livestock manure, sludge and garbage, filter mud from sugar mill, worse slag cake and straw sawdust and other organic waste.
3. The machine is widely used in organic fertilizer plant, compound fertilizer plant, sludge and garbage plant,horticultural farm and bisporus plant for fermentation and the removal of water.
4. The groove type compost turner produced by our company has 3 national patents.
5. The spans can be between 3 and 12 meters and the height can be 0.8-1.8 meters.
6. We have double-groove type and half-groove type to meet the customer's different needs.
Performance characteristics
1. Automatic control. The centralized control of the control cabinet can realize manual or automatic control functions.
2. It is suitable for aerobic fermentation, and can be used in conjunction with solar fermentation chamber, fermentation tank and moving machine.
3. The teeth extraction is firm and durable. It has a certain ability to break and mix materials.
Working principle
1. Groove type fermentation compost turner is an equipment widely used for organic fertilizer fermentation and compost.

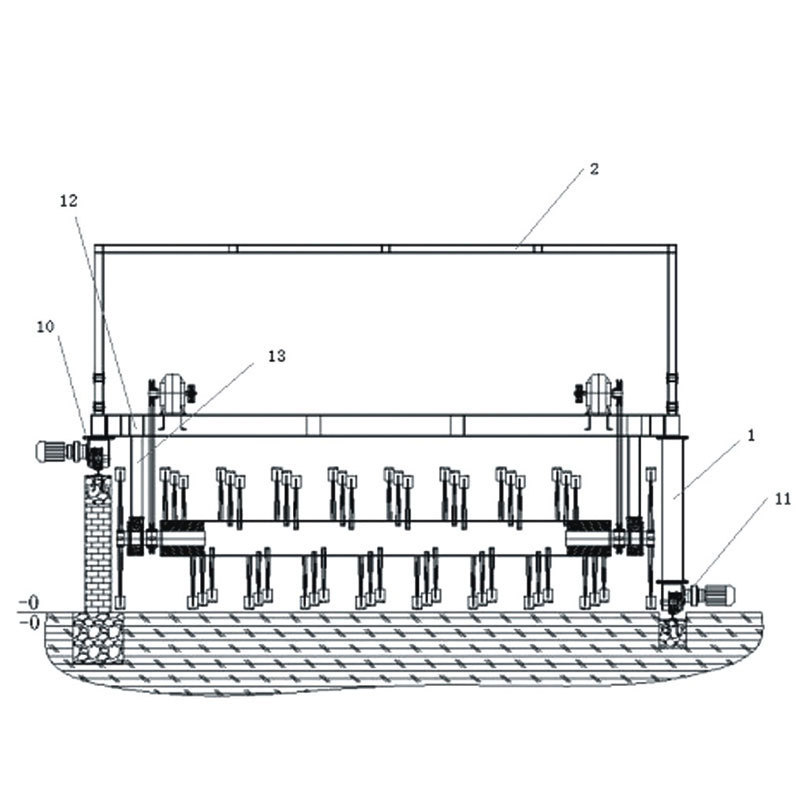

2. It consists of gear, lifting device, walking device and transfer vehicle (mainly used as multi-groove)etc. Motor directly drives the cycloidal reducer which drives the turning roller via the sprocket.
3. The impellers with spiral shape can flip and stir the organic materials 0.7-1 meter away in the fermentation tank, which makes an evenly materials- turning, well air-contact, and fast-speed and short-period fermentation.
4. The composting and turning process of fermentation materials can be controlled automatically. By the action of vertical and horizontal walking devices, the materials are flipped continuously and progressively. After being thrown up to the highest point, materials fall down to the fermentation tank again. This is a continuous aerobic fermentation progress.
5. Our groove type hydraulic compost turner has almost the same working principle with non-hydraulic compost turner. Customers can choose whichever they like at will.
