Quick Details
-
Brand Name:
-
HECHA
-
Fork Length:
-
1220mm
-
Fork Width:
-
120mm
-
Overall Dimensions:
-
5500x2200x2600mm
-
Weight (KG):
-
12510 kg
-
Product Name:
-

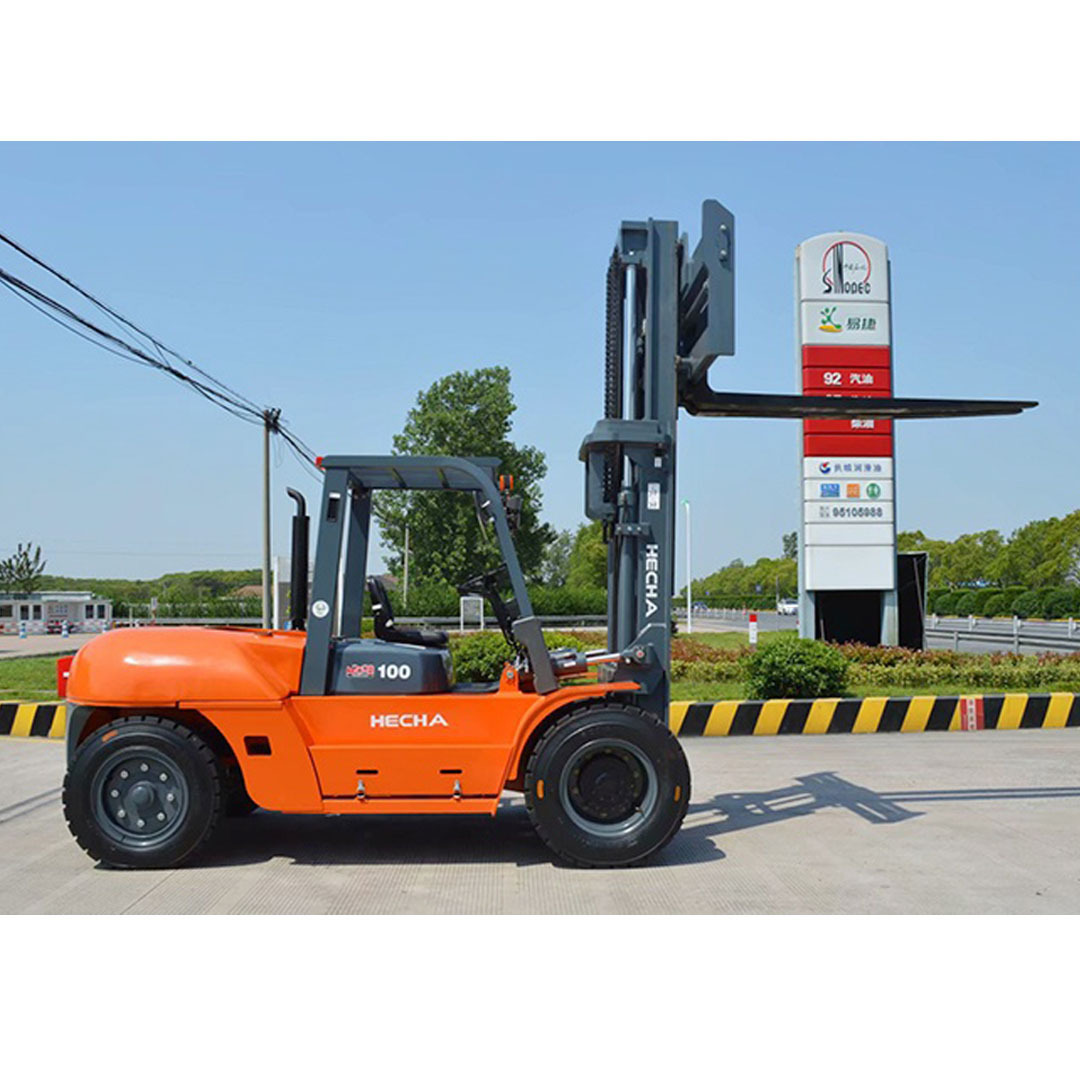

HECHA Heavy Duty 10 Ton Diesel Forklifts with Positioner
-
Engine:
-
XinChai /Isuzu / Mitsubishi Engine
-
Power type:
-
Diesel Power
-
Transmission:
-
Manual Transmission / Automatic Transmission
-
Loading Capacity:
-
1000kg
-
Mast Type:
-
Duplex Mast / Triplex Mast
-
Lifting Height:
-
3M~6.5M
-
Guarantee Terms:
-
12 months or 2000 working hours
-
Weight:
-
12510KGS
-
Optional:
-
Side Shifter / Solid Tyre / Fork Positioner / Attachment / etc
-
Marketing Type:
-
Hot Product 2022
Quick Details
-
Min. Lifting Height:
-
3M
-
Warranty:
-
1 Year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HECHA
-
Fork Length:
-
1220mm
-
Fork Width:
-
120mm
-
Overall Dimensions:
-
5500x2200x2600mm
-
Weight (KG):
-
12510 kg
-
Product Name:
-
HECHA Heavy Duty 10 Ton Diesel Forklifts with Positioner
-
Engine:
-
XinChai /Isuzu / Mitsubishi Engine
-
Power type:
-
Diesel Power
-
Transmission:
-
Manual Transmission / Automatic Transmission
-
Loading Capacity:
-
1000kg
-
Mast Type:
-
Duplex Mast / Triplex Mast
-
Lifting Height:
-
3M~6.5M
-
Guarantee Terms:
-
12 months or 2000 working hours
-
Weight:
-
12510KGS
-
Optional:
-
Side Shifter / Solid Tyre / Fork Positioner / Attachment / etc
-
Marketing Type:
-
Hot Product 2022
Product Overview
HECHA Automatic Transmission Heavy Duty 10 Ton Diesel Forklifts with Positioner
Meeting the paper roll industry's need for damage free roll handling with maximum efficiency, HECHA offers a full line of paper roll clamps and roll clamp damage reduction options to handle paper rolls regardless of diameter, weight or type of paper. For paper roll handling of every size, in industries from stevedoring to printing.
PRODUCT SPECIFICATIONS
|
HECHA Automatic Transmission Heavy Duty 10 Ton Diesel Forklifts with Positioner
|
Item
|
Data
|
|
|
|
|
|
|
||||||||
|
Characteristics
|
Power
|
37.5KW
|
|
|
|
|
|
|
||||||||
|
1.1
|
Model Name
|
|
FD25
|
FD30
|
FD35
|
FD40
|
FD45
|
FD50
|
||||||||
|
1.2
|
Power Source
|
|
Diesel
|
Diesel
|
Diesel
|
Diesel
|
Diesel
|
Diesel
|
||||||||
|
1.3
|
Rated Capacity
|
kg
|
2500
|
3000
|
3500
|
4000
|
4500
|
5000
|
||||||||
|
1.4
|
Load Center
|
mm
|
500
|
500
|
500
|
500
|
500
|
500
|
||||||||
|
Dimensions
|
|
|
|
|
|
|
|
|
||||||||
|
2.1
|
Mast Extended Height(with brackrest)
|
mm
|
4060
|
4275
|
4270
|
4250
|
4250
|
4250
|
||||||||
|
2.2
|
Lifting Height
|
mm
|
3000
|
3000
|
3000
|
3000
|
3000
|
3000
|
||||||||
|
2.3
|
Mast Height, Lowered
|
mm
|
2060
|
2080
|
2125
|
2350
|
2350
|
2350
|
||||||||
|
2.4
|
Free Lift Height
|
mm
|
140
|
145
|
150
|
150
|
150
|
150
|
||||||||
|
2.5
|
Brackrest Height cauculatedfrom the fork surface)
|
mm
|
1010
|
1225
|
1220
|
1250
|
1250
|
1250
|
||||||||
|
2.6
|
Distance from the surface of the seat to the overhead guard
|
mm
|
1035
|
1035
|
1035
|
1020
|
1020
|
1020
|
||||||||
|
2.7
|
Overhead Guard Height
|
mm
|
2090
|
2106
|
2106
|
2350
|
2350
|
2350
|
||||||||
|
2.8
|
Overall Length(without forks)
|
mm
|
2550
|
2690
|
2725
|
3195
|
3195
|
3195
|
||||||||
|
2.9
|
Overall Length(with forks)
|
mm
|
3620
|
3760
|
3795
|
4265
|
4265
|
4265
|
||||||||
|
2.10
|
Fork Overhang
|
mm
|
435
|
465
|
465
|
555
|
555
|
555
|
||||||||
|
2.11
|
Wheel Base
|
mm
|
1600
|
1700
|
1700
|
2100
|
2100
|
2100
|
||||||||
|
2.12
|
Real Overhang
|
mm
|
515
|
525
|
560
|
540
|
540
|
584
|
||||||||
|
2.13
|
Min. Ground Clearance(from bottom of mast)
|
mm
|
128
|
145
|
145
|
175
|
175
|
175
|
||||||||
|
2.14
|
Overall Width
|
mm
|
1150
|
1225
|
1225
|
1420
|
1420
|
1420
|
||||||||
|
2.15
|
Lateral Fork Adjustment(Outside of Fork) (max./min.)
|
mm
|
1024/
240 |
1091/250
|
1091/250
|
1340/300
|
1340/300
|
1340/300
|
||||||||
|
2.16
|
Front Tread
|
mm
|
970
|
1000
|
1000
|
1180
|
1180
|
1180
|
||||||||
|
2.17
|
Rear Tread
|
mm
|
970
|
970
|
970
|
1190
|
1190
|
1190
|
||||||||
|
2.18
|
Min. Turing Radius(Outside)
|
mm
|
2240
|
2420
|
2470
|
2600
|
2900
|
2900
|
||||||||
|
2.19
|
Tilt of Mast Forward(deg)/ Backward(deg) a/β
|
°
|
6/12
|
6/12
|
6/12
|
6/12
|
6/12
|
6/12
|
||||||||
|
2.20
|
Fork Size
|
mm
|
1070*
120* 40 |
1070*125*
45 |
1070*125*
50 |
1070*150*
50 |
1070*150*
50 |
1070*150*
50 |
||||||||
|
Specification
|
|
|
|
|
|
|
|
|
||||||||
|
3.1
|
Travel Speed(laden/unladen)
|
km/h
|
17/
19.5 |
18/
19.5 |
18/
19.5 |
22/
22.5 |
22/
22.5 |
22/
22.5 |
||||||||
|
3.2
|
Lifting Speed(laden/unladen)
|
mm/s
|
570/
600 |
450/
500 |
380/
450 |
370/
400 |
370/
400 |
460/
500 |
||||||||
|
3.3
|
Self Weight
|
kg
|
3680
|
4370
|
4750
|
5950
|
6200
|
6400
|
||||||||
Mast Types for Optionals:
2-stage Mast
2-stage Free Lifting Mast
3-stage Free Lifting Mast
