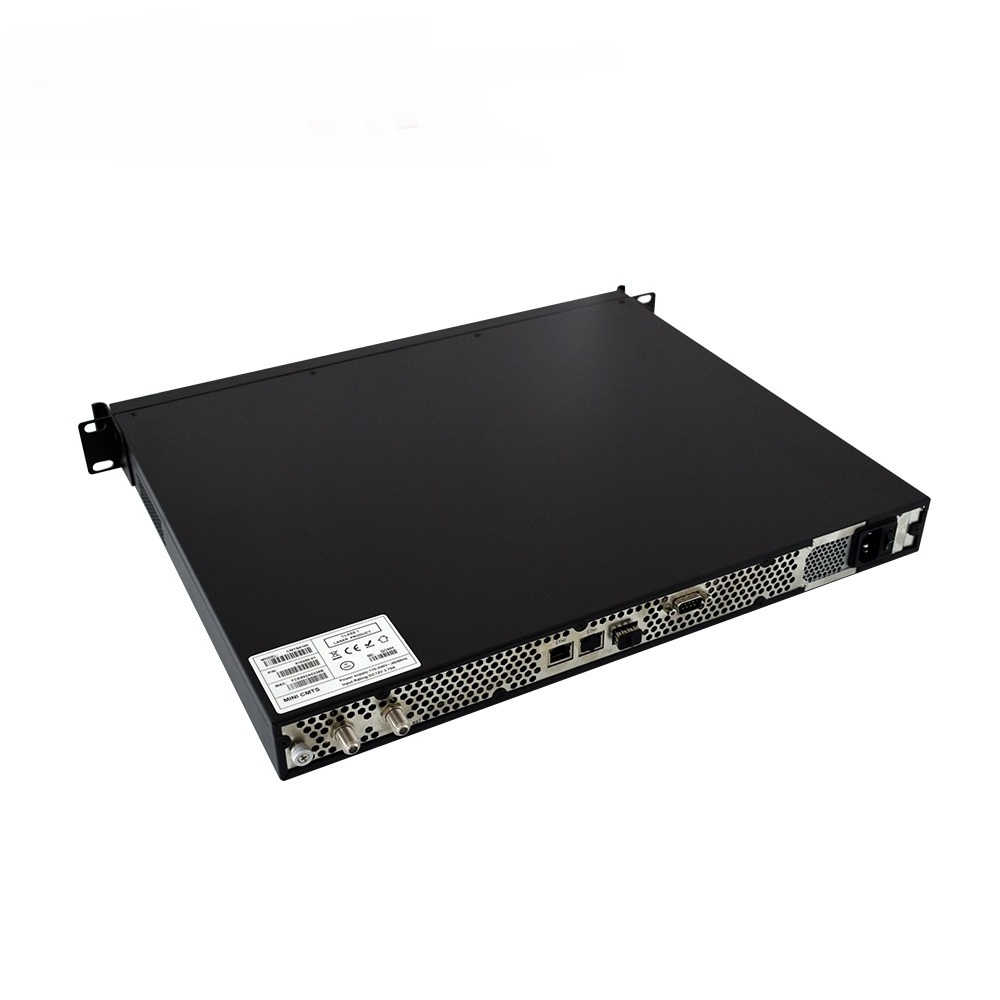

DOCSIS mini CMTS ethernet over coax solution cable modem digital catv headend equipment
The 1 RU chassis MiniCMTS product follow DOCSIS 3.0 standard ,Using the full DOCSIS3.0, MiniCMTS and user device fits international DOCSIS standard, effectively meet the technical standard of future DOCSIS. This product support 16 downstream channels to 800Mbps; 4 upstream channels to 160Mbps, fulfilling the broadband accessing of 960Mbps. It can support 511 Cable Modems online simultaneously, fully compatible with the
DOCSIS2.0, 3.0 Cable Modem. This device deployed in front end, and completely instead of 1 RU CMTS.
The next generation DOCSIS3.0 network uses this, mixing the advantage of broadcasting and flexible data interactive about IP net, to promote the value of broadcasting HFC net, is the "trump card" of the Broadcasting accessing reform.
8 advantages
- High standardized MiniCMTS series product fully compatible of DOCSIS standard, also can compatible with DOCSIS2.0/DOCSIS3.0 Cable Modem.
- High bandwidth Highest to support 4 upstream QAM channels, bandwidth to 160Mbps; 16 downstream QAM channels, bandwidth to 800Mbps, total bandwidth to 960Mbps.
- High Qos guarantee DOCSIS can offer the high request of Qos guarantee, depend to fulfill the business of Voicing Qos request.
- Support IPQAM function Through the configuration, 16 downstream channels of DB-CMTS can be configurated to 8 downstream channels used in data business which can be used to IPQAM VOD. As this time, the downstream bandwidth of DB-CMTS8100 is 400Mbps, used in IPQAM VOD bandwidth is up to 400Mbps. Meet the large scale of VOD, especially the HD VOD.
- Achieve OLT and MTCS unified management. It is no need setting for installation and replacement. The equipment can auto complete configuration process when power up.
- 3 in1 product, integrated solution. To meet the individual needs of customers optional built-in optical receiver module, ONU module, IPQAM module. Realize optical node integrated type solution.
- Perfect web management. B/S frame, graphical interfaces, fault alarm, convenient operation and maintenance.
- Low cost: The transforming cost is almost 30%- 50% than big CMTS, equal to EPON+EOC.
-
19 inch standard 1U machine-case design
-
1 SFP interface and 2 RJ45 ports
-
1 100M LAN management interface
-
1 RF US and 1 RF DS, separately
-
Support built in IPQAM module
-
4 channels QAM US, bandwidth is 160Mbps, 16 channels QAM DS,bandwidth is 800Mbps.
-
Maximum output signal is 105dbuv
-
Power supply is 220V/110V, less than 40W
-
Upstream frequency range: 5-65Mhz
-
down stream frequency range: 87~1000Mhz
-
passed the EU CE&RoHS certification
TECHNICAL SPECIFICATIONS
DS channel specification
QAM standard: Annex A,B, C
QAM modulation : 64QAM,256QAM
Uni-channel speed : 36M@64QAM, 51M@256QAM
DS channels : 16
DS maxi speed : 800Mbps
Work frequency : 87Mhz - 1000Mhz
Channel bandwidth : 6 or 8Mhz
Input power : 50dbmv(8 channels); 45dbmv(16 channels)
Power adjusted step : 0.5db
Post MER : 42db
External noise : <-20dbm
US channel specification
US channels: 4
US modulation : QFSK,16QAM,64QAM
Uni-channel speed : 0.32Mbps - 40Mbps
US maxi speed : 160Mbps
Input frequency range : 5Mhz - 65Mhz
Input level range : -13dbmv ~ 23dbmv
RF output specification
RF IN interface : F connector,75
RF IN quantity : 1xRF up
RF OUT interface : F,75
RF OUT amount : 1xRFdown
Data interface specification
Net port speed : 10/100/1000Mbps
Net port type : 2 RJ45, 1 SFP
Full speed support Support
Built-in ONU module : Not support
Management specification
RS232 Serial : Support
Command line(CLI) Support
Telnet or SSH Support
SNMPv1,v2,v3 Support
DOCSIS MIBs Support
Other functions
Maxi CM amount : 500
Dynamic load balance : Support
DHCP relay option82,option60
Qos Support
VLAN process Support
Environment
Work temperature : -25℃ - 75℃
humidity : 10% - 90%
Alone supply : 90 - 264V
Power : <35w
60V centralized supply Not support
Size(mm) : 483×410×43
