A
s an experienced metal tube supplier, specialized in titanium tubes, aluminum tubes, stainless steel tubes, and also can supplythe whole production line for factory.
O
ne is committed to the production of GR1 GR2 GR9 titanium seamless tube, especially in the production of GR9 titanium seamlesstube has the advantage of price and delivery time.
O
ne is committed to the production of 6000 series and 7000 series aluminum tube, especially in the production of 7001, 7005, 7075 aluminum tent pole pipe and arrow tube has many advantages.
O
ne is committed to the production of stainless steel seamless and welded pipe, especially in the production ofvarious kinds ofmedical stainless steel capillary pipe.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
Titanium tube
-
Material:
-
titanium
-
Outer Diameter:
-
3mm - 200mm
-
Length:
-
<6000mm
-
Application:
-
Industrial
-
Grade:
-
Gr1,Gr2,Gr3,Gr5,Gr7,Gr9,Gr12,Gr16
-
Wall Thickness:
-
0.2-25mm
-
Inside Diameter:
-
2.5~150mm
-
Product Name:
-
Titanium Tube
-
Type:
-
Round Titanium Tube
-
Surface:
-
Polished
-
Shape:
-
Customer's Requirement
-
Processing:
-
Rolling Drawing Process
-
Price Term:
-
CIF CFR FOB EX-WORK
-
Certificates:
-
ISO9001:2008
-
Tolerance:
-
customized
-
Payment:
-
T/T
-
MOQ:
-
100KG
Quick Details
-
Standard:
-
ASTM B338 B337 B861 B862
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Channel
-
Model Number:
-
Titanium tube
-
Material:
-
titanium
-
Outer Diameter:
-
3mm - 200mm
-
Length:
-
<6000mm
-
Application:
-
Industrial
-
Grade:
-
Gr1,Gr2,Gr3,Gr5,Gr7,Gr9,Gr12,Gr16
-
Wall Thickness:
-
0.2-25mm
-
Inside Diameter:
-
2.5~150mm
-
Product Name:
-
Titanium Tube
-
Type:
-
Round Titanium Tube
-
Surface:
-
Polished
-
Shape:
-
Customer's Requirement
-
Processing:
-
Rolling Drawing Process
-
Price Term:
-
CIF CFR FOB EX-WORK
-
Certificates:
-
ISO9001:2008
-
Tolerance:
-
customized
-
Payment:
-
T/T
-
MOQ:
-
100KG
Channel.
Products Description

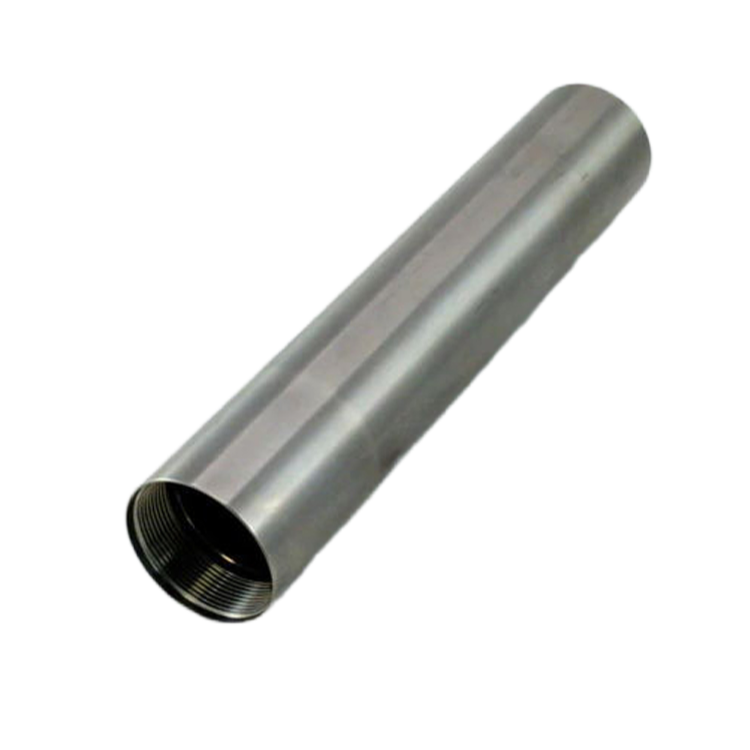

Titanium Tubes / Titanium Pipes.
The titanium tube is light in weight, high in strength and superior in mechanical properties. It is widely used in heat exchange
equipment, such as tube and tube heat exchangers, coil heat exchangers, serpentine tube heat exchangers, condensers, evaporators
and transportation pipelines. Many nuclear power industries use titanium tubes as standard tubes for their units.
equipment, such as tube and tube heat exchangers, coil heat exchangers, serpentine tube heat exchangers, condensers, evaporators
and transportation pipelines. Many nuclear power industries use titanium tubes as standard tubes for their units.
Product Applications
Titanium – Aerospace Applications
Automotive Industry
Titanium – Consumer and Architectural Applications
Titanium – Medical Applications
Stainless steel chair pipe.
Ocean engineering
Product Paramenters
|
Name
|
Titanium Tube & Pipe
|
|
|
|
|||
|
Standard
|
ASTM B338/ASME SB338, ASTM B337/ASME SB337, ASTM B861/ASME SB861, ASTM B862/ASME SB862,AMS4911,AMS4928
|
|
|
|
|||
|
Material Grade
|
Gr1, Gr2, Gr4, Gr7, Gr9, Gr11, Gr12, etc
|
|
|
|
|||
|
Length
|
≤14000mm
|
|
|
|
|||
|
Size(mm)
|
Diameter 3-508mm
|
|
|
|
|||
|
Section shape
|
Round / Square
|
|
|
|
|||
|
Tolerance
|
a) Outer Diameter: +/- 0.01mm
b) Thickness: +/- 0.01mm
c) Length: +/- 0.1mm |
|
|
|
|||
|
Surface
|
Pickling, annealing, polishing, bright.
|
|
|
|
|||
|
Feature
|
1.Low Density and High Strength
2.Excellent Corrosion Resistance 3.Good resistance to effect of heat 4.Excellent Bearing to cryogenic property 5.Nonmagnetic and Non-toxic 6.Good thermal properties 7.Low Modulus of Elasticity |
|
|
|
|||
|
Test
|
Squash test, extended test, water pressure test, crystal rot test, heat treatment, NDT
|
|
|
|
|||
Product packaging
Normal package.
Plywood case.
Carton box package.
Manufacturing Technique
Titanium Tubes Production Process:
A method for producing and processing titanium tubes, the processing method is as follows:
Step 1: Forging the titanium ingot into a tube blank, and performing surface treatment on the tube blank;
Step 2: After the surface treatment, the tube blank is rolled into a titanium tube for the first time, and the oil is removed after the first rolling;
Step 3: Carry out the first pickling
after degreasing, wash the titanium tube after pickling, dry it after washing, annealing after drying, and straighten the titanium tube after annealing;
after degreasing, wash the titanium tube after pickling, dry it after washing, annealing after drying, and straighten the titanium tube after annealing;
Step 4: Pickling the titanium tube again. After the pickling, rinse the titanium tube, dry the titanium tube
after washing, and then roll the titanium tube for the second time after drying. The rolled titanium tube The finished product is degreasing, pickling after degreasing, washing the titanium tube after pickling, washing and drying, annealing after drying, and straightening the titanium tube after annealing;
after washing, and then roll the titanium tube for the second time after drying. The rolled titanium tube The finished product is degreasing, pickling after degreasing, washing the titanium tube after pickling, washing and drying, annealing after drying, and straightening the titanium tube after annealing;
Step 5: Pickling the titanium tube after straightening, repeat the above steps, and obtain the finished product after six times of rolling.
Recommend Products
Aluminium tube.
Aluminium tent pole.
Aluminium telescopic pole.
Stainless steel tube.
Stainless steel capillary tube.
Stainless steel sensor tube.
Titanium tube.
Titanium plate.
Titainium bar.
Why Choose Us
Zhangjiagang Channel int'l Co, LTD
Zhangjiagang Channel int'l Co, LTD is located the East of economically developed region-- Zhangjiagang city Jiangsu province.Our company has two departments-technical & producing department and trade department. in titanium materials and stainless steel products research and development, production and marketing sevices.
Factory description.
Company production factory is located in the suburbs, now has a staff of 200 people, plant area of 100000 square meters, Company sales in the export sector, zhangjiagang Channel intl co.Itd in urban areas, the existing staff 10 to 20 people.
Certificates
Exhibitions
FAQ
Q. Are you a factory or trading company?
A. We are a factory company.
Q. How to ensure the quality of your products?
A. IS09000, client requirements, product standards, strict inspection to control raw material,production process and final
products
Q. How do you resolve the problem about your products?
A. Person of aging services: For customer complaints commissioner set up a special complaint handling,complaint issues
recorded the first time and find the relevant person in charge of the feedback and resolve. Details check our "Quality
corrective action report"
Q. What is the MOQ?
A. Sample order is acceptable, And some samples can be free.
Q. How long do you need the delivery time?
1)Supply within 5-10 days (product in our Stock list)
2)Custom products need to be calculated according to the quantity
Q.What 's your payment terms?
A. T/T,L/C at sight , Western Union
Q.How can we get your price ?
A. We need below information to quote for you:
1. Product Name
2. Standard
3. Material Grade (Chemical Composition)
4. Dimension
5. Quantity
6. The Drawing for Special Parts
A. We are a factory company.
Q. How to ensure the quality of your products?
A. IS09000, client requirements, product standards, strict inspection to control raw material,production process and final
products
Q. How do you resolve the problem about your products?
A. Person of aging services: For customer complaints commissioner set up a special complaint handling,complaint issues
recorded the first time and find the relevant person in charge of the feedback and resolve. Details check our "Quality
corrective action report"
Q. What is the MOQ?
A. Sample order is acceptable, And some samples can be free.
Q. How long do you need the delivery time?
1)Supply within 5-10 days (product in our Stock list)
2)Custom products need to be calculated according to the quantity
Q.What 's your payment terms?
A. T/T,L/C at sight , Western Union
Q.How can we get your price ?
A. We need below information to quote for you:
1. Product Name
2. Standard
3. Material Grade (Chemical Composition)
4. Dimension
5. Quantity
6. The Drawing for Special Parts
