Quick Details
-
Product Weight（kg）:
-
0.2
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SUNRICHER
-
Connection Mode:
-
Wiring
-
Product name:
-

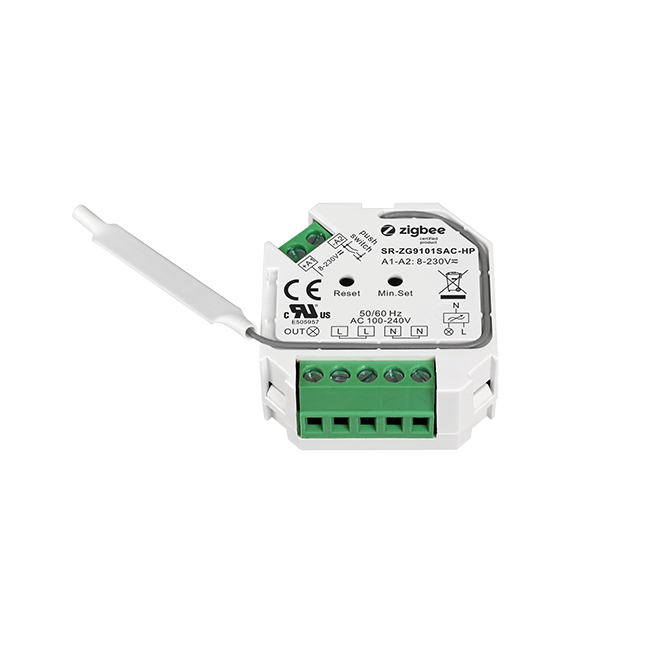

ZigBee Phase Dimmer
-
Output Current:
-
1.8A max.
-
Output power:
-
400W max.
-
Features:
-
Dim, AC push
-
Protocol:
-
ZIGBEE3.0
-
Function:
-
Dimmable;Switch
-
Transmission Frequency:
-
2.4GHz
-
Channel:
-
1
-
Size:
-
45.5*45*20.3mm
-
IP Rating:
-
IP20
Quick Details
-
Warranty(Year):
-
5-Year
-
Type:
-
Phase Dimmer
-
Max. Load Power:
-
400W
-
Product Weight（kg）:
-
0.2
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SUNRICHER
-
Connection Mode:
-
Wiring
-
Product name:
-
ZigBee Phase Dimmer
-
Output Current:
-
1.8A max.
-
Output power:
-
400W max.
-
Features:
-
Dim, AC push
-
Protocol:
-
ZIGBEE3.0
-
Function:
-
Dimmable;Switch
-
Transmission Frequency:
-
2.4GHz
-
Channel:
-
1
-
Size:
-
45.5*45*20.3mm
-
IP Rating:
-
IP20
• ZigBee phase dimmer, based on the latest Zigbee 3.0 protocol.
• 100-240VAC wide-voltage input and output.
• Support resistive and capacitive loads.
• 1 channel load output, up to 400W.
• The input and output wiring modes are screw terminals, which are safe and reliable.
• Leading edge/trailing edge are available for choosing. The default version is trailing edge dimming.
• The switch and brightness of the connected thyristor dimming LED lamp or power supply can be controlled.
• Zigbee terminal devices that support touchlink configuration.
• Pairing directly with a compatible Zigbee remote via Touchlink, no gateway required.
• Supports self-forming zigbee network without coordinator and add other devices to the network .
• Support to bind a Zigbee remote in find and bind mode.
• Supports Zigbee Green Power and can be bound to up to 20 Green Power switches.
• Compatible with mainstream Zigbee gateway products in the market.
• Push switch with 8-230V input can be used for control.
• Small size, easy to fit into a standard wall cartridge.
• Wireless transmission frequency: 2.4GHz.
• Waterproof rating: IP20
