Quick Details
-
Application:
-
Office Building
-
Design Style:
-
Modern
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
Clip In Ceiling System
-
Material:
-
Aluminum
-
Shape:
-
Sqaure
-
Style:
-
Clip-in
-
Product name:
-
Aluminum Metal Ceiling
-
Surface:
-
Powder Coating
-
Features1:
-
Waterproof
-
Features2:
-
Fireproof
-
Features3:
-
Soundproof
-
Color:
-
Customer Require
Quick Details
-
Warranty:
-
5 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation, Others, CAD
-
Application:
-
Office Building
-
Design Style:
-
Modern
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
Clip In Ceiling System
-
Material:
-
Aluminum
-
Shape:
-
Sqaure
-
Style:
-
Clip-in
-
Product name:
-
Aluminum Metal Ceiling
-
Surface:
-
Powder Coating
-
Features1:
-
Waterproof
-
Features2:
-
Fireproof
-
Features3:
-
Soundproof
-
Color:
-
Customer Require

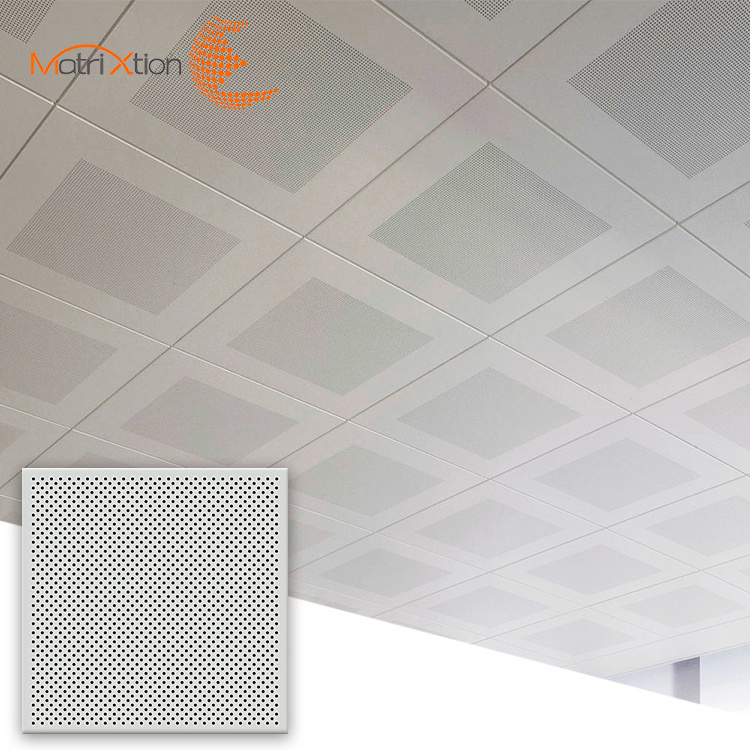

Aluminum Ceiling tiles
Aluminum Ceiling:
Metal ceilings from Matrixtion are characterised by precise standards of finish and by the fact that they can be used universally. We offer standardised classic metal ceilings as well as individual design ceilings and project solutions. With optional additional features, our metal ceilings can be adapted to meet even more specific needs.
Order Details
|
Size Options
|
|
|
|
|
||||
|
300*300mm
|
300×450mm
|
300×600mm
|
300×1200mm
|
|
||||
|
400×400mm
|
500×500mm
|
600×600mm
|
600*1200mm
|
|
||||
|
Thickness
|
|
|
|
|
||||
|
0.5mm
|
0.6mm
|
0.7mm
|
0.8mm
|
|
||||
|
0.9mm
|
1.0mm
|
1.2mm
|
1.5mm
|
|
||||
|
Edge Height
|
|
|
|
|
||||
|
15mm
|
19mm
|
25mm
|
30mm
|
|
||||
|
Coating Options
|
|
|
|
|
||||
|
Tiger Powder
|
Akzonobel Powder
|
PVDF Powder
|
Regular
|
|
||||
Product Show
Clip In Ceiling System
Standard clip-in system consists of a concealed supporting structure where demountable tiles can be clipped into the triangular omega main runner. The grid system is not visible thus providing more aesthetical and plain view comparing to the standard visible grid system. All panels are singularly and independently demountable thus enabling easy and fast access above the ceiling
Lay In Ceiling System
Lay-in system is formed by allowing aluminium or galvanised steel panels lean on T15/24 or T15/24 channel grid system. This system
is also called as “semi-concealed” as runners are visible but there is a shadow effect. All panels are demountable manually
is also called as “semi-concealed” as runners are visible but there is a shadow effect. All panels are demountable manually
without any special tool so that the system enables fast and easy access to the ceiling void
.
Lay On Ceiling System
Lay-on system is formed by allowing aluminium or galvanised steel panels rest on T15/24 or T15/24 channel grid system. The runners
are visible and all panels are demountable manually without any special tool so that the system enables fast and easy access to
the ceiling void.
are visible and all panels are demountable manually without any special tool so that the system enables fast and easy access to
the ceiling void.
Style
Product packaging
|
Package Details
|
|
|
|
|||
|
Name Of The Product
|
Dimensions
|
Carboard Box Quantity
|
Volume
|
|||
|
clip in ceiling
|
600*600
|
30 piece = 10.8SQM
|
0.12 CBM
|
|||
|
clip in ceiling
|
300*300
|
136 piece = 12.24SQM
|
0.12 CBM
|
|||
|
clip in ceiling
|
300*600
|
58 piece = 10.44SQM
|
0.12 CBM
|
|||
|
clip in ceiling
|
300*1200
|
40 piece = 14.4SQM
|
0.16 CBM
|
|||
|
clip in ceiling
|
600*1200
|
20 piece = 14.4SQM
|
0.16 CBM
|
|||
Corner Protector
Carboard Box
Installation
