Quick Details
-
Model Number:
-
motorized valve proportional
-
Brand Name:
-
Tonhe
-
control current:
-
4-20mA
-
Certificate:
-
CE, Rohs, IP67
-
Body material:
-
plastic
-
Color:
-
Gray/Black/blue
-
Torque:
-
4N.M
-
Voltage:
-
9-24volt
-
Working current:
-
≤500MA
-
Open/close time:
-
≤7 Sec
-
Life Time:
-
70000
-
Product name:
-
4-20mA 5 wire modulating control electric motorized valve proportional
Quick Details
-
Port Size:
-
1" DN25
-
Warranty:
-
1 years
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
motorized valve proportional
-
Brand Name:
-
Tonhe
-
control current:
-
4-20mA
-
Certificate:
-
CE, Rohs, IP67
-
Body material:
-
plastic
-
Color:
-
Gray/Black/blue
-
Torque:
-
4N.M
-
Voltage:
-
9-24volt
-
Working current:
-
≤500MA
-
Open/close time:
-
≤7 Sec
-
Life Time:
-
70000
-
Product name:
-
4-20mA 5 wire modulating control electric motorized valve proportional

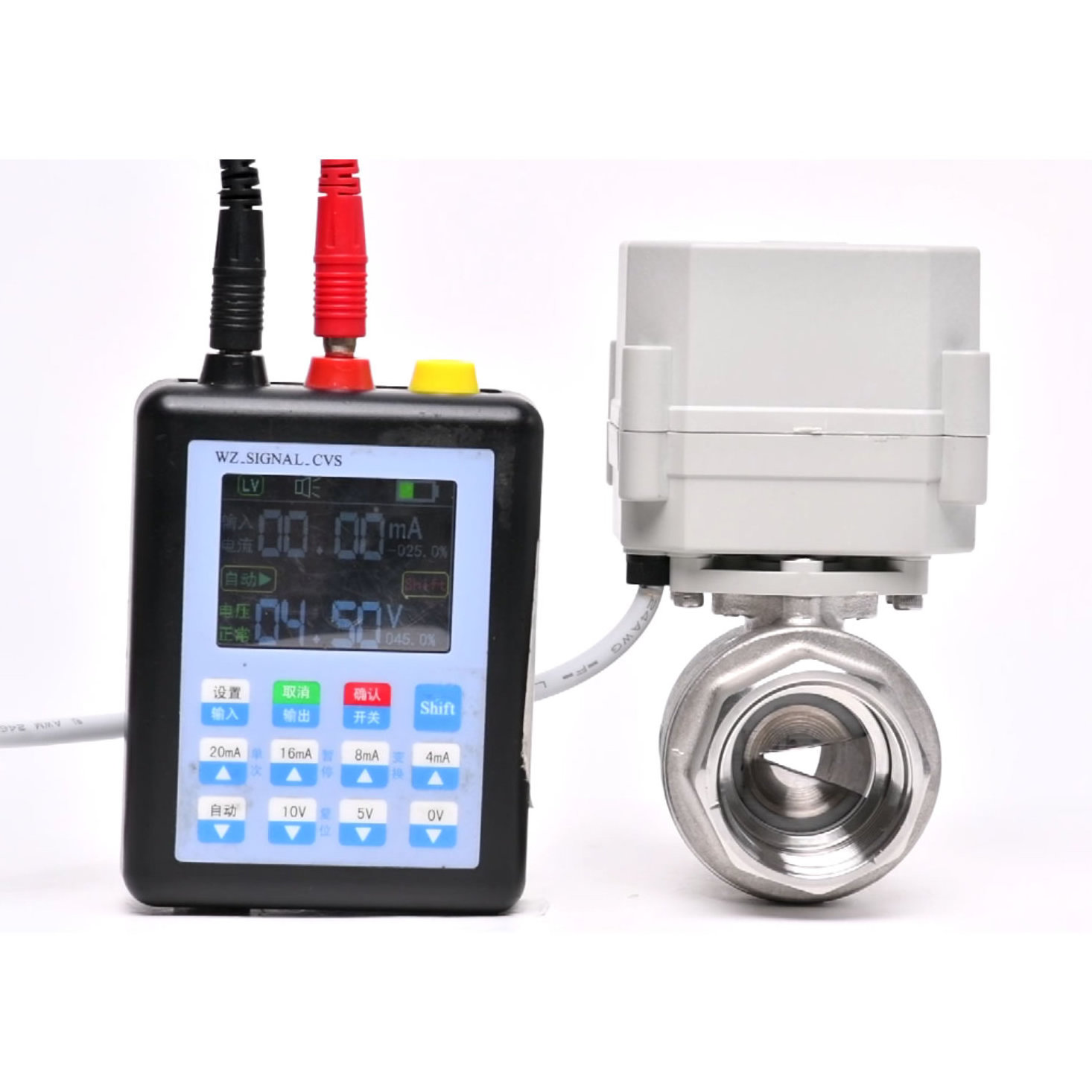

4-20mA 5 wire modulating electric motorized valve proportionate control 2 port valves
Technical Parameters
|
NPT/BSP 1 ” |
|
|
ball |
V-shaped |
|
Maximum workingpressure |
1. 0 MPa |
|
Circulation medium |
Fluid, air |
|
Rated voltage |
DC9-24V |
|
4-20mA , 0-5V , 0-10V |
|
|
Wiring control methods |
|
|
Make as your requirement, for example, 4 position, 5 position,etc. |
|
|
Open/close time |
≤ 7 S |
|
Life time |
10 0000 times |
|
Valve Body material |
Brass |
|
Actuator material |
Engineering Plastics |
|
S ealing material |
FKM & PTFE |
|
Actuator rotation |
90° |
|
Max. torque force |
4 N .M |
|
Cable Length |
0.5m 1.5m |
|
Environment temperature |
-15℃~ 6 0℃ |
|
Liquid temperature |
2℃~ 9 0℃ |
|
Manual override |
No |
|
Indicator |
Yes |
|
Protection class |
IP6 7 |
|
Certificate |
LVD, EMC,ROHS and SS304 valve passed NSF61-G |
|
Company passed |
ISO 9001:20 15 |
|
Locked-rotor Current |
500mA |
|
Locked-rotor Delay Time |
Wire Drawing b elow:
1, RD connect DC9-24V positive
2, BK connect DC9 ~ 24V-/ 4-20mA-/0-5V-/0-10V-
3 GR connect position input /control current +/ control voltage +(4-20mA, 0-5V, 0-10V)
4, YW connect ERR output ,OC output
5, WTconnectposition feedback ,OC output PWM signal
Application
Suitable conditions:
1. IC card water meters, heat energy meters, solar instrument.
2. The central air conditioning fan coil, fire sprinkler
3. Water saving irrigation, automatic control system, industrial mini automatic control equipment.
4. Agriculture Irrigation equipment
5. Drinking water equipment, Water heater, washing machine, AHW etc.
Pls confirm the above different versions of actuators
When you inquiry the valve, pls confirm the detail technical data :
1, valve size , materail
2, working voltage
3, wire control
4, valve manual override & indicator ( yes or no)
5, actuator cable length
Pre-sale service
1.We have full stock and can deliver within short time.
2.OEM and ODM order are accepted, Any kind of logo printing or design are available.
3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.
After you choose:
1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you at 1-2 working day after your payment
3. Email you the tracking no., and help to chase the parcels until it arrive you.
After-sale service
1.We are very glad that customers give us some suggestion for price and products.
2.If you have any question,please contact us freely by E-mail or Telephone.
TONHEV is a manufacture in China specilized in mini motorized shut off ball valve (1/4”~2’’).And valve actuator which are approved
CE certification and SS valve approved NSF61 international certification.
we buy a
PICC insurance for our products in 2016
. I belive they are more reliable and guaranteed for your customer or the user.
Our company also approved SGS ISO9001 in 2013 .
