Quick Details
-
Machine type:
-
Manual & Electronic
-
Model:
-
PC100,PC200, PC300,PC400
-
Pressure:
-
50, 60, 100, 200, 150 Ton
-
Pitch:
-
175mm 190mm 203mm 216mm 228mm
-
Application:
-
Track Link
-
Weight:
-
200-250KGS
-
Certification:
-
ISO9001:2000/GB/T24001-2004/OHSAS 18001:1999
-
Warranty time:
-
1 year
-
Part Name:
-

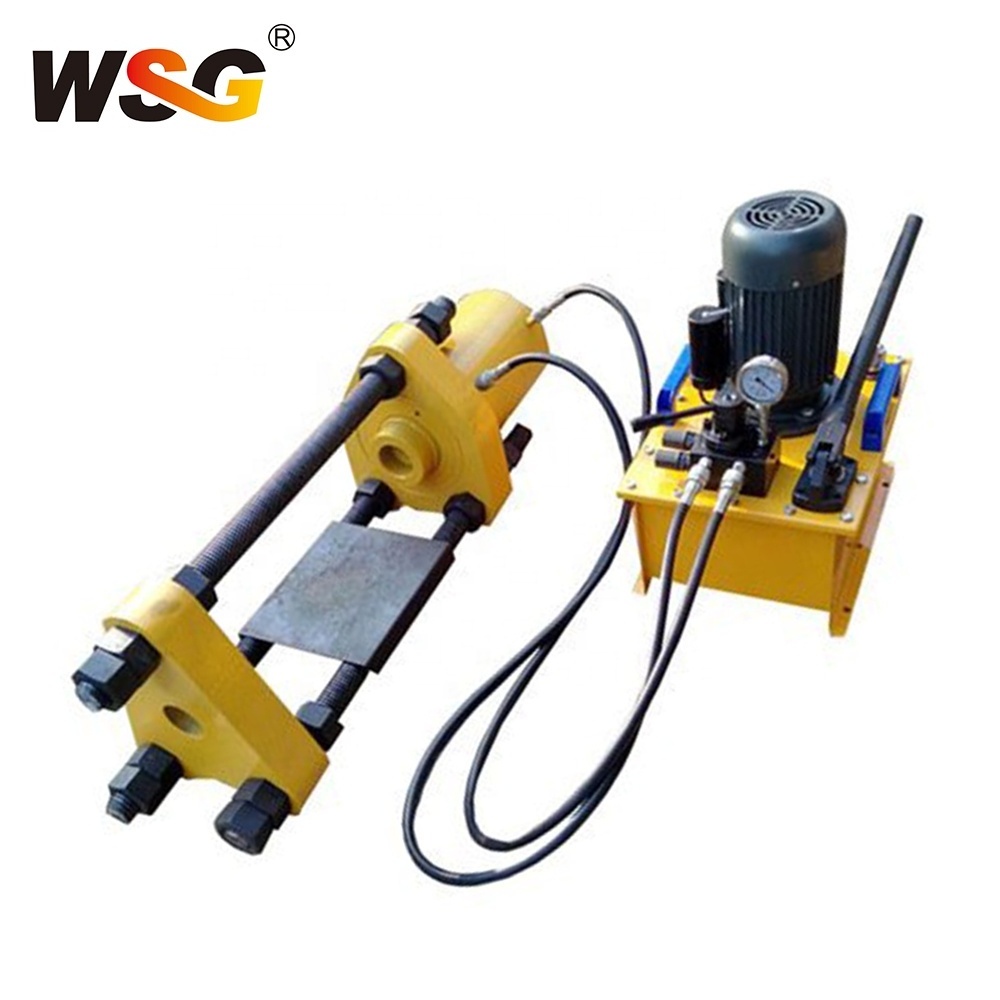

Portable press link machine
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
WSG
-
Brane Name:
-
WSG
-
Machine type:
-
Manual & Electronic
-
Model:
-
PC100,PC200, PC300,PC400
-
Pressure:
-
50, 60, 100, 200, 150 Ton
-
Pitch:
-
175mm 190mm 203mm 216mm 228mm
-
Application:
-
Track Link
-
Weight:
-
200-250KGS
-
Certification:
-
ISO9001:2000/GB/T24001-2004/OHSAS 18001:1999
-
Warranty time:
-
1 year
-
Part Name:
-
Portable press link machine
Product Description
| Product Name | Portable press link machine |
| Fit Link Pitch | 135,171,175,190,203,216,228mm |
| Type | Manual, Manual & Electronic |
| Colors | Black and yellow |
| Technique | Forging/Casting |
| Function | T rack repair, track pin puller |
| Certification | ISO9001-9002 |
| Warranty | 1 Year |
| Delivery Time | Within 10 days after contract established |
Hydraulic track presses are used for the removal or installation of the pins from the undercarriage tracks of excavators, bulldozers, tractors and similar track propelled machinery. High hydraulic pressures are required to force the pins which hold the modular plates, a portable hydraulic track field press (manual hydraulic or electric pump) is available for smaller machine tracks and larger fixed electrical machines are available for larger machinery tracks (suited for workshop).
Catalogue
More models please kindly contact us
| Type | Model | Fit for pitch (mm) | Fit machine example |
| Manual & Electronic Press link machine | WSG150-1E | 175,190 | PC100,PC200 |
| WSG150-2E | 175,190, 203 | PC100,PC200,PC300 | |
| WSG150- 3 E | 175,190, 203, 216 | PC100,PC200,PC300,PC350 | |
| WSG 200E | 175,190, 203, 216, 228 | PC100,PC200,PC300,PC350,PC400 | |
| Manual Press link machine | WSG150-1 | 175,190 | PC100,PC200 |
| WSG150-2 | 175,190, 203 | PC100,PC200,PC300 | |
| WSG150-3 | 175,190, 203, 216 | PC100,PC200,PC300,PC350 | |
| WSG 200 | 175,190, 203, 216, 228 | PC100,PC200,PC300,PC350,PC400 |
