Quick Details
-
Model Number:
-
SPX500
-
Material:
-
stainless steel
-
Mode:
-
vibration
-
Product Name:
-
Tuning Fork Level Switch
-
Tuning fork vibration frequency:
-
300±50Hz
-
Environmental humidity:
-
≤95%RH
-
Maximum liquid viscosity:
-
<1000mm2/s
-
Measured medium repose angle:
-
≥200
-
Pressure range:
-
≤1MPa
-
Shell protection class:
-
IP67
-
Process Connection:
-
Flange, Thread
-
Power supply:
-
24vdc 220vac
-
Accuracy:
-
±5mm
Quick Details
-
Warranty:
-
12 month
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
SENTEC
-
Model Number:
-
SPX500
-
Material:
-
stainless steel
-
Mode:
-
vibration
-
Product Name:
-
Tuning Fork Level Switch
-
Tuning fork vibration frequency:
-
300±50Hz
-
Environmental humidity:
-
≤95%RH
-
Maximum liquid viscosity:
-
<1000mm2/s
-
Measured medium repose angle:
-
≥200
-
Pressure range:
-
≤1MPa
-
Shell protection class:
-
IP67
-
Process Connection:
-
Flange, Thread
-
Power supply:
-
24vdc 220vac
-
Accuracy:
-
±5mm

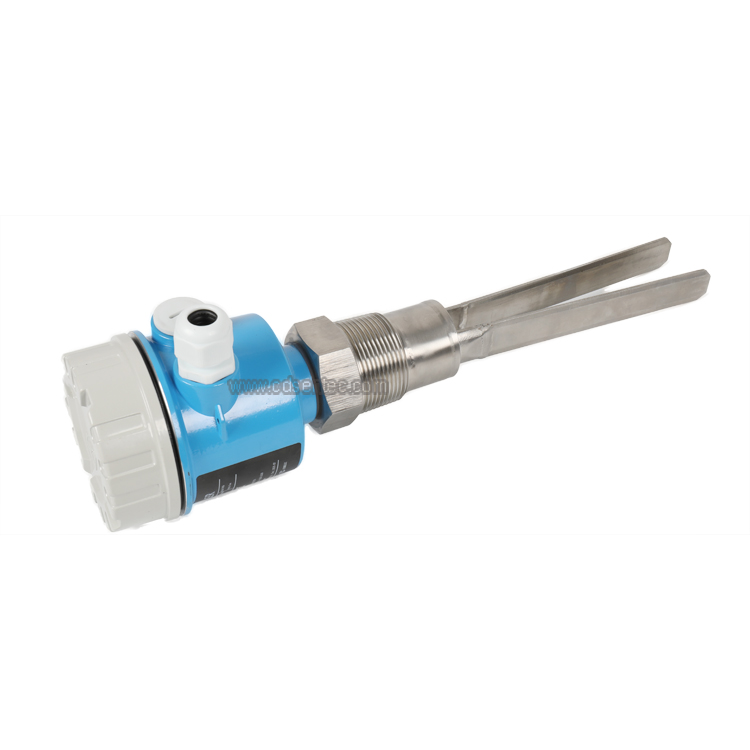

The tuning fork liquid level switch works by vibrating the tuning fork at a certain resonant frequency through a pair of piezoelectric crystals mounted on the tuning fork base. When the tuning fork of the tuning fork liquid level switch is in contact with the measured medium, the frequency and amplitude of the tuning fork will change. These changes of the tuning fork liquid level switch are measured by the intelligent circuit, processed and converted into a switching signal.
|
voltage
|
AC220V/DC24V
|
|
power
|
≤1W
|
|
Ambient temperature
|
Meter -30 ° C ~ 100 ° C
|
|
Work pressure
|
≤2Mpa
|
|
Media specific gravity
|
>0.6g/cm3
|
|
Action point
|
Insert vertically into the water about 25mm
|
|
Response time
|
About 1 second
|
|
output method
|
A set of relay outputs (3A/220VAC; 3A/30VDC)
|
|
Output delay
|
Adjustable from 1 to 50 seconds
|
|
Sensitivity
|
Adjustable according to materials, can be set to 10
|
|
Operating temperature
|
Fork body -30~150 °C (can accept high temperature custom)
|
|
Fork material
|
SUS304, SUS316, etc.
|
|
Connection method
|
Various standard threads, flanges, chuc
|
Packing&Shipping
1. Could I have prices of your products?
Welcome. Pls feel free to send us an email here. You will get our reply in 24 hours
2. Can we print our logo/website/company name on products?
Yes, please advise the size and Pantone Code of the logo.
3. What's the lead time for regular order?
3~7 days for order quantity lower than 500pcs, For more quantity, usually 15 days.
4. Can I get a discount?
Yes, for the order quantity more than 50pcs, please contact us to get the best price.
5. What is your MOQ?
The MOQ of most of our products is 1PCS. You can also contact us to get a lower low MOQ.
6. How to contact you?
Email/Skype: sales01(@)cdsentec.com, Tel/wechat/whatsapp: +86 18848456685
Welcome. Pls feel free to send us an email here. You will get our reply in 24 hours
2. Can we print our logo/website/company name on products?
Yes, please advise the size and Pantone Code of the logo.
3. What's the lead time for regular order?
3~7 days for order quantity lower than 500pcs, For more quantity, usually 15 days.
4. Can I get a discount?
Yes, for the order quantity more than 50pcs, please contact us to get the best price.
5. What is your MOQ?
The MOQ of most of our products is 1PCS. You can also contact us to get a lower low MOQ.
6. How to contact you?
Email/Skype: sales01(@)cdsentec.com, Tel/wechat/whatsapp: +86 18848456685
The specific price is subject to the parameters, please contact us for the quotation
