Quick Details
-
Mechanical Life:
-
50000 Cycles
-
Function:
-
On-off/ON-ON/ON-OFF-ON
-
Rating:
-
16A 250VAC / 20A 125VAC/6A 250VAC
-
Application:
-
Electric Equipment
-
Color:
-
Red Yellow Green Blue White
-
Led color:
-
Red Indicator Light White Backlight
-
Housing color:
-
Black\White\Customized
-
Material:
-
PA66
-
Voltage:
-
125VAC/250VAC
-
Terminal type:
-
Pin Terminals
-
Operating temperature:
-
25 ~+85
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ANHEDA
-
Model Number:
-
ROCKER SWITCH SSS
-
Mechanical Life:
-
50000 Cycles
-
Function:
-
On-off/ON-ON/ON-OFF-ON
-
Rating:
-
16A 250VAC / 20A 125VAC/6A 250VAC
-
Application:
-
Electric Equipment
-
Color:
-
Red Yellow Green Blue White
-
Led color:
-
Red Indicator Light White Backlight
-
Housing color:
-
Black\White\Customized
-
Material:
-
PA66
-
Voltage:
-
125VAC/250VAC
-
Terminal type:
-
Pin Terminals
-
Operating temperature:
-
25 ~+85
Product Description

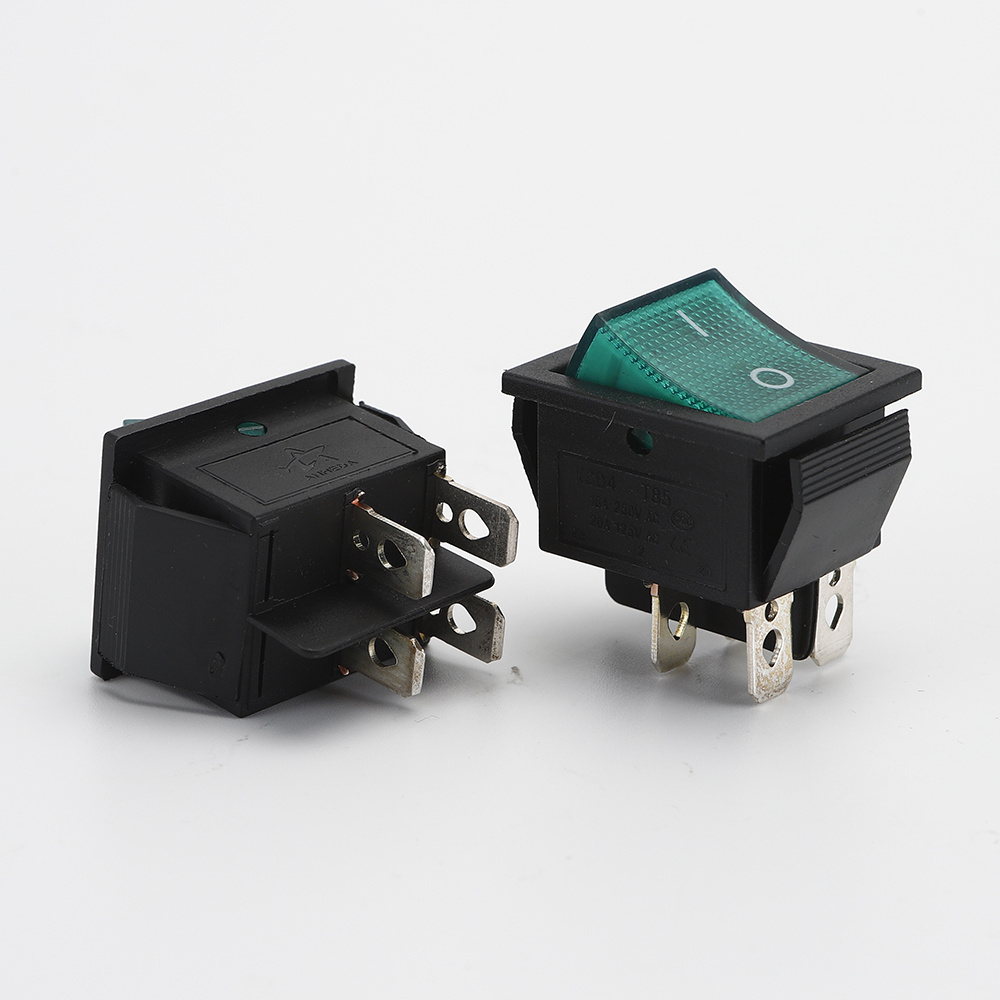

Anheda 16mm waterproof lamp filn 12v led seat blelt 16a 250v 6 pins rocker switch 1500vac/1min switches
Product details
| Function | SPST |
| Certificate | CQC,CE,ROHS |
| Lamp color | WhiteOrangeRedBlueGreen |
| Material | PA66/PC |
| Housing color | CUSTOM-MADE |
| Rating | 6A 250VAC~10A 125VAC |
| Led color | CUSTOM-MADE |
| Color | CUSTOM-MADE |
| Product type | rocker switch |
| Product Keywords | 16mm waterproof lamp filn 12v led seat blelt |
Features:
Quality assurance:
IQC, IPQC, PQC, OQC. Inspect for supplied material, production process and final product, including withstand voltage, insulating resistance, conductor, dimension, external appearance, etc. All elated raw materials are inspected as Rohs requires.
Product Specifications
| Specification of Rocker Switch | |||
| Rating | 6A/250V AC, 10A/125V AC | ||
| Rated Load | 2/8A 250V AC | ||
| Contact Resistance | ≤50MΩ | ||
| Dielectric Intensity | ≥1500V AC/min | ||
| Withstand Voltage | 1500V AC/min | ||
| Temperature | -25~85°C | ||
| Insulation Resistance | ≥100MΩ | ||
| Life | ≥10,000 cycles | ||
| Pins | 2/3 | ||
| Function | ON-OFF/ON-ON/ON-OFF-ON | ||
| Illumniated | 220V Neon Lamp | ||
| APPROVALS | |||
| CE | CQC | Rohs | TUV |
Detailed Images
|
Part | Material |
| Base Plastic | Nylon | |
| Button Plastic | PA66/ PC | |
| Terminal | Brass(tin plated) | |
| Contact | Compound silver/ Copper | |
| Spring | Tungsten steel | |
| Waterproof Cap | PVC ( If you required) | |
| Mount | Snap in | |
Application:Small household products, communication equipment, energy generator, electric tools, table lamp, electric motor, electric motor car, electric toy, UPS, medical facilities, socket, etc |
||
