Syringe sort of vibrating plate will sort of the syringe tubes and send to the loading guider one by one, loading guider will send
syringe tub into turn table
- Product Details
- {{item.text}}
Quick Details
-
Filling Accuracy:
-
1%
-
Packaging Type:
-
tubes, syringe
-
Voltage:
-
110-480V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MAXWELL
-
Dimension(L*W*H):
-
1130*810*1600
-
Weight:
-
300 KG
-
Name:
-
Aseptic Gel Syringe Needle Valve Filling Machine
-
Filling capacity:
-
25-40pcs/min
-
Filling range(ml):
-
3-30ml
-
Tube diameter:
-
10-50(need extra tube holder)
-
Compressed air:
-
>0.6MPa
Quick Details
-
Machinery Capacity:
-
25-40pcs/min, 2400BPH
-
Packaging Material:
-
Plastic, ABS
-
Filling Material:
-
Gel, Liquid, Lubricants
-
Filling Accuracy:
-
1%
-
Packaging Type:
-
tubes, syringe
-
Voltage:
-
110-480V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MAXWELL
-
Dimension(L*W*H):
-
1130*810*1600
-
Weight:
-
300 KG
-
Name:
-
Aseptic Gel Syringe Needle Valve Filling Machine
-
Filling capacity:
-
25-40pcs/min
-
Filling range(ml):
-
3-30ml
-
Tube diameter:
-
10-50(need extra tube holder)
-
Compressed air:
-
>0.6MPa
Application
Suitable for filling all kinds of gynecological gel, vaginal sterilization gel, fine lubrication gel，etc.
Product Paramenters
|
Type
|
|
MAX-30
|
|
|
Filling volume
|
|
3-30ml
|
|
|
Power
|
|
1.5kw
|
|
|
Filling heads
|
|
10
|
|
|
Accuracy
|
|
±1%
|
|
|
Capacity
|
|
25-40pcs/min
|
|
|
Machine size
|
|
1130x810x1600（mm）
|
|

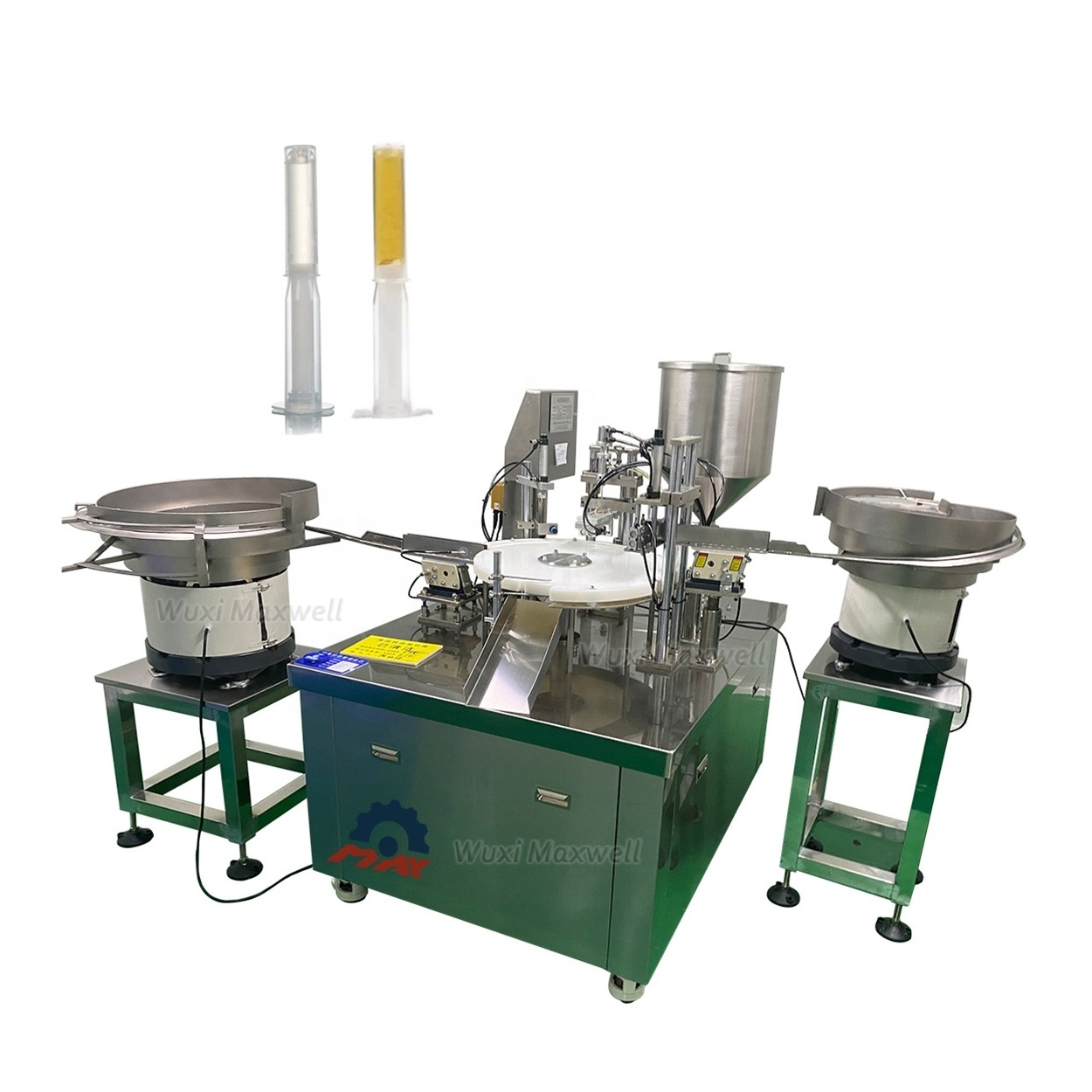

Semi Automatic Prefilled Gynecological Gel Needle Filling Machine
MAX-30 gel filling machine is mainly used for the principle of single transmission. A series of functions such as automatic filling, capping, capping and finished product withdrawal are completed by using the splitter to drive the rotary plate equipped with fixture for intermittent movement.
Filling measurement is accurate, the speed is adjustable. The machine is set up for 10 slots, in addition to manual pipe, other can be completed automatically. The whole machine runs smoothly and reliably, without noise and other pollution.
All the contact materials and some related parts of the machine are made of high-quality stainless steel, and the parts that need to be cleaned are selected quick change devices, which is convenient for disassembly and washing. Where some materials need heating insulation, the external barrel can be equipped with heating constant temperature device.
Working Station
Included the syringe loading guider.Servo motor control filling Automatic plugging and vacuum.Output finish product guider
Vibrating plate will sort of the rubber plug automatically. And send plug into plugging station, Then plugging insert hear will insert it into syringe and vacuum at same time.
Arrange and Feeding Caps
Using the vibrating disk to sort the caps automatically.Then the arranged caps will drop into capping station.
