Bore 80mm to 600mm Cast Iron Iris Valve used to control the flow or to stop the flow

Bore 80mm to 600mm Cast Iron Iris Valve used to control the flow or to stop the flow

FOB Reference Price: Get Latest Price

≥2 Pieces

US $110

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: AD12M C

Brand Name:: AKMK

Body material:: Cast Iron

Seal Material:: sleeves PTFE

Valve type:: Iris Valve

Connection type:: Flange

Model:: AD12

Handle:: Handle

Medium:: powder

Quick Details

Port Size:: 80mm to 600mm, 80mm to 600mm

Warranty:: 1 years

Place of Origin:: Zhejiang, China

Model Number:: AD12M C

Brand Name:: AKMK

Body material:: Cast Iron

Seal Material:: sleeves PTFE

Valve type:: Iris Valve

Connection type:: Flange

Model:: AD12

Handle:: Handle

Medium:: powder

Description

The Series AD valve is the most popular of AKMK's hand operated valve range. The AD is a double diaphragm Iris Valve and is ideal for in-line applications with no leakage to atmosphere.

Specification
Product name	Iris Valve
Type	AD12 C
Diameter	300mm
Diaphragm Material	Teflon
Body Material	Cast iron

Details Images

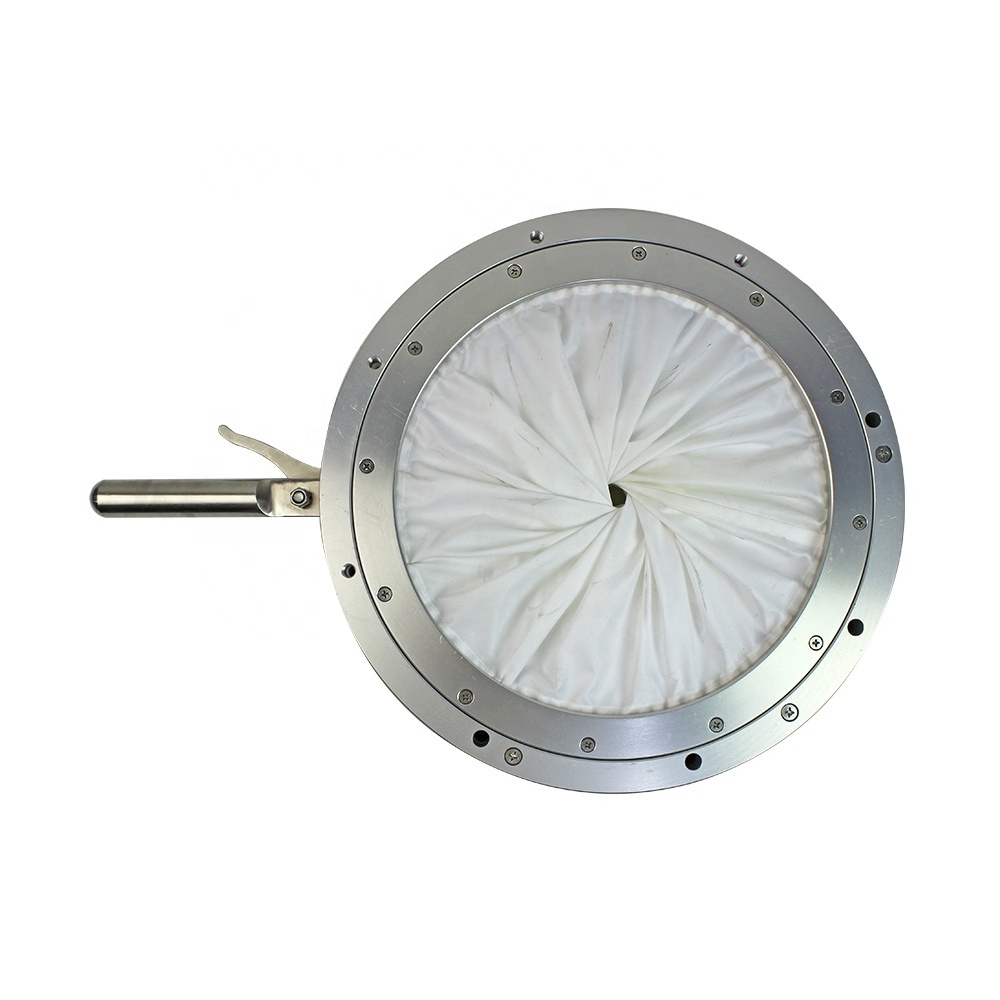

Front of the product

Construction
All body parts are manufactured from stainless steel or aluminium
The Control Ring (Handle) for sizes up to and including 200mm diameter are Gunmetal.
stainless stee triggers and 316 stainless steel screws are used to combat corrosion
Sizes 380mm and 450mm have hand wheel operation as standard

The back of the product

Application
Outlet valve for Silos, Bins, Hoppers and Chutes
Can be used for In-Line applications
Discharge from Sifters, Ribbon Mixers, and Double Cone Blender outlets
For manual bagging of material where frequent operation is involved
Controlling discharge from containers into weigh hoppers

Side of the product/ Unfold diaphragm

Options
All valve parts can be produced in 316 stainless steel (Except for the AD3)
Flurene or other coatings are available for valves working in corrosive environments
Stainless steel clamp rings
Multi-notching of the valve is available to enhance flow control
Hand wheel operation is available for sizes 150mm to 300mm

Benefits
The Iris Valve is non jamming
Full bore diaphragm opening (no restriction to product flow)
No mechanical wear of the valve from abrasive products

Diaphragms and liners are easy and inexpensive to replace
Easy valve operation and maintenance

Safe, gentle and strong. Therefore an ideal solution for many diverse applications

If the above does not have the size you want, you can contact us to communicate whether we can customize it.

Features

The double diaphragm means it is ideal for in-line applications with no leakage of material to atmosphere
Robust construction for medium to heavy duties, handling materials up to 1600 Kg / m³
In-situ Iris diaphragm adjustment reduces maintenance time
Its proven design is suitable for frequent operation
Our large range of diaphragms can suit an enormous range of applications
Bore sizes from 80mm to 450mm
