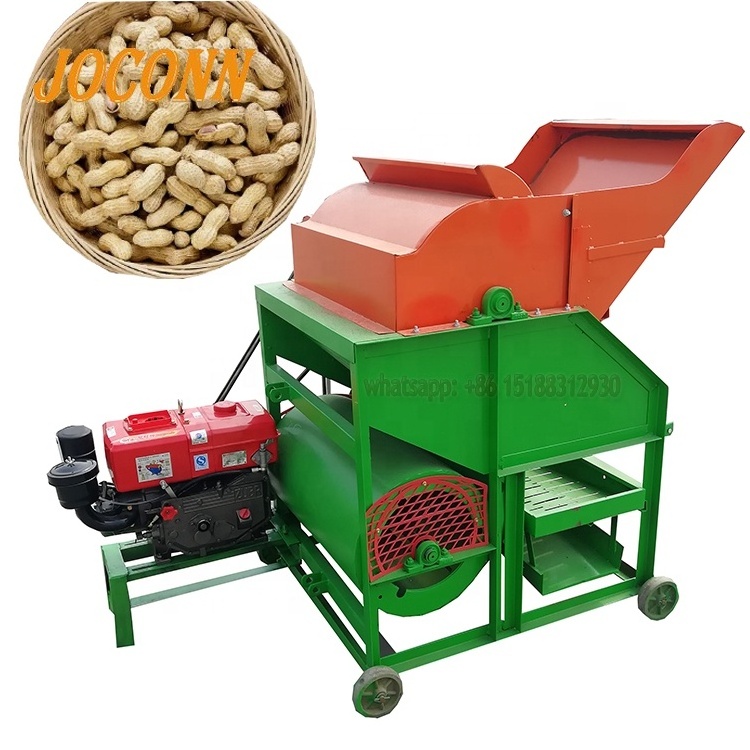

12 hp diesel engine peanut picker/High capacity groundnut picker peanut picking machine/Peanut harvest tools price

The peanut picking machine is used to pick fruits directly with vines after the peanut is harvested. The harvested peanut seedlings and peanuts are directly fed into the peanut picking machine for one-time processing and separation, and the peanuts and seedlings will be automatically separated through the rotation of the machine. thus separated. Fruit picking is clean, both dry and wet stems are available, and the work efficiency is high.

The peanut picking machine is simple and flexible to operate, and can be used flexibly in the field, which is convenient and quick, and has a low breakage rate. It greatly reduces the labor workload of farmers' friends, which saves labor, time and effort, and has high work efficiency.

Model

Peanut picking machine

Capacity

400-800kg/h ( Dry picking 2000sqm/h      wet picking 1000sqm/h )

Power source

5.5kw motor / 8-12hp diesel engine optional

Damage rate

≤1%

Weight

180kg

Size

1350*1000*1400mm

Size with frame

2460*1240*1700mm

1

The peanut picking machine is mainly composed of frame, motor (diesel engine), transmission part, fruit picking part, fan selection part, and vibration mechanism.

2

During operation, the motor or diesel engine drives the machine to run through the entrance and enters the fruit picking system.The rotation of the pick rod by the drum makes the peanuts come off the stem.

3

Fruits and sundries fall onto the vibrating screen through the holes, the stems are discharged from the discharge port, and the miscellaneous fruits scattered on the vibrating screen are transmitted to the fan suction port through the vibrating screen to discharge impurities, and the clean fruits are selected to complete the whole process.
