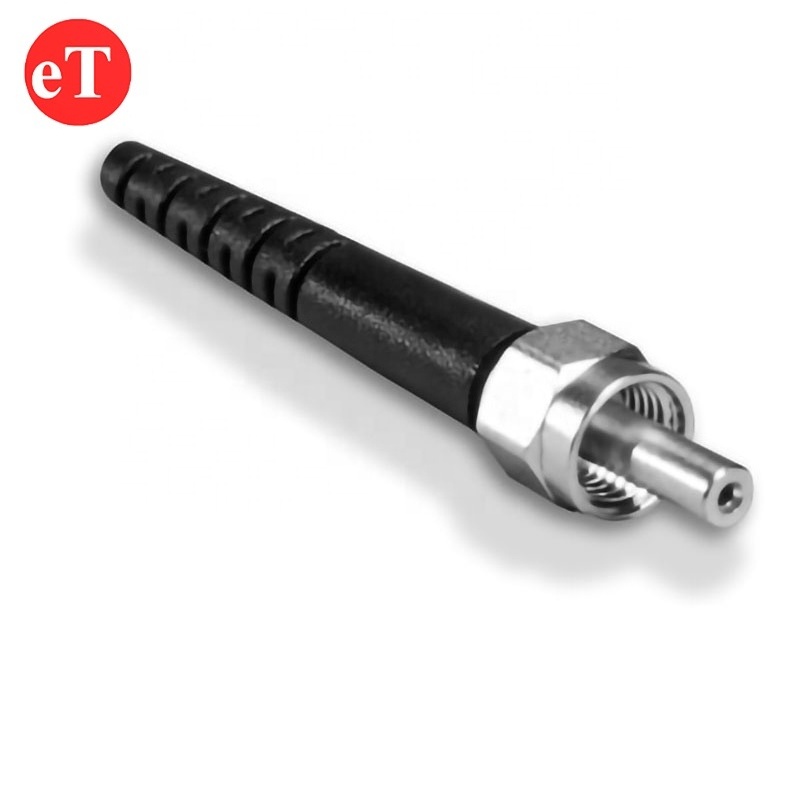

Quick Details
-
Connector Type:
-
SMA 905
-
Ferrule:
-
Metal
-
Mode:
-
MM
-
Core diameter:
-
105~1000um
-
Insertion Loss:
-
≤0.25dB
-
Return Loss:
-
≥50dB
-
Suitable cable diameter:
-
0.9mm/2.0mm/3.0mm, or customized
-
Connector part:
-
Metal and plastic
-
Power:
-
High power
-
Packing:
-
50pcs per box
Quick Details
-
Brand Name:
-
E Tech
-
Model Number:
-
ECO-SM95
-
Place of Origin:
-
Guangdong, China
-
Connector Type:
-
SMA 905
-
Ferrule:
-
Metal
-
Mode:
-
MM
-
Core diameter:
-
105~1000um
-
Insertion Loss:
-
≤0.25dB
-
Return Loss:
-
≥50dB
-
Suitable cable diameter:
-
0.9mm/2.0mm/3.0mm, or customized
-
Connector part:
-
Metal and plastic
-
Power:
-
High power
-
Packing:
-
50pcs per box
Products Description
Feature
Good light through rate
Excellent anti fatigue
Large core diameter optical energy
Tensile strength
Good light through rate
Excellent anti fatigue
Large core diameter optical energy
Tensile strength
Optical measurement applications
Optical detection equipment
Detection of food safety
Factory automation
Specification
|
Mode
|
SM
|
|
MM
|
||
|
Polish
|
UPC
|
APC
|
PC
|
||
|
Insertion Loss
|
Typical ≤0.2dB Maximum ≤0.3dB
|
|
≤0.25dB
|
||
|
Return Loss
|
≥50dB
|
≥65dB
|
≥35dB
|
||
|
Interchangeability
|
≤0.2dB
|
|
|
||
|
Repeatability
|
≤0.1dB
|
|
|
||
|
Durability
|
≤0.2dB (1000 times mating)
|
|
|
||
|
Tensile Strengh
|
> 10kg
|
|
|
||
|
Temperature
|
≤0.2dB (-40+85 sustain 100 hours)
|
|
|
||
|
Humidity
|
≤0.2dB (+25+65 93 R.H.100 hours)
|
|
|
||
Details Images
Manufacturing Technique
Delivery
FAQ
1. What is your order quantity?
Etech: usually 1 piece, if you have detailed requirements, we can coordinate.
2. What is your delivery date?
Etech: The delivery date is approximately 3-5days, depending on the order quantity.
3. Can you provide samples for customers?
Etech: Yes, but the shipping will be charged on the customer's account.
4. What is your price?
Etech: We offer competitive price with good performance.
5. Do you offer OEM services?
Etech: We accept OEM, ODM. Cable sizes and materials can be customized.
