Quick Details
-
Voltage:
-
380V
-
Power:
-
4.8KW
-
Dimension(L*W*H):
-
2300x1100x1500
-
Weight:
-
2200 kg
-
Marketing Type:
-
New Product 2023
-
Paper size:
-
Single PE/Double PE
-
paper gram:
-
150-350g/㎡
-
LM Shaft:
-
Hard shaft
-
turntable:
-
Aluminum alloy
-
Cam:
-
nc machining+Nitriding
-
Certification:
-
ce
Quick Details
-
Production Capacity:
-
90-100Pcs/min
-
Place of Origin:
-
China
-
Brand Name:
-
kangqi
-
Voltage:
-
380V
-
Power:
-
4.8KW
-
Dimension(L*W*H):
-
2300x1100x1500
-
Weight:
-
2200 kg
-
Marketing Type:
-
New Product 2023
-
Paper size:
-
Single PE/Double PE
-
paper gram:
-
150-350g/㎡
-
LM Shaft:
-
Hard shaft
-
turntable:
-
Aluminum alloy
-
Cam:
-
nc machining+Nitriding
-
Certification:
-
ce
Product Description
✦Introduction

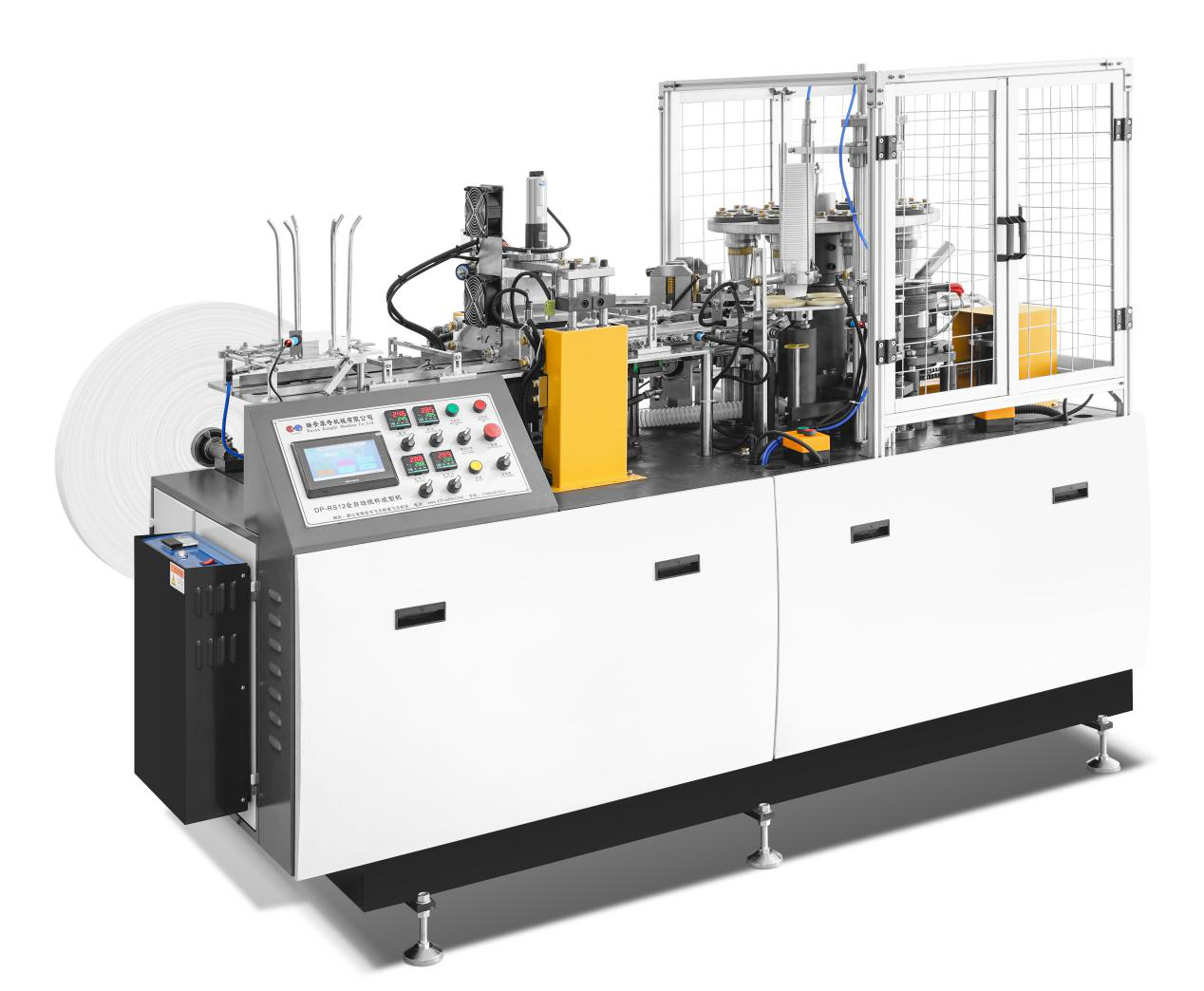

The DPRS-12 Medium Speed Single Turn plate Paper cup making machine is a paper cup forming machine completed by a single turntable. It adopts an open intermittent indexing mechanism, gear transmission, synchronous belt drive, vertical axis structure, and a separate lifting structure for the curling, which reduces the stroke of the main functional mechanism.
It has reasonable distribution of various functional assemblies. The whole machine adopts the method of regular quantity grease lubrication in time, which reduces the wearing of machine parts. Whole cup making process is controlled by PLC, with photoelectric sensor monitoring. The step motor control paper feeding(have paper then feeding, no paper, then no feeding).
In order to improve the performance of the equipment, achieve fast and smooth operation, realize automatic shutdown of the fault, great. By simplifying the cup making process, feeding, adhesive, cupping, bottoming, heating, bottoming, knurling, curling, unloading, inspection, and automatic counting. Our machine is best choices for making paper cups.reduce the labor intensity of the workers, and improve the safety and stability of the equipment.
Specification
✦Half mould ：Bottom same，angle same，different height. Which mean C same ，D same，But A and B not same
✦Full mould ：angle change or bottom change then all need change.
Detailed Images
Cup Body Sealing
Ultrasonic sealing for cup body, both okay for single or double PE coated paper.
Single Turntable Plate
It is formed by one turntable for paper cup forming, which reduces the stroke of the main functional machanism and rationally distributes the various functional assemblies.
Oil Lubrictate System
Full-automatic lubricating system is applied, thus leading to a long lifespan, with less human maintaince.
Also the oil can be recycle used.
Photoelectric
Photoelectricity sensor to track every step.
Auto alarm when paper fan go short.
Auto stop when multi paper fans delivery.
Auto alarm when any fault on the machine.
Gear Drive System
Gear transimission is more stable than chain transmission,
and with high precision.
Products Application
Packing & Delivery
Delivery time: 30 days after receiving deposit
Packing and marking：Standard packing or wooden case
|
Packaging
|
|
|
|
Size
|
2750(L) * 1150 (W) * 1650 (D)
|
|
|
Weight
|
1.5 T
|
|
|
Packaging Details
|
The film packing as picture shows. If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
|
Packaging
|
|
|
|
Size
|
2850 (L) * 1250 (W) * 1750 (D)
|
|
|
Weight
|
1.6 T
|
|
|
Packaging Details
|
The normal package is wooden box, If export to european countries,the wooden box will be fumigated, or pack it according to customers special request.
|
|
