* 1/2.8" So-ny IMX307 CMOS sensor
* Full HD resolution 1920 x 1080P
* Ultra low illumination 001Lux
* Day/Night (ICR), AWB, AGC, BLC, 2D/3D-DNR, IR-CUT
* D-WDR, Motion Detection, Privacy Mask, Mirror
* RTSP and On-vif 11.07compatible
* 265/H.264 dual-stream media server
* Easy-to-use P2P Cloud service
* Multi web browser, PC Client, mobile APP remote access
* Lightning protection 4000V
* Strong water-proof housing, IP67
* 4PCS IR Array LEDs,IR distance:70-80M
* HD 8-12mm manual varifocallens
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YCX/OEM
-
Model Number:
-
W542AHZ86A
-
Name:
-
1080p cctv ip camera outdoor
-
Chipset:
-
SSC335+SO-NY IMX 307
-
resolution:
-
2 MP, 1920*1080P@30/25fps
-
IR LEDS:
-
4pcs IR Array Leds,
-
IR Distance:
-
70-80m
-
Lens:
-
2.8-12mm Varifocal lens
-
Waterproof:
-
IP67
-
Power Supply:
-
DC12V/POE
-
Functions:
-
Human body detection
-
Protocol:
-
Hik/On-vif
Quick Details
-
Special Features:
-
Human Motion Tracking, NIGHT VISION, Motion Detection, Waterproof / Weatherproof
-
Function:
-
NIGHT VISION, Waterproof / Weatherproof
-
Customized support:
-
Online technical support, Customized logo, Software reengineering, OEM, ODM
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YCX/OEM
-
Model Number:
-
W542AHZ86A
-
Name:
-
1080p cctv ip camera outdoor
-
Chipset:
-
SSC335+SO-NY IMX 307
-
resolution:
-
2 MP, 1920*1080P@30/25fps
-
IR LEDS:
-
4pcs IR Array Leds,
-
IR Distance:
-
70-80m
-
Lens:
-
2.8-12mm Varifocal lens
-
Waterproof:
-
IP67
-
Power Supply:
-
DC12V/POE
-
Functions:
-
Human body detection
-
Protocol:
-
Hik/On-vif
Human body detection 4pcs IR Array LEDs 70-80meters Long IR

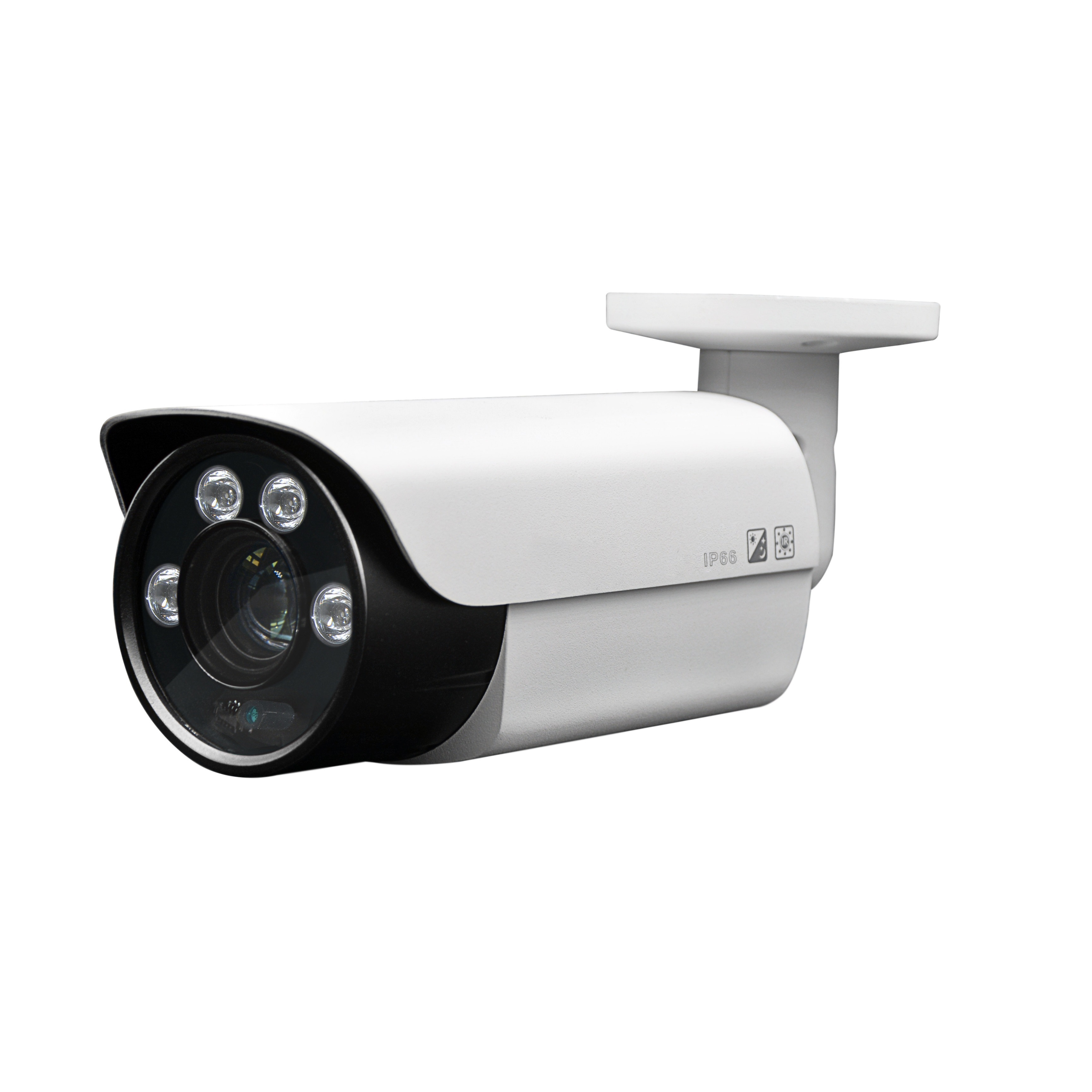

1080p cctv ip camera outdoor
,POE ip-camera
Product Description
1080p cctv ip camera outdoor
Specification
|
Model
|
W542AHZ86A
|
|
|
Camera
|
|
|
|
Image Sensor
|
1/2.8" SO-NY IMX307 CMOS
|
|
|
Effective Pixels
|
1920 (H) x 1080 (V)
|
|
|
Electronic Shutter
|
AUTO, 1/25s ~ 1/100000s
|
|
|
Min. Illumination
|
0.001Lux@F1.2(AGC ON), 0Lux IR on
|
|
|
Day/Night
|
Auto/Color/(B/W)/Timing
|
|
|
WDR
|
Digital WDR/HDR(>120dB)
|
|
|
White Balance
|
Auto/Indoor/Outdoor
|
|
|
BLC
|
Support
|
|
|
DNR
|
2D/3D DNR
|
|
|
Other
|
Human body detection,Motion Detection, Privacy Mask, Mirror, flip
|
|
|
Encode
|
|
|
|
Embedded Solution
|
Mstar 335
|
|
|
Video Standard
|
H.264/H.265
|
|
|
Video Resolution
|
Main stream: 1080P@25/30fps , 720P@25/30fps
Sub stream: D1/VGA/360P@25/30fps |
|
|
Video Bitrates
|
32Kbps - 5Mbps, VBR/CBR
|
|
|
Audio Standard
|
G.711-u/G.711-a
|
|
|
OSD Overlay
|
Title and Time overlay
|
|
|
IR Leds
|
|
|
|
IR Leds
|
4PCS IR Array LEDs
|
|
|
IR Distance
|
70-80 M
|
|
|
Lens
|
|
|
|
Focal length
|
HD 2.8-12mm manual varifocal lens
|
|
|
Optional Functions
|
|
|
|
SD card slot and so on
|
|
|
|
Network Services
|
|
|
|
Protocol
|
HTTP/RTSP/FTP/NFS/SMTP/DHCP/NTP, etc.
|
|
|
P2P
|
Yes
|
|
|
Web
|
IE , Firefox, etc.
|
|
|
Media
|
CMS, Android, IOS
|
|
|
ON-VIF
|
2.6 compatible
|
|
|
General
|
|
|
|
Network Port
|
1-RJ45, 100Mbps,
|
|
|
Power Supply
|
POE ,12 VDC ± 10%
|
|
|
Power Consumption
|
< 8 W
|
|
|
Operating Temp.
|
-30℃-(+60)℃, 10%-90%RH
|
|
Connection Diagram
Packing & Delivery
Recommend Products
Company Profie
Our Services
Warranty & RMA
2 years free repair and lifetime technical support provided after the shipment date.
Any product proves defective under normal usage, we will repair or replace it by free of Charge.
> If you could repair the products by yourself, we will supply the spare parts.
> If you couldn't repair the products, please sent back to us, and we repair and afford 50% freight charge.
All our products are 100% passed strictly quality inspection before delivery. our detective rate is less than 1%
OEM & ODM
> OEM Silkprint LOGO/Sticker/Box/Manual/Software/Carton Box, Free of Charge with MOQ
> ODM Projects acceptable and welcome to your enquiries!
Payment Terms
T/T, Paypal, Western Union, Sinosure & L/C
> We accept T/T 30% deposit to arrange production,70% balance payment when goods ready.
> If order value less than 20,000USD$, we should get 100% payment before production
> Sinosure & L/C acceptable according to the order amount
MOQ
Welcome trial order! Sample Order no MOQ; after sample order, MOQ 10pcs per model.
Silkprint OEM logo MOQ 100pcs, OEM Design box MOQ 1000pcs.
How to order from us?
> Please confirm the model no. & quantity that you would like to purchase with our sales person, or email to us
> We will send you a Proforma Invoice to specify net cost of mentioned goods, and other relevant charges once you confirm the order.
> After you arrange the payment and send us the bank slip, Your order will be put into production, and let your know the delivery date in 2 days.
> When the goods are ready, we will send by DHL, by air or by sea, or other shippiong method appointed by the customers. and let you know the tracking number and estimated time of arrival.
Technical Support
Professional technical support team 24 Hours Online!
Contact Us
For More, Please feel free to contact us & Welcome to Visit our Factory in Shenzhen. Welcome to visit our official website www.ycxcctv.com to view video demos, download product catalog and read CCTV technical articles http://www.mydownload.store.
Choose YCX, Guard Your Safety, Secure Your World! ^_^
