- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Hospital
-
Design Style:
-
Modern
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
JTL
-
Model Number:
-
JTL-M001, PINHOLE,FINE FISSURED
-
Material:
-
Mineral fiber
-
Product name:
-
mineral fiber wool board
-
type:
-
False Ceiling Acoustical Mineral Fiber Board
-
Patterns:
-
pin hole,fine fissure,sand textured
-
RH:
-
75-90
-
NRC:
-
0.55
-
Thickness:
-
6-20mm
-
Size:
-
595x595 600x600 600x1200
Quick Details
-
Warranty:
-
5 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Hospital
-
Design Style:
-
Modern
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
JTL
-
Model Number:
-
JTL-M001, PINHOLE,FINE FISSURED
-
Material:
-
Mineral fiber
-
Product name:
-
mineral fiber wool board
-
type:
-
False Ceiling Acoustical Mineral Fiber Board
-
Patterns:
-
pin hole,fine fissure,sand textured
-
RH:
-
75-90
-
NRC:
-
0.55
-
Thickness:
-
6-20mm
-
Size:
-
595x595 600x600 600x1200
Product Description

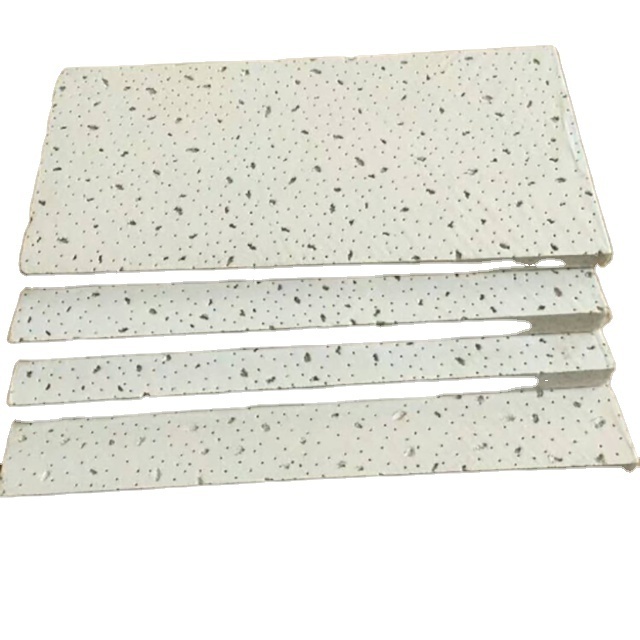

Suspended Ceiling Panels Mineral Wool Fibre Board Acoustic Mineral Fiber Drop Ceiling Tiles jintailong building materials
2.Q:Where can be used?
A: This mineral fiber ceiling tile could be used for schools, corridors, lobbies&reception areas,administrative&traditional ofices, retail stores, galleries&exhibit spaces, mechanical rooms, libraries, warehouses, etc
3.Q: What advantages compared to other ceiling tile?A: The mineral fiber ceiling tile main function is sound absorption and noise reduction, its sound absorption and noise reduction ability is 1-2 times higher than ordinary ceiling boards.The sound absorption coefficient NRC is above 0.5, which can enhance the function of the building.improve the acoustic environment of the building, and improve the quality of people's life.
Specification
|
Material:
|
Wet-Formed Mineral Fiber
|
|
Surface Coating:
|
High Quality Factory-Applied Latex Paint
|
|
Color:
|
White or Black
|
|
Edge Detail:
|
Square or Tegular
|
|
Fire Performance:
|
Non-Combustible
|
|
Thickness:
|
6-20mm
|
|
Size:
|
595x595mm, 600x600mm, 603x603mm, 605x605mm, 603x1212mm, 605x1210mm, 625x625mm,etc
|
|
Density:
|
240-350kg/m3
|
|
Usage:
|
schools, corridors, lobbies & reception areas, administrative & traditional offices, retail stores, galleries & exhibit spaces,
mechanical rooms, libraries, warehouses, etc. |
|
Bending failure Loading,N
|
≥80
|
|
Moisture percentage,%
|
≤3.0
|
|
Thermal Resistance (㎡K/W)
|
≥0.22
|
|
Appearance
|
Should not affect the decorative effect positive stains, scratches, uneven color, pattern defects such as incomplete
|
Our Advantages
Different Types
Installation Instructions
I
nstallation
Should be installed with high quality suspension system.
Material: Hot dip galvanized steel strip, with zinc coating mass at least 80-120g/square meter
Main Characteristic:
1) High grade galvanized steel as main material, non-deforming, fadeless, moisture proof and anti-corrosive.
2) Strong close fitting, high symmetry
3) High load capacity
4) Easy and fast installation, save installing time and labor cost
Packing & Delivery
