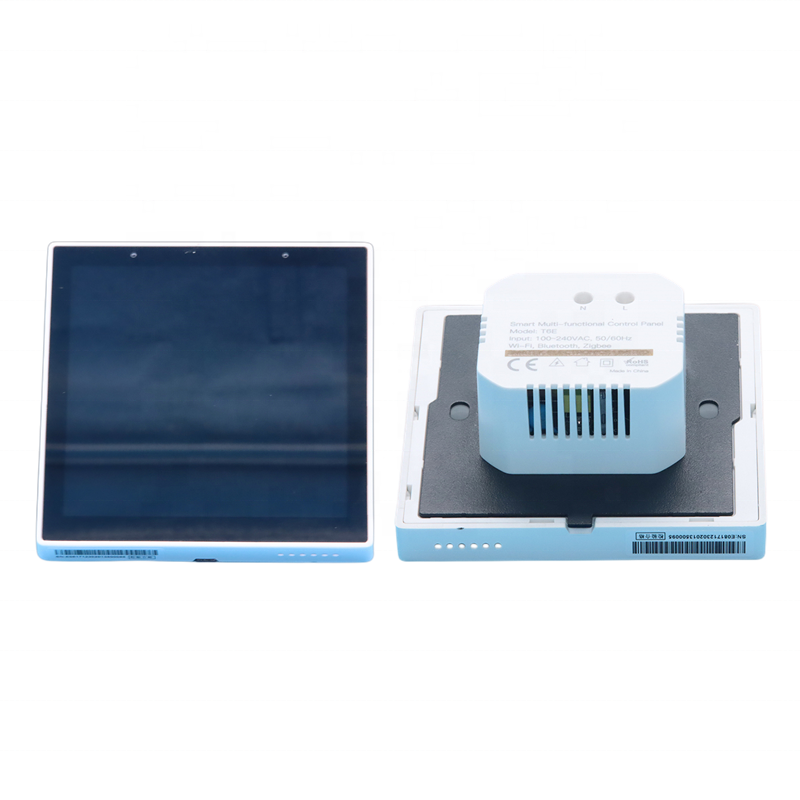

Cobtel multifunctional smart switch also called smart control panel could control all your smart switches, smart plugs, lights, air conditioners, curtains, locks, security cameras, smart sensors,up to 100+ ZigBee sub devices. With light sensor, automatically adjust the screen brightness...
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
COBTEL
-
Model Number:
-
SP-ZKP/TY
-
Mechanical Life:
-
20 Years
-
Product name:
-
Smart Control Switch
-
Color:
-
Black
-
Material:
-
Fireproof PC
-
Logo:
-
Accept OEM
-
Size:
-
86x86x35.75mm (with the base)
-
Voltage:
-
100-240 Volts AC
-
CPU:
-
PX30 Quad core Cortex-A35
-
Screen:
-
4 inch 480*480 Multi-touch
-
Working Temperature:
-
0℃~40℃
-
Net Weight:
-
178g
Quick Details
-
Max. Current:
-
10A
-
Max. Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
COBTEL
-
Model Number:
-
SP-ZKP/TY
-
Mechanical Life:
-
20 Years
-
Product name:
-
Smart Control Switch
-
Color:
-
Black
-
Material:
-
Fireproof PC
-
Logo:
-
Accept OEM
-
Size:
-
86x86x35.75mm (with the base)
-
Voltage:
-
100-240 Volts AC
-
CPU:
-
PX30 Quad core Cortex-A35
-
Screen:
-
4 inch 480*480 Multi-touch
-
Working Temperature:
-
0℃~40℃
-
Net Weight:
-
178g
Hot sale products
Product Description
Multifunctional Smart Switch
Production Parameters:
|
Product Name
|
Smart home solutions system phone remote control smart wifi zigbee controlled wall touch screen light switch
|
|
Material
|
Flame Retardant PC Shell
|
|
Color
|
Black or Custom
|
|
Brand
|
COBTEL/OEM/ODM
|
|
Dimension
|
86*86*35.75 mm (with the base)
|
|
Front Panel Size
|
86*86*10.5 mm (without the base)
|
|
Rated Voltage
|
AC 220V
|
|
CPU
|
PX30 Quad core Cortex-A35
|
|
Screen
|
4 inch 480*480 Multi-touch
|
|
Bluetooth
|
BLE4.2 Single point
|
|
WiFi
|
802.11b/g/n150Mbps 2.4GHz
|
|
RAM
|
1GB
|
|
ROM
|
8GB
|
|
Power Supply
|
100~240VAC,50/60Hz
|
|
Wireless Protocols
|
Wi-Fi,Bluetooth,Zigbee
|
|
Net Weight
|
178g
|
|
LOGO
|
COBTEL, customized logo as your required or without logo
|
|
Application
|
Residential / General-Purpose/Home/Hotel
|
|
Operation Temperature Range
|
0°C~40°C
|
|
Working Humidity
|
5%~90%RH
|
Main Features
● It is compatible with European standard wall boxes, simple in wall installation.
●4-inch HD LCD, IPS, multi touch screen, Dual array microphone with noise reduction,Auto light sensor, built in 1W speaker.
● ZigBee gateway function, APP remote control.
Installation instructions
● Turn off the main power in the electricity box and confirm the fire wire is not alive with a test pencil.
● Remove the base of the multifunctional smart switch and install it in the wall box (as shown in the pictures following).
● Check the wires and make sure the wires are in good contact with the terminals and no exposed cooper wires.
● Fasten the base to the wall box with mounting screws and fix the Smart Switch back to the base.
● Note that the screws should not be fixed too tight during installation in case any deformation or damage to the screen and hardware.
● If the smart switch is not flat after installation, do not press the screen violently, please check the wall box and the base
installation at first.
Safety Notes
●The product must be installed by professional electricians.
●Turn off the main power in the electricity box and confirm the fire wire is not alive with a test pencil.
● The product should be kept away from fire and water during installation and use.
● It can not be used in moisture circumstances such as bathroom.
●Please note the product does not support POE power supply. Do not connect POE switch to this product which would cause damage to the product.
● It is compatible with European standard wall boxes, simple in wall installation.
●4-inch HD LCD, IPS, multi touch screen, Dual array microphone with noise reduction,Auto light sensor, built in 1W speaker.
● ZigBee gateway function, APP remote control.
Installation instructions
● Turn off the main power in the electricity box and confirm the fire wire is not alive with a test pencil.
● Remove the base of the multifunctional smart switch and install it in the wall box (as shown in the pictures following).
● Check the wires and make sure the wires are in good contact with the terminals and no exposed cooper wires.
● Fasten the base to the wall box with mounting screws and fix the Smart Switch back to the base.
● Note that the screws should not be fixed too tight during installation in case any deformation or damage to the screen and hardware.
● If the smart switch is not flat after installation, do not press the screen violently, please check the wall box and the base
installation at first.
Safety Notes
●The product must be installed by professional electricians.
●Turn off the main power in the electricity box and confirm the fire wire is not alive with a test pencil.
● The product should be kept away from fire and water during installation and use.
● It can not be used in moisture circumstances such as bathroom.
●Please note the product does not support POE power supply. Do not connect POE switch to this product which would cause damage to the product.
Details Images
Cobtel multifunctional smart switch could control all your smart switches, smart plugs, lights, air conditioners, curtains, locks, security cameras, smart sensors,up to 100+ ZigBee sub devices. With light sensor, automatically adjust the screen brightness according to surroundings.
It could control the lights, curtains, air conditioners, and all other smart home devices. Configure Smart Home scenes in the APP, turn on the scene mode with one touch on the screen.
It could control the lights, curtains, air conditioners, and all other smart home devices. Configure Smart Home scenes in the APP, turn on the scene mode with one touch on the screen.
Application
