Quick Details
-
Brand Name:
-
XIMIIR
-
Model Number:
-
F99/S99
-
Fingerprint capacity:
-
100
-
Card capacity:
-
3,000
-
Open mode:
-
Card/ password/card+password
-
Work distance:
-
0-5cm
-
Card Type:
-
RFID
-
Working Voltage:
-
9V-24V
-
Wiegand:
-
input/output
-
Open door time:
-
0-99 adjustable
-
Waterproof:
-
IP65 Optional
-
Dimension:
-
110x79x22/133x59x22(mm)
Quick Details
-
Special Features:
-
RESET, Waterproof / Weatherproof
-
Customized support:
-
OEM, ODM, Customized logo, Online technical support
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XIMIIR
-
Model Number:
-
F99/S99
-
Fingerprint capacity:
-
100
-
Card capacity:
-
3,000
-
Open mode:
-
Card/ password/card+password
-
Work distance:
-
0-5cm
-
Card Type:
-
RFID
-
Working Voltage:
-
9V-24V
-
Wiegand:
-
input/output
-
Open door time:
-
0-99 adjustable
-
Waterproof:
-
IP65 Optional
-
Dimension:
-
110x79x22/133x59x22(mm)
Product Description

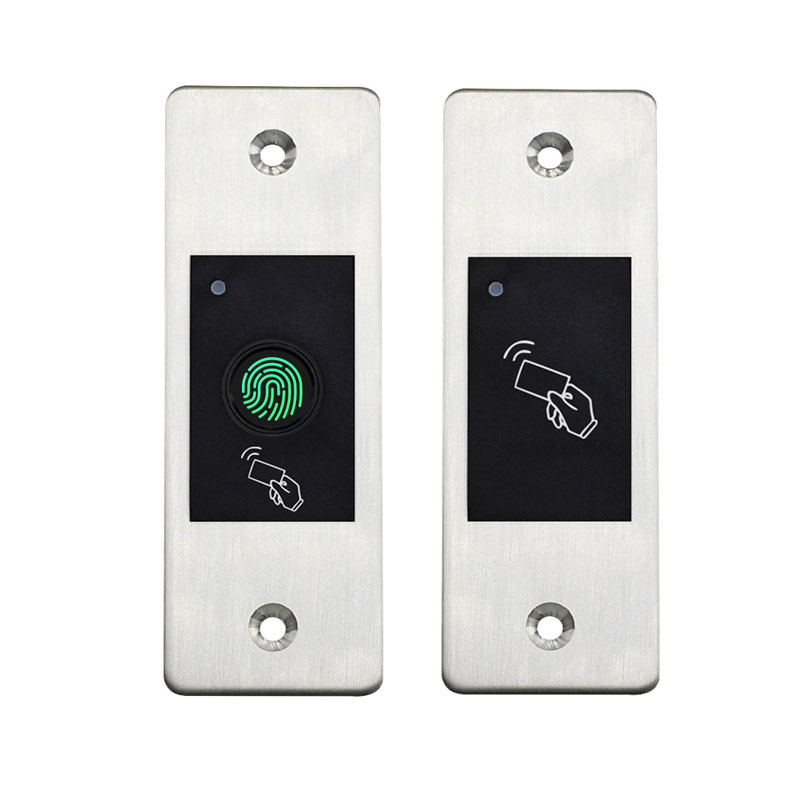

S99/F99
is a standalone embedded access control terminal with metallic case IP65 Waterproof
rate
, touch back light keypad , good quality and simple operating, Password and RFID card identification way optional WIFI, widely use for government, hospital, apartment, office and so on.
Features
> Embedded design with mini size
> Metal case and waterproof, conform to IP66
> User capacity: 100 fingerprints and 3000 cards
> Card type: 125KHz EM card
> One programmable relay operation
> Latch mode to hold door or gate open
> Tri-colour LED status display
Specification
|
Model
|
S99/F99
|
|
Fingerprint Capacity
|
100 (Optional)
|
|
Card Capacity
|
3,000
|
|
Working Voltage
|
DC9-24V
|
|
Lock output
|
2A
|
|
Static circuit
|
≤30mA
|
|
Output short circuit protection time
|
≤100μS
|
|
Card Type
|
EM 125KHZ
|
|
Communication interface
|
Wiegand26/34 input; WG26 Output
|
|
Waterproof Rate
|
IP65
|
|
Working Distance
|
0-5cm
|
|
Working Temperature
|
-25-60℃
|
|
Environment Humidity
|
10%~90%
|
|
Door Open Time
|
0-99s (Adjustable)
|
|
Dimension
|
115x40x25(mm)
|
Details Images
Diagram
