Quick Details
-
Axis number:
-
3-6 Axis
-
Function:
-
Dispensing Robot
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Voltage:
-
220v
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
70 KG
-
Axis number:
-
3-6 Axis
-
Function:
-
Dispensing Robot
-
Marketing Type:
-
Ordinary Product
Product Description

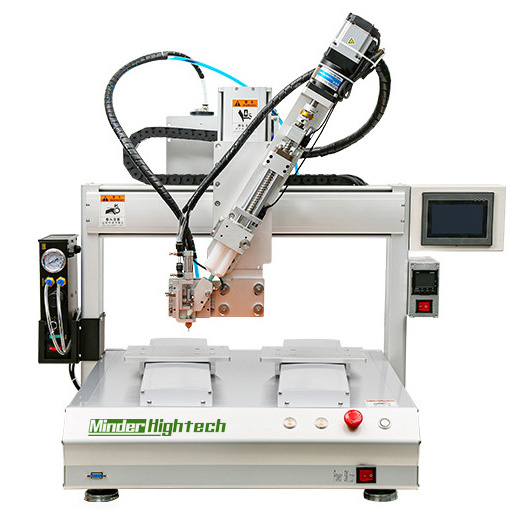

Dispensing machine can replace manual operation to achieve mechanized production; single machine can be operated, simple and convenient, high speed and accurate; SD card storage mode, convenient for data management and file transfer between machines; can be equipped with a two-component pumping system to form a double Liquid automatic dispensing machine; can be equipped with accessories such as dispensing controller and dispensing valve to form floor-mounted dispensing equipment; can be equipped with screw locking mechanism and configured as an automatic locking screw machine; can be upgraded to an online robot on demand. Used in various automated assembly; strong bearing capacity and large processing space.
Application
Feature
1.It is independent of the mold . It is an aluminum profile castingstructure with beautiful appearance
2.It has a hand-held teaching programmer , which is fast and easyto program .
3.Its glue speed and glue amount can be set separately
4.It is controlled by a high precision stepping motor , and the trailis accurate
5.It can finish any shape point glue , such as space point , line , arc , etc .
6.It contains a variety of glue needles , syringes , glue valves andcontrollers to meet different requirements
Machine Parameters
|
Model |
MD-331 Four-axis rotating syringe dispenser |
|
Dispensing range X/Y/Zmm |
300/300/100/360° |
|
Programmatically |
Teaching programming or graphics import |
|
Motor system |
SHINANO KENSHI |
|
Minimum discharge |
0.01ml |
|
Glue frequency |
5 times/sec |
|
Maximum load |
10kg |
|
Moving speed (mm/sec) |
0-500 |
|
Repeatability |
±0.02mm |
|
way to control |
Motion control card + handheld box |
|
Number of program records |
100 groups |
|
Display method |
LCD teaching box |
|
driver |
Leadshine |
|
guide |
HIWIN |
|
Photoelectric switch |
OMRON |
|
transfer method |
ELATECH timing belt |
|
Input power |
Full voltage AC110V~200V |
|
External control interface |
RS232 |
|
Spit pressure adjustment range |
0.05MPa-0.99Mpa |
|
Discharge time adjustment |
Automatic timing spit out 0.01S-99.99s/0.0015-9.999s two groups |
|
Spit out interval time adjustment |
0.1-9.9s |
|
Repeatability |
±0.01% |
|
Spit frequency |
>800 times/minute |
|
Minimum discharge |
0.0001ml |
Product Details
FAQ
Q: How to buy your products ?
A: We have some products in stock , you can take away the products after you arrange the payment ;
Q: What’s the warranty for the products ?
A: The free warranty is one year from the date of commissioning qualified.
Q: Can we visit your factory ?
A: Of course, welcome to visit our factory if you come to China.
Q: How long is the validity of quotation ?
A: Generally, our price is valid within one month from the date of quotation. The price will be adjusted appropriately as the
price fluctuation of raw material in the market.
Q: What’s the production date after we confirm the order ?
A: This depends on the quantity. Normally, for the mass production, we need about one week to finish the production
