Quick Details
-
Power:
-
35kw
-
Weight:
-
1500 KG
-
Dimension(L*W*H):
-
2.6*1.0*1.85m
-
Year:
-
2021
-
Machine name:
-
Corn flakes corn chips making processing machines line
-
tasty mouth:
-
decilious
-
materials:
-
Stainless steel
-
craft:
-
extrusion/automatic
-
energy:
-
electricity/diesel/gas
-
shapes:
-
such as ball,sticks,flower,nails,star and so on
-
operate workers:
-
2-3 workers
-
capacity:
-
200-250kg/h
-
Web:
-
www.fldmachine.com
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FLD
-
Voltage:
-
380v 50HZ Three
-
Power:
-
35kw
-
Weight:
-
1500 KG
-
Dimension(L*W*H):
-
2.6*1.0*1.85m
-
Year:
-
2021
-
Machine name:
-
Corn flakes corn chips making processing machines line
-
tasty mouth:
-
decilious
-
materials:
-
Stainless steel
-
craft:
-
extrusion/automatic
-
energy:
-
electricity/diesel/gas
-
shapes:
-
such as ball,sticks,flower,nails,star and so on
-
operate workers:
-
2-3 workers
-
capacity:
-
200-250kg/h
-
Web:
-
www.fldmachine.com
-
Certification:
-
CE

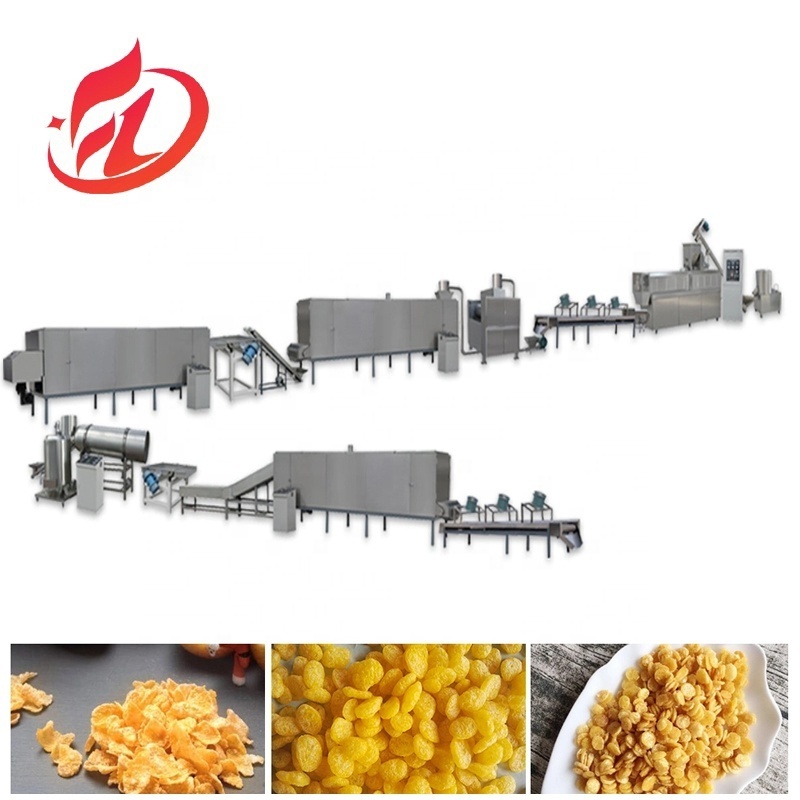

Corn flakes corn chips making production processing machines line Information:
1.The main extruder adopts frequency speed controlling with high automation.
2.The screws are made of the stainless steel and special craft, which has the advantage of durable usage, high pressure,and longer life.
4.Auto-temperature control system and self-cleaning ,which makes it more convenient.
1. Mixer: to mix the various corn flours, wheat flours, rice flours, and other grains flours etc.
20kg/time, 40kg/time, 50kg/h, 100kg/time, 200kg/time, 500kg/time, etc.
2. Conveyor: to convey mixed raw materials to the extruder machine.
3.Extruder: to choose DSE model extruders base on the production capacity requirement from 100kg per hour to 500kg per hour. The raw material include corn powder, cereal powder, soybean powder, shrimp powder and so on. Shape and size of the snacks depends on the moulds, we will provide you six pieces of the moulds for free.
4. Air conveyor: to convey the snack food to the dryer, the height of the conveyor depends on the dryer.
5. Dryer: electrical, gas, diesel, steam type, controlled by control box, temperature range 0-240ºC.Inside is stainless steel double layer mesh net. Drying time is adjustable according to speed. We have dryers of 3 layer 5 meter, 5 layer 5 meter, 5 layer 7 meter, 5 layer 8 meter, 7 layer 8 meter, 5 layer 11 meter, and 7 layer 11 meter long.It can also be designed according to your requirement.
6. Flavoring line: To spray oil and various flavors on the surface of the foods evenly, the equipments are: single roller, double roller, round roller, eight-angle roller. Varies depends on the different production line setting.
7. Cooling conveyor: To cool the product temperature down by air fan in order to pack it directly.
8. Sifter: To remove the wasted material and shapeless pellet, and ensure quality, meanwhile to ensure the reuse of the waste material.
9. Packing machine: Manual and automatic packing machine. to be choosed according to your requirement.
| Model | FLD65-III | FLD70-III | FLD85-III |
| Install Power | 76KW | 95kw | 178kw |
| Power Consumption | 54KW | 66kw | 125kw |
| Capacity | 80-120KG/H | 150-200kg/h | 280-350kg/h |
| Dimension | 40×3×2.5m | 45×3×4m | 48.5×5×4m |
6.Main equipment of Breakfast cereals corn flakes making Machine:
|
Mixer
To mix the raw materials evenly, fast speed, no leakage.
Type: Vertical and horizontal type Motor: 3kw, 4kw, 7.5kw etc. Material: stainless steel, carbon steel |
|
Extruder
To extrude the raw materials and make them to the required shape and size of the puff snacks food by mould.
Model: SLG65, 70, 85
Capacity: 100kg/h to 500kg/h
Material: Screw materials 38CrMoAlstainless steel, carbon steel
|
|
Dryer
Baking puff snacks food.
Type: electrical, steam, gas fired, diesel fired heating type
Model: KX-3-5, KX-5-5, KX-5-8, KX-5-10, KX-7-10 Capacity: 100kg/h to 10 ton/h Material: stainless steel, carbon steel |
|
|
Flavoring roller
To mix the oil and flavors on the surface of the snacks food.
Type: single and double flavoring drum Motor: 0.75kw Capacity: 100kg/h to 500 kg/h Material: stainless steel |
7.Corn flakes corn chips making production processing machines line Main Features:
1. The screws are made by alloy steel (38CrMoAL) and special craft by nitriding process, The HRC hardness is around 60---62, it has good self-cleaning ability and does not need to discharge or clean the barrel and screw, when roasting or replacing of materials.
2. The extrusion barrel is constructed of carbon steel, is made by #45 steel, stainless steel coating.
3. The gearbox has automatic lubrication function, with extends gear life.
4. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.
5. SIEMENS(CHINA) brands electronic parts used in the controller box, make sure the extrusion process perfect.
6. Main Motor from SIEMENS(CHINA), ensure its powerful extrusion and excellent performance.
Packing and delivery
• Inside package is plastic film, outside is wooden or plywood case(based on the customers'
need).
• Only plastic film nude packing with wooden pallet.
• We can supply fumigation package and certificate.
