Quick Details
-
Technology:
-
Battery-free Electromagnetic Digitizer
-
Display Area (H x V):
-
476.64 x 268.11mm
-
Pressure Sensitivity:
-
8192 Levels
-
Native Resolution:
-
1920 X 1080
-
Hand Input Resolution:
-
5080 LPI (Lines per Inch)
-
Report Rate:
-
266RPS (Revolutions per Second)
-
Color:
-
Black
-
Place of Origin:
-
China
-
Brand Name:
-
Huion
Quick Details
-
Screen Size:
-
21.5" (Diagonal)
-
Type:
-
IPS Monitor
-
Aspect Ratio:
-
16:9
-
Technology:
-
Battery-free Electromagnetic Digitizer
-
Display Area (H x V):
-
476.64 x 268.11mm
-
Pressure Sensitivity:
-
8192 Levels
-
Native Resolution:
-
1920 X 1080
-
Hand Input Resolution:
-
5080 LPI (Lines per Inch)
-
Report Rate:
-
266RPS (Revolutions per Second)
-
Color:
-
Black
-
Place of Origin:
-
China
-
Brand Name:
-
Huion
Please follow us! New arrival!!

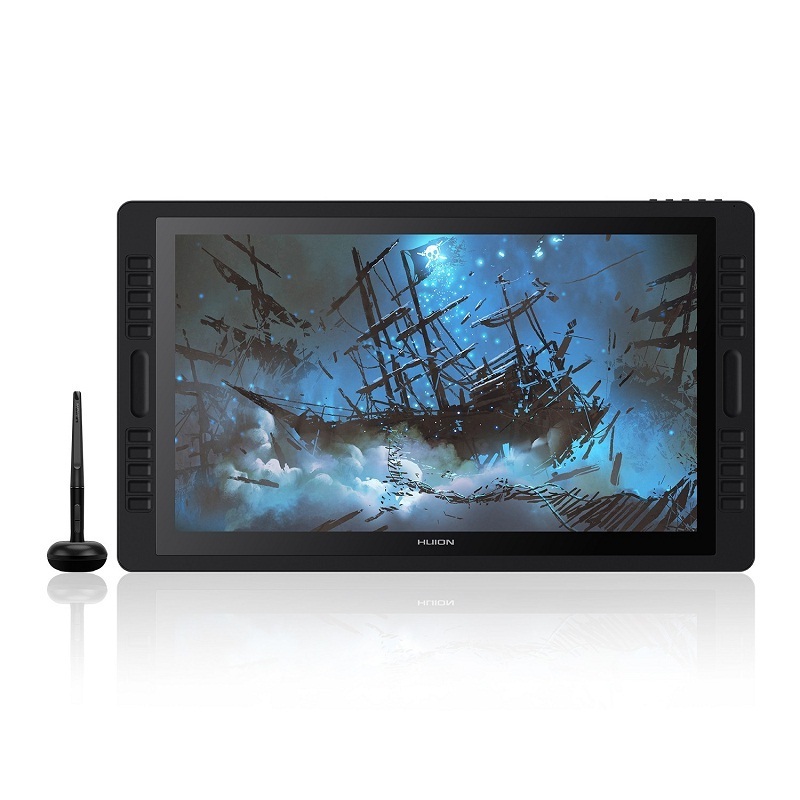

Huion KAMVAS Pro 22 Gamut 120%sRGB Full Lamination LCD Pen Display drawing Graphic Tablet Monitor
1. HUION Certificates : AS PICTURE BELOW.,
2. HUION Pattents: Inlucding Design Patent, Utility Patent and so on more than 100 international Patents
3. HUION Branding: HUION brand and Logo have been registered in most counries and area such as EU, US, Korea, Japan, India and so on.
Specification
| Technology | Battery-free Electromagnetic Digitizer |
| Type | IPS Monitor |
| Screen Size | 21.5" (Diagonal) |
| Aspect Ratio | 16:09 |
| Display Area (H x V) | 476.64 x 268.11mm |
| Pen Pressure | 8192 Levels |
| Viewing Angle (Typical) | H : 178° V : 178° |
| Pixel Pitch (H x V) | 0.24825 mm x 0.24825 mm |
| Native Resolution | 1920x1080 |
| Resolution | 5080 LPI (Lines per Inch) |
| Reading Height | 0.12mm 2048 PPI (Pixels per Inch) |
| Brightness | 250 cd/m2 |
| Contrast Ratio (Typical) | 1000:01:00 |
| Number of Colors | 16.7 M |
| Report Rate | 266RPS (Revolutions per Second) |
| Response Time | 8 ms |
| Video Interface | VGA DP HDMI |
| Data Communication Interface | USB 1.1 |
| Power Supply Type | External Adapter |
| Power Supply (Adapter) | Input 100-240 VAC, 50/60 Hz, Output 12VDC, 3A |
| Errors of Digital Pen Detecting | ±3mm (Tilted ±50°from Vertical) |
| OS Support | Windows 7 or later,mac OS X10.7.0 or later |
| OSD Language | English, Traditional Chinese and Simplified Chinese, etc. |
| Operation Temperature | 5-+40°C (41-104°F) |
| Dimensions/piece | 520mmx37mmx325mm |
| Out Carton Dimensions | 558mmx124mmx408mm |
| Net Weight/ piece | Net 4.5kg |
| Gross Weight/piece | 7kg |
Details
IPS HD pen display monitor
PS:Click photo below to know related model⇓
High Gamut 120% sRGB
8192 Levels of Pressure Sensitivity
Customizable Press on Keys: 20 press keys plus 2 touch bars, keep your favorite shortcuts at hand.To satisfy personal habit of use by left-handers and right-handers.
Wide viewing angle,perfect angle
Adjustable Stand: Sturdy and reliable, able to adjust within 20°~80° range easily.
Video Interface:HDMI,DP,VGA
Drawing Interface: USB cable
Power Adapter
Package Contents:
1x tablet monitor
1x Battery-free Pen for GT2201
1x HDMI cable
1x USB cable,
1x AC adapter,
1x power cable,
1xArtist glove,
1x pen holder (include 1x pen tip removal tool and 10x spare pen tips)
Compatible with windows7/8/10 and MAC 10.8 or later,
Compatible with almost Design software:PS,AI,SAI,LR,Painter,GIMP,Clip studio etc..
Production Flow:
All products will be tested many times during production and before shipment
Delivery
Huion offers door to door services by air or by sea just depend on your actual request. Such as DHL, UPS, TNT, FEDEX,EMS.
For delivery by air, it takes 3-6 working days to your office.
|
Product type |
Huion Pen DIsplay KAMVAS PRO 22 2019 |
|
Package |
Color box with export standard |
|
Delivery Detail |
3-7 days for samples; 15-20 days for batch goods. |
