Quick Details
-
Place of Origin:
-
Shandong, China
-
Machine Weight:
-
3400 kg
-
Marketing Type:
-
Hot Product 2022
-
System pressure:
-
16.5 mpa
-
Wheelbase:
-
1780 mm
-
Spread of axles:
-
1130 mm
-
Minimum ground clearance:
-
220mm
-
Walking speed:
-
13 km/h
-
Climb ability:
-
30
-
Minimum turning radius:
-
4500 mm
-
Steering system:
-
hydraulic steering
-
Steering angle:
-
33
-
Service brake:
-
Oil brake drum brake
Quick Details
-
Engine Brand:
-
YUNNEI
-
Power:
-
60 KW, 37 KW, 55 kw, 27HP, 76 KW, 90 KW
-
Brand Name:
-
AOWEI
-
Place of Origin:
-
Shandong, China
-
Machine Weight:
-
3400 kg
-
Marketing Type:
-
Hot Product 2022
-
System pressure:
-
16.5 mpa
-
Wheelbase:
-
1780 mm
-
Spread of axles:
-
1130 mm
-
Minimum ground clearance:
-
220mm
-
Walking speed:
-
13 km/h
-
Climb ability:
-
30
-
Minimum turning radius:
-
4500 mm
-
Steering system:
-
hydraulic steering
-
Steering angle:
-
33
-
Service brake:
-
Oil brake drum brake
Product Overview

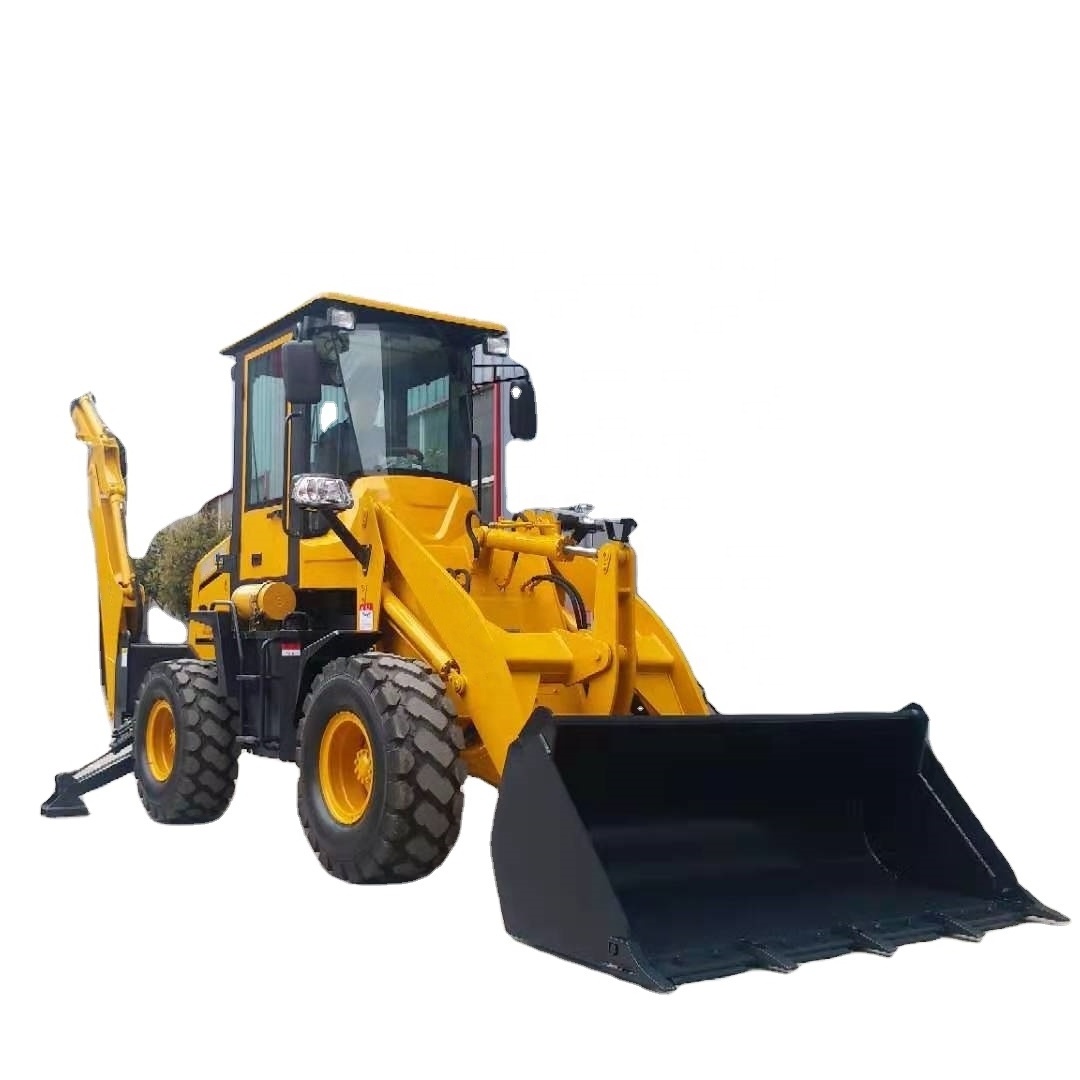

Chinese Cheap Backhoe Loaders
Small backhoe excavator features, shovel transport to ensure that the original load function is not affected, when the excavation part folding weight, excavation load part chassis support, the two parts do not affect each other, but also can help each other.Power is mainly equipped with a four-cylinder 490 engine, more than 50 horsepower, energy-saving and efficient, enough power 30% throttle can be normal excavation.When excavating, loading and exchanging, the seat rotates at any time, with wide sight and simple operation.The chassis part adopts isuzu weight axle, four-wheel drive is equipped with engineering tires, which has good cross-country assability.
Product Details
|
Model
|
AW10-50
|
AW10-20
|
AW15-26
|
AW15-28
|
AW25-30
|
|||||
|
Dimensions
|
6000*1410*2400mm
|
5500*1720*2650mm
|
5800*1850*2750mm
|
6200*1960*2850mm
|
6800*2040*2850mm
|
|||||
|
Operating Weight
|
2690 kg
|
3400 kg
|
4800 kg
|
5400 kg
|
6000 kg
|
|||||
|
Power
|
20 kw(27hp)
|
37 kw (50 hp)
|
55 kw (75 hp)
|
76 kw (104 hp)
|
92 kw (125 hp)
|
|||||
|
Gradeability
|
30°
|
30°
|
30°
|
30°
|
30°
|
|||||
|
Travel Speed
|
0 - 13 km/h
|
0 - 26 km/h
|
0 - 26 km/h
|
0 - 30km/h
|
0 - 30km/h
|
|||||
|
Working Pressure
|
16 MPa
|
16 MPa
|
16 MPa
|
16 MPa
|
16 MPa
|
|||||
|
Wheel Tread
|
1630 mm
|
1630 mm
|
1550 mm
|
1630 mm
|
1630 mm
|
|||||
|
Wheel Base
|
1780 mm
|
2670 mm
|
2670 mm
|
2670 mm
|
2670 mm
|
|||||
|
Tire Model
|
16.5-10
|
20.5 - 16
|
23.5 - 16
|
16/70 - 20
|
16/70 - 20
|
|||||
|
Tire Pressure
|
250 KPa
|
250 KPa
|
250 KPa
|
250 KPa
|
250 KPa
|
|||||
|
Transmission Type
|
Hydraulic
|
Hydraulic
|
Hydraulic
|
Hydraulic
|
Hydraulic
|
|||||
|
Braking System
|
Oil brake
|
Air Assist
|
Air Assist
|
Air Assist
|
Air Assist
|
|||||
|
Min. Turning Radius
|
4500mm
|
3500 mm
|
4000 mm
|
4500 mm
|
4500 mm
|
|||||
|
Loading Parameters
|
|
|
|
|
|
|||||
|
Rated Load
|
1000kg
|
1500 kg
|
2000 kg
|
2500 kg
|
3000 kg
|
|||||
|
Loader Capacity
|
0.8 cbm
|
0.75 cbm
|
1.0 cbm
|
1.25 cbm
|
1.5 cbm
|
|||||
|
Loader Max. Dumping Height
|
2200mm
|
2800 mm
|
3300 mm
|
3500 mm
|
3500 mm
|
|||||
|
Loader Max. Dumping Distance
|
1000mm
|
800 mm
|
900 mm
|
900 mm
|
900 mm
|
|||||
|
Loader Max. Breakout Force
|
42kn(4284 kg)
|
36 kn (3672 kg)
|
36 kn (3672 kg)
|
42 kn (4284 kg)
|
42 kn (4284 kg)
|
|||||
|
Excavation Parameters
|
|
|
|
|
|
|||||
|
Bucket Capacity
|
0.1cbm
|
0.1 cbm
|
0.15 cbm
|
0.2 cbm
|
0.3 cbm
|
|||||
|
Max. Excavation Depth
|
1500mm
|
2000 mm
|
2700 mm
|
2600 mm
|
2600 mm
|
|||||
|
Max. Excavation Height
|
3000mm
|
3300 mm
|
4200 mm
|
4300 mm
|
4400 mm
|
|||||
|
Max. Excavation Radius
|
2700mm
|
2900 mm
|
4600 mm
|
4600 mm
|
4600 mm
|
|||||
|
Max. Dumping Height
|
1600mm
|
1850 mm
|
2200 mm
|
2300 mm
|
2300 mm
|
|||||
|
Max. Breakout Force
|
28 kn (2856 kg)
|
25 kn (2550 kg)
|
28 kn (2856 kg)
|
28 kn (2856 kg)
|
28 kn (2856 kg)
|
|||||
