Quick Details
-
Brand Name:
-
OCEAN LINK
-
Power:
-
15KW
-
Dimension(L*W*H):
-
3400x2200x1400mm
-
Weight:
-
1800kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts, Online support, Video technical support
-
Fixed mode:
-
Flate plate table /auto feding plate optional
-
Cutter head function:
-
Vibrate full cut; kiss cut; V-cut; Rotary cut
-
Safety device:
-
Using infrared sensors, responsive, safe and reliable.
-
Translational velocity:
-
800-1200mm/s
-
Cutting speed:
-
200-800mm/s(according to different cutting materials)
-
Cutting thickess:
-
≤22mm(according to different cutting materials)
-
Repated accuracy:
-
≤0.1mm
-
Instruction system:
-
HP-GL compatible format
-
Control system:
-
TC6828(OLT custom made)
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
None
-
Certification:
-
CE Certification
Quick Details
-
Voltage:
-
380v/3phase
-
Marketing Type:
-
Hot Product
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
OCEAN LINK
-
Power:
-
15KW
-
Dimension(L*W*H):
-
3400x2200x1400mm
-
Weight:
-
1800kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts, Online support, Video technical support
-
Fixed mode:
-
Flate plate table /auto feding plate optional
-
Cutter head function:
-
Vibrate full cut; kiss cut; V-cut; Rotary cut
-
Safety device:
-
Using infrared sensors, responsive, safe and reliable.
-
Translational velocity:
-
800-1200mm/s
-
Cutting speed:
-
200-800mm/s(according to different cutting materials)
-
Cutting thickess:
-
≤22mm(according to different cutting materials)
-
Repated accuracy:
-
≤0.1mm
-
Instruction system:
-
HP-GL compatible format
-
Control system:
-
TC6828(OLT custom made)
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
None
-
Certification:
-
CE Certification

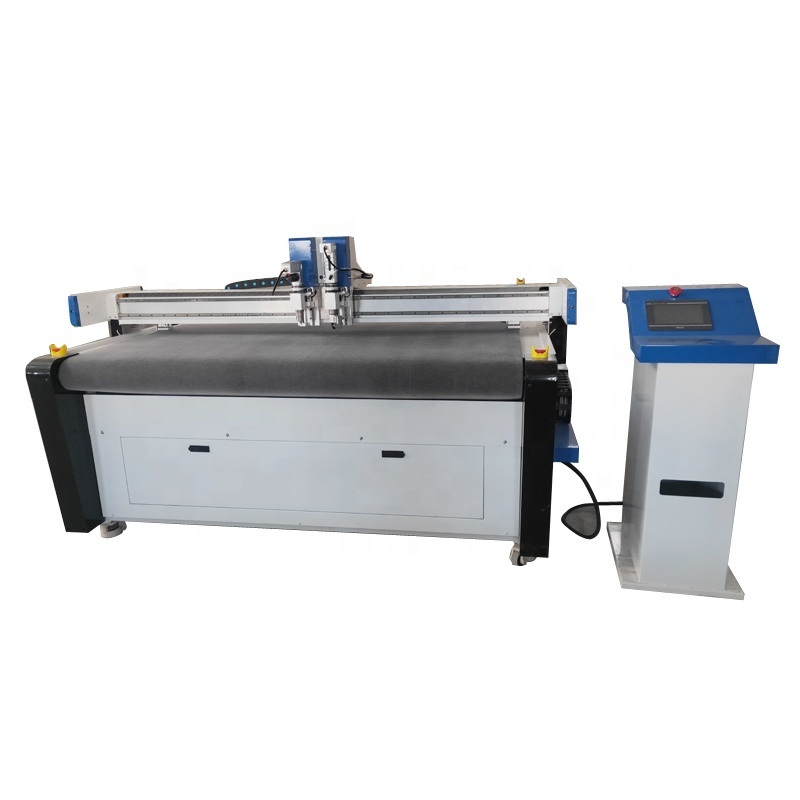

1625 vibrate knife cutting machine
|
Name |
Vibrate knife cutting machine |
|
X Y working area |
1600*2500mm |
|
Z working area |
50mm |
|
Working voltage |
380V three phase |
|
Maximum cutting speed |
30000mm/min |
|
Control system |
EOE |
|
Display method |
Chinese and English LCD touch screen |
|
Reducer |
Planetary reducer |
|
Table |
Aluminum plate bellows adsorption table |
|
Motors |
SERVO |
|
Guide |
EOE |
