Model
|
|
SL90
|
SL135
|
SL225
|
SL450
|
SL585
|
|
|
Max. static load KN
|
|
900
|
1350
|
2250
|
4500
|
5850
|
|
|
Max. rotary speed r/min
|
|
300
|
300
|
300
|
300
|
300
|
|
|
Max. working pressure MPA (psi)
|
|
25
|
35
|
35
|
35
|
35
|
|
|
|
|
-3570
|
-5000
|
-5000
|
-5000
|
-5000
|
|
|
Clearance between bail and gooseneck
|
|
435
|
495
|
540
|
549
|
584
|
|
|
mm (in)
|
|
-17 1/8
|
-19 1/2
|
-21 1/4
|
-21 5/8
|
-23
|
|
|
Center pipe diameter mm(in)
|
|
64 (2 1/2)
|
64 (2 1/2)
|
75 (3)
|
75 (3)
|
75 (3)
|
|
|
Center pipe upper screw thread
|
Connect to center pipe API In
|
4 1/2
|
4 1/2
|
6 5/8
|
7 5/8
|
7 5/8
|
|
|
|
|
REG LH
|
REG LH
|
REG LH
|
REG LH
|
REG LH
|
|
|
Center pipe lower
|
Connect to Kelly API in
|
6 5/8
|
6 5/8
|
6 5/8
|
6 5/8
|
6 5/8
|
|
|
Screw thread
|
|
REG LH
|
REG LH
|
REG LH
|
REG LH
|
REG LH
|
|
|
Gooseneck connection screw thread
|
|
3″-8 teeth/inch
|
3″-8 teeth/inch
|
4″-8 teeth/inch
|
4″-8 teeth/inch
|
4″-8 teeth/inch
|
|
|
Dimension (L x W x H) mm
|
|
2505×758×840
|
2505×758×840
|
2880×1026×1065
|
3015×1096×1065
|
3115×1224×990
|
|
|
Weight kg
|
|
940
|
1345
|
2402
|
3310
|
3230
|
|
|
item
|
value
|
|
Condition
|
New
|
|
Warranty
|
6 Months
|
|
Applicable Industries
|
Energy & Mining
|
|
Weight (KG)
|
20
|
|
Showroom Location
|
Egypt, Italy, Peru
|
|
Video outgoing-inspection
|
Provided
|
|
Machinery Test Report
|
Provided
|
|
Marketing Type
|
Hot Product 2019
|
|
Place of Origin
|
China
|
|
|
Shandong
|
|
Brand Name
|
QDJC
|
|
Type
|
Water Swivel
|
|
Machine Type
|
Drilling Equipment
|
|
Material
|
Stainless steel
|
|
Processing Type
|
Forging
|
|
Use
|
Well Drilling
|
|

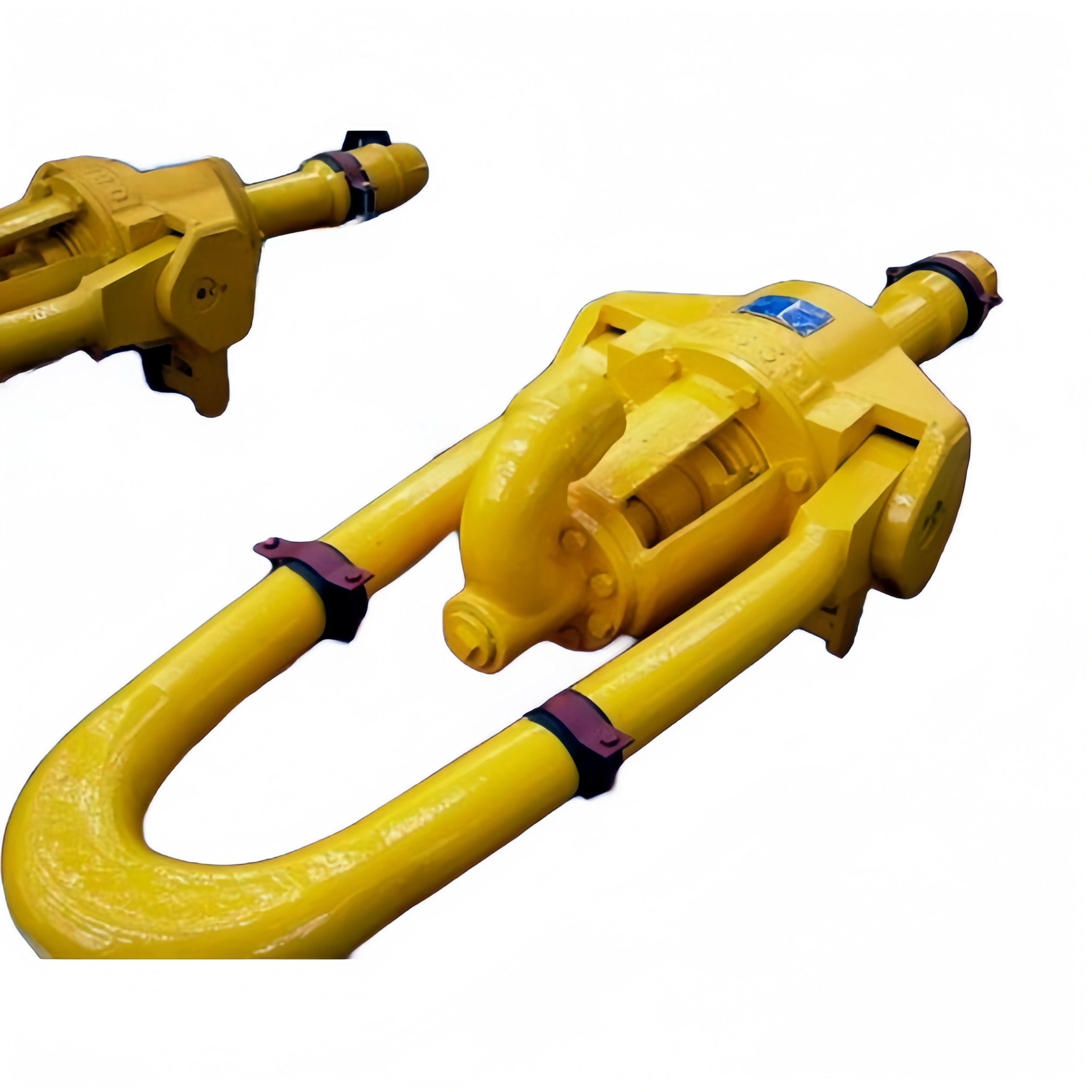

Product name
|
Water Swivel
|
|
Application
|
Water Swivel For Drilling Rig Swivel For Oilfield
|
