Quick Details
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
3000-6500K
-
Application:
-
Shop, Shopping Mall, Showroom, shop, supermarket, booth
-
Product Weight（kg）:
-
2
-
Input Voltage(V):
-
AC100-240V
-
Lamp Luminous Flux(lm):
-
3360lm±5%
-
Model Number:
-
NGE-SMD01-RD28W
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
NGE
-
Product Name:
-
28W 38W 48W 60W rectangular led downlight
-
Rated:
-
28W
-
Working Temperature(℃):
-
-30 - 45
-
Adjustable angle:
-
Vertical 60degree
-
Power Factor(PF>):
-
0.90
-
Light Efficiency:
-
110-120lm/w
-
Shape:
-
Rectangular
-
Material:
-
AL housing/PCB+tempered glass
-
28W square led downlight:
-
Replace 70w traditional rectangular downlight
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
110-120
-
Lamp Body Material:
-
Aluminum Alloy
-
Install Style:
-
Embeded
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
3000-6500K
-
Application:
-
Shop, Shopping Mall, Showroom, shop, supermarket, booth
-
Product Weight（kg）:
-
2
-
Input Voltage(V):
-
AC100-240V
-
Lamp Luminous Flux(lm):
-
3360lm±5%
-
Model Number:
-
NGE-SMD01-RD28W
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
NGE
-
Product Name:
-
28W 38W 48W 60W rectangular led downlight
-
Rated:
-
28W
-
Working Temperature(℃):
-
-30 - 45
-
Adjustable angle:
-
Vertical 60degree
-
Power Factor(PF>):
-
0.90
-
Light Efficiency:
-
110-120lm/w
-
Shape:
-
Rectangular
-
Material:
-
AL housing/PCB+tempered glass
-
28W square led downlight:
-
Replace 70w traditional rectangular downlight

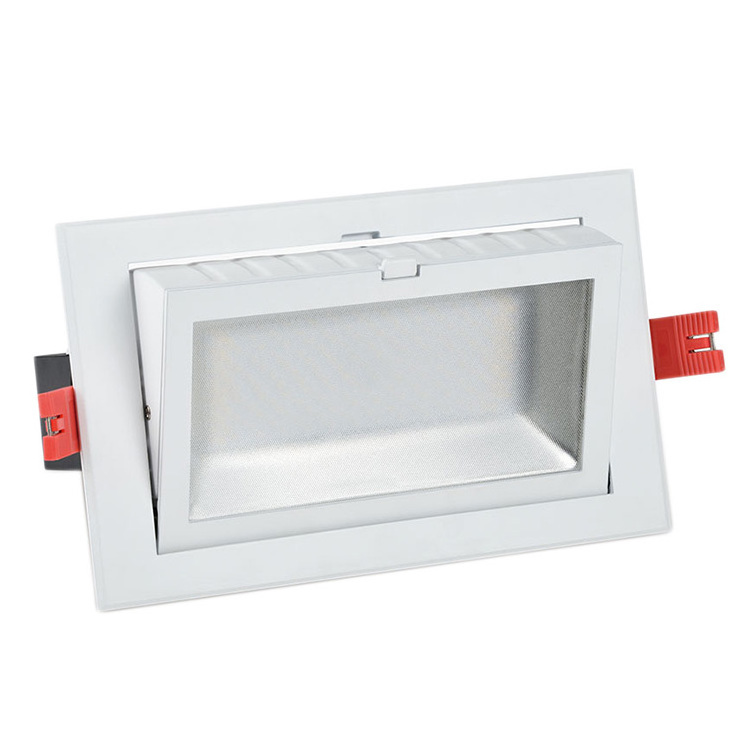

20W 28W 38W recessed rectangular led down light/rectangle led downlight/rectangular ceiling light
NGE Rectangular LED downlight is the ideal replacement for the conventional HID downlight, energy-saving above 60%. Designed with advanced heat dissipation structure, used high brightness Samsung SMD LED and super constant current driver, NGE rectangular LED downlight is much better than most similar square LED downlight
Benefits
Replacement for HID 70/150W downlight
Energy saving over 50%
Environmental protection, no pollution
Significant reduction in maintenance cost
High CRI>80
Features
High lumen Samsung LED, 110-120lm/w for whole lighting, CRI ≥ 80;
Excellent driver wide input AC100V~240V, PF>0.90, low THD<15%.
Good thermal structure, compliance with the U.S.Energy Star, L70>35,000 hrs.
Humanized rotation design, 0-60 degree adjustable.
Dimmable and emergency items available.
CE,RoHS, SAA and C-Tick approved.
5 years warranty.
Product Specification
| Specification for 20W 28W 38W recessed rectangular led down light/rectangle led downlight/rectangular ceiling light | ||
|
General Information |
Product Type | 28W rectangular led downlight |
| Product Size |
240*145*135mm |
|
| Cutout |
227*130mm |
|
| Product Color | white | |
| Electric parameter | Driver Brand | Lifud |
| Input Voltage | AC100-240V/50-60Hz | |
| Power | 20W/28W/38W/48W/60W | |
| Power Factor (PF) | >0.90 | |
|
Optical Parameter
|
LED Brand | Samsung G2 5630 |
| CRI | >80 | |
| Color Temperature (CCT) | 2700K-7000K | |
| Luminous Flux | 2360lm±5% | |
|
Luminous Efficiency |
110-120lm/w | |
| Beam angle | 120 ° | |
| Others | Lifetime | 50,000Hr |
| Operating temperature | -30℃~45℃ | |
| Warranty | 3 years | |
| Materials | AL housing+tempered glass +AL board | |
| Installation | Recessed | |
| Application | shops, supermarkets.,etc | |
Series Products of 20W 28W 38W recessed rectangular led down light/rectangle led downlight/rectangular ceiling light
|
Item No. |
Input Voltage |
Power |
Luminous Flux |
Luminous Efficiency |
CRI |
PF |
Cutout |
|
NGE-SMD01-RD20W |
AC100-240V |
20W |
2400lm±5% |
110-120lm/w |
>80 |
>0.90 |
227*130mm |
|
NGE-SMD01-RD28W |
AC100-240V |
28W |
2360lm±5% |
110-120lm/w |
>80 |
>0.90 |
227*130mm |
|
NGE-SMD01-RD38W |
AC100-240V |
38W |
4560lm±5% |
110-120lm/w |
>80 |
>0.90 |
227*130mm |
|
NGE-SMD01-RD48W |
AC100-240V |
48W |
5760lm±5% |
110-120lm/w |
>80 |
>0.90 |
227*130mm |
|
NGE-SMD01-RD60W |
AC100-240V |
60W |
7200lm±5% |
110-120lm/w |
>80 |
>0.90 |
215*125mm |
Application
• Shop
• Supermarket
• Department store
•
Showroom
|
Item No. |
Quantity/Carton |
Net weight/Pcs |
Gross Weight/ Carton |
Carton Size |
Notes |
|
Rectangular led downlight |
8 |
4.0kg |
18.5kg |
59*38.5*42.5mm |
Each light packed by one PE bag, and use paper pulp packing in each box. |
