- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
RUICAI
-
Voltage:
-
240V
-
Dimension(L*W*H):
-
990*900*1330mm
-
Weight:
-
120 kg
-
PLC Brand:
-
RUICAI
-
Name:
-
Paper Counting Machine
-
Model:
-
RC-GY1
-
Paper counting speed:
-
2000 sheets / min
-
Adapt to paper range:
-
25g/m2-210g/m2
-
nsert sign:
-
Every 2~1000 sheets
-
Maximum stack height:
-
250mm
Quick Details
-
Type:
-
Paper Cutting Machine
-
Production Capacity:
-
2000 sheets / min
-
Max. workable width:
-
780mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
RUICAI
-
Voltage:
-
240V
-
Dimension(L*W*H):
-
990*900*1330mm
-
Weight:
-
120 kg
-
PLC Brand:
-
RUICAI
-
Name:
-
Paper Counting Machine
-
Model:
-
RC-GY1
-
Paper counting speed:
-
2000 sheets / min
-
Adapt to paper range:
-
25g/m2-210g/m2
-
nsert sign:
-
Every 2~1000 sheets
-
Maximum stack height:
-
250mm
Welcome to our store
Ruicai Electron is Chinese Professional manufacturer since 1995. We provide reliable quality machines and looking forwarder to
"Long term business relationship, NOT one time business".
Here is our :

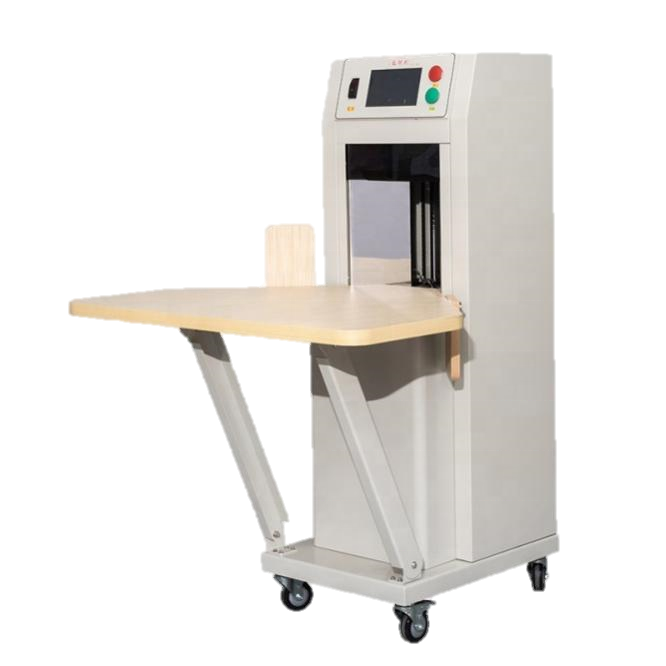

High Speed Automatic Paper Counting Machine Paper Sheet Counter Machine Numbering Machine For Paper
Product Description
Specification
|
Name
|
High Speed Automatic Paper Counting Machine Paper Sheet Counter Machine Numbering Machine For Paper
|
|
|
Model
|
RC-GY1
|
|
|
Paper counting speed
|
2000 sheets / min
|
|
|
Adapt to paper range
|
25g/m2—210g/m2
|
|
|
Suitable for paper size
|
Maximum:546(length)×788(W)mm,
minimum:100(L)×150(width)mm |
|
|
nsert sign
|
Every 2～1000 sheets
|
|
|
Maximum stack height
|
250mm
|
|
|
Electric source
|
AC 240VAC,50/60Hz(single phase)
（Special voltage can be customized） |
|
|
Table Height
|
760mm
|
|
|
Fuselage size
|
990(L)×900(W)×1330(H)mm
|
|
|
Machine weight
|
120kg
|
|
|
Packing wooden box size
|
105（L）x 95(W）x 148（H） cm
|
|
|
Total packaging weight
|
150kg
|
|
|
Paper counting machine is a full automatic paper counting machine composed of microcomputer controller and mechanical linkage mechanism. Its main functions and features are as follows:
FUNCTION
There are four operation modes: counting paper mode, equal quantity mode, programming mode and comparison mode. These four modes can be converted arbitrarily.
1. Counting and counting paper mode: this mode is a simple counting function. If this mode is selected, the machine will not insert the sub volume function.
2. Programming mode: this mode is the function of unequal volumes , that is , the number of inserted and signed volumes of each volume is not equal. This cycle can be set (2 - 9 times) by setting a group ( the number of volumes of 500 volumes can be set in each group) .
3. Equal quantity mode: the quantity of each volume, the number of inserted labels and the total number of papers can be set arbitrarily on the touch screen and can be modified. The machine also has the functions of setting the initial parameters of the machine, such as label tape length, pressboard operation mode, data storage, high-speed and low-speed selection, etc.
4. Comparison mode: this function is used to check whether the quantity is correct. For example, if the input quantity is 100 sheets, the machine will automatically alarm if there are less than 100 sheets after counting.
CHARACTERISTIC
The machine is mainly characterized by modularization, advanced microcomputer control system and unique mechanical design concept. The machine modularization is circuit,head, vacuum generator and frame. The machine runs stably and counts accurately. The parameter setting and function display are all on the touch screen, and the operation is simple, convenient and intuitive.
1: The alarm is monitored in real time anddisplayed on thetouch screen at the same time, and the operation is clear at a glance.
2: It is bilingual in English and Chinese, which can be converted to facilitate use in different regions.
3: The counting speed is fast, and the speed is 20 0 0 sheets /min, which can be set arbitrarily. The counting speed can be displayed in real time.
4: Label paper tape installation is more convenient and fast.
|
|
|
