Quick Details
-
Brand Name:
-
eOUTIL
-
Model Number:
-
DL420
-
item Size:
-
230xx28x64mm
-
Net Weight:
-
238g
-
Horizontal Measuring Range:
-
0-360°(4x90°)
-
Accuracy:
-
±0.1° at 0° and 90°: ±0.2° at the rest
-
Resolution:
-
0.05°
-
Measuring Range:
-
degrees, %slope or pitch, mm/m, IN/FT
-
Screen display:
-
Backlight LCD
-
Magnets base:
-
Yes
-
Operated Power:
-
DC 3V /2*LR03 AAA batteries
Quick Details
-
Grade:
-
DIY, Industrial
-
Warranty:
-
12 Months
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
eOUTIL
-
Model Number:
-
DL420
-
item Size:
-
230xx28x64mm
-
Net Weight:
-
238g
-
Horizontal Measuring Range:
-
0-360°(4x90°)
-
Accuracy:
-
±0.1° at 0° and 90°: ±0.2° at the rest
-
Resolution:
-
0.05°
-
Measuring Range:
-
degrees, %slope or pitch, mm/m, IN/FT
-
Screen display:
-
Backlight LCD
-
Magnets base:
-
Yes
-
Operated Power:
-
DC 3V /2*LR03 AAA batteries

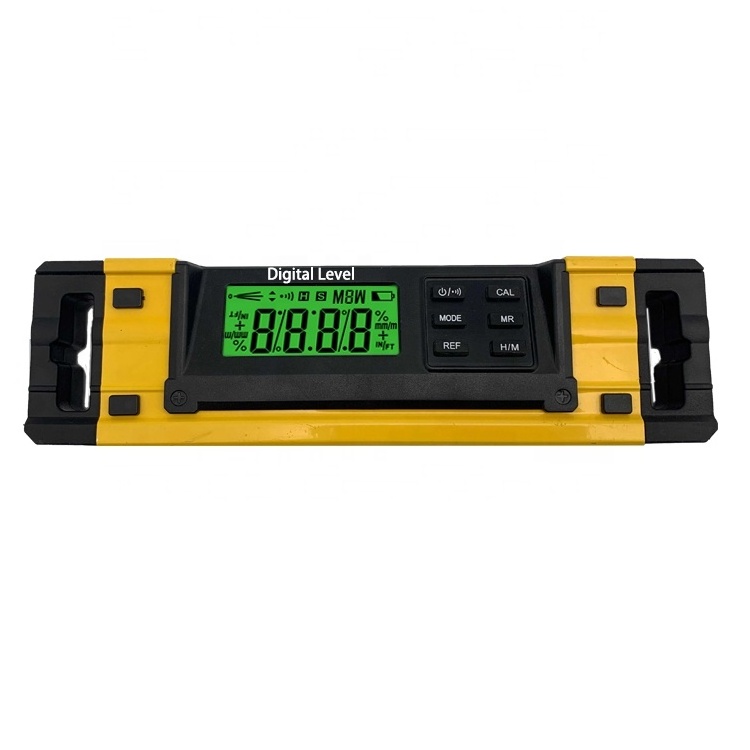

230mm IP54 Standard LCD Backlight Measured Digital Level Tool
| Item code | DL420 |
| Item size (cm) | 230xx28x64mm |
| Net weight(g) | 238g |
| Body Material | ABS + alumimum |
| Packing details | color box + soft bag |
| Carton size (CBM)/Qty | 0.035CBM/25pcs |
| MOQ | 100pcs |
| Screen display | Backlight LCD |
| Horizontal level measuring range |
0-360°(4x90°) |
| Resolution |
0.05° |
| Accuracy |
±0.1° at 0° and 90°: ±0.2° at the rest |
| Measuring modes |
degrees, %slope or pitch, mm/m, IN/FT |
| Magnet Location |
on the base bottom
|
| Other Features |
- Memory & memory recall (8 measurements) |
| Operated Power | DC 3V /2*LR03 AAA batteries |
| Payment terms |
1) T/T (30% deposit before production, 70% balance against copy of B/L) 2) L/C at sight |
| Lead time |
25-45days after receiving the deposit |
| Service | OEM/OEM avaiable, Customized service |
| Samples | Available |
