Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GP MOTOR
-
Model Number:
-
AC 190
-
Voltage:
-
230V
-
Motor:
-
External Rotor Motor
-
Power Input:
-
220V 120V 24/48V
-
Bearing:
-
NMB maintenance-free ball bearing
-
Impeller:
-
PA66 Propylene with Fibreglass reinforce
-
Lead Wire:
-
AWG#18 1007
-
Type of protection:
-
IP44
-
Safety:
-
Electronic protection
-
Insulation Class:
-
Class "B" or "F"
-
Speed Control:
-
0-10v or PWM signal
-
Life time:
-
50000 hours (L10) at 40°C room
Quick Details
-
Applicable Industries:
-
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Other, Advertising Company
-
Electric Current Type:
-
AC
-
After-sales Service Provided:
-
Free spare parts
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GP MOTOR
-
Model Number:
-
AC 190
-
Voltage:
-
230V
-
Motor:
-
External Rotor Motor
-
Power Input:
-
220V 120V 24/48V
-
Bearing:
-
NMB maintenance-free ball bearing
-
Impeller:
-
PA66 Propylene with Fibreglass reinforce
-
Lead Wire:
-
AWG#18 1007
-
Type of protection:
-
IP44
-
Safety:
-
Electronic protection
-
Insulation Class:
-
Class "B" or "F"
-
Speed Control:
-
0-10v or PWM signal
-
Life time:
-
50000 hours (L10) at 40°C room

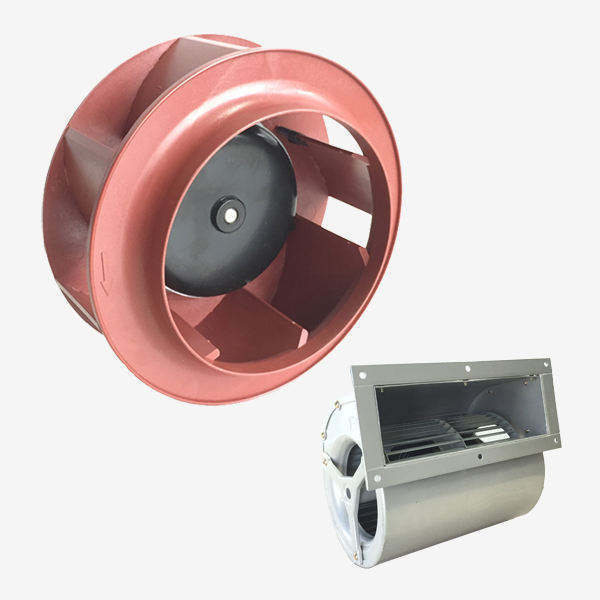

Industrial High Pressure Ac Ec Dc Motor 12V 24V 220V 8000 Cfm Blower Impeller Backward Curved Centrifugal Fan For Kitchen Hood
DATASHEET DOWNLOAD
|
Electrical Parameters |
|
|
Motor |
AC external rotor motor |
|
Insulation Class |
Class "B" or "F" |
|
Speed Control
|
AC speed controller |
|
Dielectric Strength
|
5mA max. at 1500VAC 50Hz/s between frame and (+)terminal
|
|
Material of Impeller |
PA66 Propylene with Fibreglass reinforce |
| Bearing System | Dual NMB maintenance-free ball bearing |
| Life time | 30000 hours (L10) at 40 ° C room , humidity 15%~65%RH |
|
Lead Wire
|
AWG#22 UL1007 (Controls
), AWG#18 UL1007 (Mains
)
|
| Approval | CE, CCC, ErP2015 and RoSH compliance |
| Warrent | 18 months after delivery |
|
Specification |
|||||||||
|
Item Code: RBA190045 |
|||||||||
|
Rated
|
Frequency
|
Rated
|
Input
|
Speed
|
Air Flow
|
Air Flow
|
Static Pressure
|
Noise
|
Net Weight (Kg) |
| 230V | 50/60 | ≤0.26 | 58 | 2500 | 335 | 570 | 330 | 62 | 1.2 |
|
24/48 |
/ |
≤2.13/1.06 |
51 |
2950 |
365 |
620 |
480 |
68 |
1.0 |
|
Outline Drawing |
|||||||||
|
|
| Characteristic Curves | Wire Diagran | |
| Cable Color | Function | |
| Brown | L | |
| Blue | N | |
| Yellow / Green | PE | |
| Red | +10V output | |
|
Yellow
|
0-10VDC / PWM
|
|
| Blue |
GND |
|
| White | Tach output | |
|
