Quick Details
-
Peak:
-
50±10A
-
Operating temperature range:
-
'-40~+70℃
-
Size:
-
L140*W26*T9mm
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Maximal continuous discharging current:
-
15A
-
Balancer:
-
yes
-
Peak:
-
50±10A
-
Operating temperature range:
-
'-40~+70℃
-
Size:
-
L140*W26*T9mm

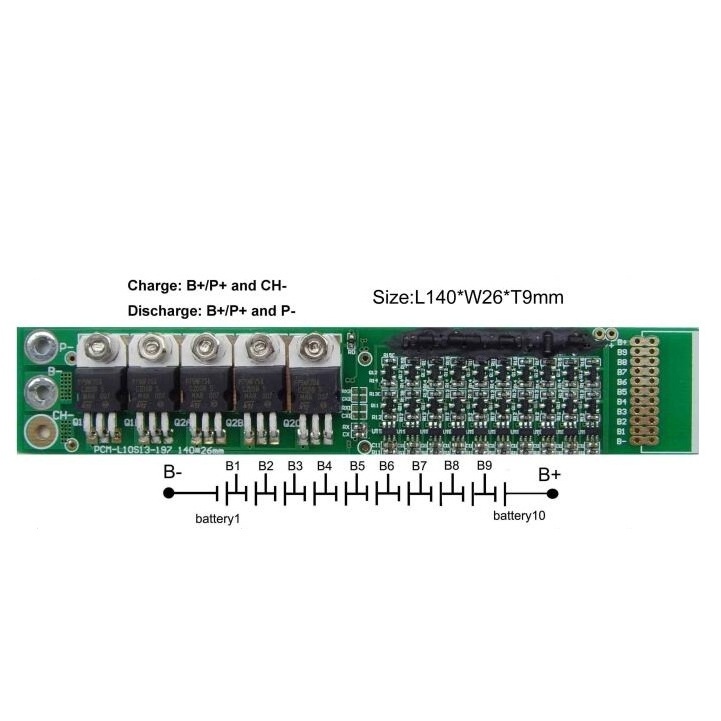

High quality battery management system pcm/ bms 37V 10s 15A for li-ion /lifepo4 battery packs
Specification:
| SmarTEC TECHNOLOGY | ||||
| Protection Circuit Module Specifications For 37V Li-ion Battery Pack | ||||
| model : PCM-L10S13-197(10S) | ||||
| No. | test items | criterion | ||
| 1 | Voltage | Charging voltage | DC:42V CC/CV | |
| Balance voltage for single cell | 4.20±0.025V | |||
| 2 | Current | Balance current for single cell | 84±10mA | |
| Current consumption | ≤20μA | |||
| Maximal continuous charging current | 10A | |||
| Maximal continuous Discharging current | 15A | |||
| 3 | Over charge Protection | Over charge detection voltage | 4.28±0.025V | |
| Over charge detection delay time | 0.7S—1.3S | |||
| Over charge release voltage | 4.10±0.05V | |||
| 4 | Over discharge protection | Over discharge detection voltage | 3.0±0.062V | |
| Over discharge detection delay time | 14mS—26mS | |||
| Over discharge release voltage | 3.2±0.1V | |||
| 5 | Over current protection | Over current detection voltage | 0.6V | |
| Over current detection current | 50±10A | |||
| Detection delay time | 8ms—16ms | |||
| Release condition | cut load | |||
| 6 | Short protection | Detection condition | Exterior short circuit | |
| Detection delay time | 200-500us | |||
| Release condition | cut load | |||
| 7 | Resistance | Protection circuitry(MOSFET)B-toP- | ≤30mΩ | |
| 8 | Temperature | Temperature switch | -40~+85℃ | |
| Storage Temperature Range | -40~+125℃ | |||
