Quick Details
-
Input ports:
-
5xHDMI
-
Output ports:
-
HDMI OPTICAL RCA
-
Support:
-
Ultra HD 4K2K max; 3D 1080p/24 max
-
Audio output::
-
RCA L/R 5.1CH/7.1CH
-
Shipping:
-
per custmer requirement
-
HDMI version:
-
1.4
-
production lead time:
-
According to the quantity
-
Hot Plug-and-Play:
-
Yes
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Item Name:
-
HDMI Switcher
-
Max baud rate:
-
9.95Gbps
-
Input ports:
-
5xHDMI
-
Output ports:
-
HDMI OPTICAL RCA
-
Support:
-
Ultra HD 4K2K max; 3D 1080p/24 max
-
Audio output::
-
RCA L/R 5.1CH/7.1CH
-
Shipping:
-
per custmer requirement
-
HDMI version:
-
1.4
-
production lead time:
-
According to the quantity
-
Hot Plug-and-Play:
-
Yes

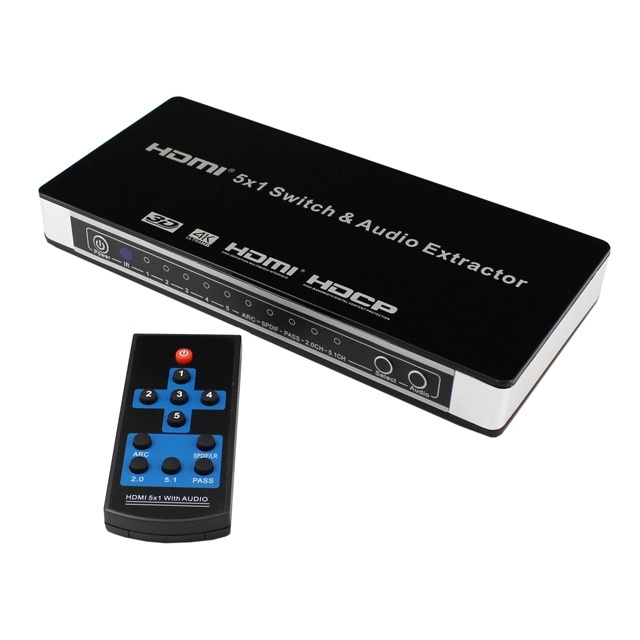

5x1 HDMI switcher, switch HDMI with Remote control for 5.1 home theater
INTRODUCTION
5 Port HDMI Switch & Audio Extractor Toslink/RCA stereo outputs with Ultra HD 4K ARC EDID setting allows you to connect five HDMI input to one HDMI output. It also allows you to connect to a 7.1 channel digital surround on HDMI output or 5.1 channel digital surround sound on the Toslink digtital output or 2.0 channel PCM audio on the RCA stereo output
FEATURE
Input: HDMI x 5.
Output: HDMI x 1, Toslinkx 1, Stereo RCA x 1.
HDMI version: HDMI 1.4, HDCP 1.4
Supports Ultra HD 4Kx2K@30Hz.
Supports Full HD.
Supports 3D.
Supports 12-bit Deep Color per channel, maximum 36-bit all channels.
Supports 3.0Gbps TMDS/300MHz pixel clock rate per channel, maximum
total TMDS throughput is 9.95Gbps.
Supports uncompressed audio such as LPCM.
Supports compressed audio such as DTS Digital, Digital, DTS-HD,
and TrueHD.
Supports HDMI pass-through.
Supports up to 7.1CH digital surround on HDMI output.
Supports up to 5.1CH digital surround on Toslink output.
Supports up to 2.0 channel analog stereo on Stereo output.
Supports Standard Audio,DSD Audio, and HD(HBR) Audio.
Supports ARC(Audio Return Channel).
PRODUCT PICTURES
HDMI resolution................................................Ultra HD 4K2K max; 3D 1080p/24 max
Support video color format...............................36-bit Deep Color all channels maximum
Audio output.....................................................HDMI pass-through up to 7.1CH/RCA L/R output stereo audio /toslink output up to 5.1 ch
Max bandwidth per channel.............................300MHz
Max baud rate per display...............................9.95Gbps
Input/Output TMDS signal...............................0.5~1.5V p-p(TTL)
Input/Output DDC signal.................................5V p-p(TTL)
Input cable distance........................................≤50ft/15m 24 AWG HDMI high speed
Cable at1080P@24bit 60Hz
Output cable distance.....................................≤50ft/15m 24 AWG HDMI high speed
Cable at1080P@24bit 60Hz
Operating Temperature range........................5°F to 131°F / -15°C to 55°C
Operating Humidity range..............................5% to 90% RH(No Condensation)
Dimension(LxWxH)........................................218x106x28mm
Weight...........................................................318g
Max working current......................................1A
External Power Supply..................................Input:AC(50/60Hz) 100V-240V;Output: DC 5V/1A
