Quick Details
-
Model Number:
-
broach
-
Coating:
-
TIN/TIALN/TICN
-
Material:
-
HSS M42/M35
-
Accuracy:
-
ClassA,AA
-
Function:
-
broach tool
Quick Details
-
Type:
-

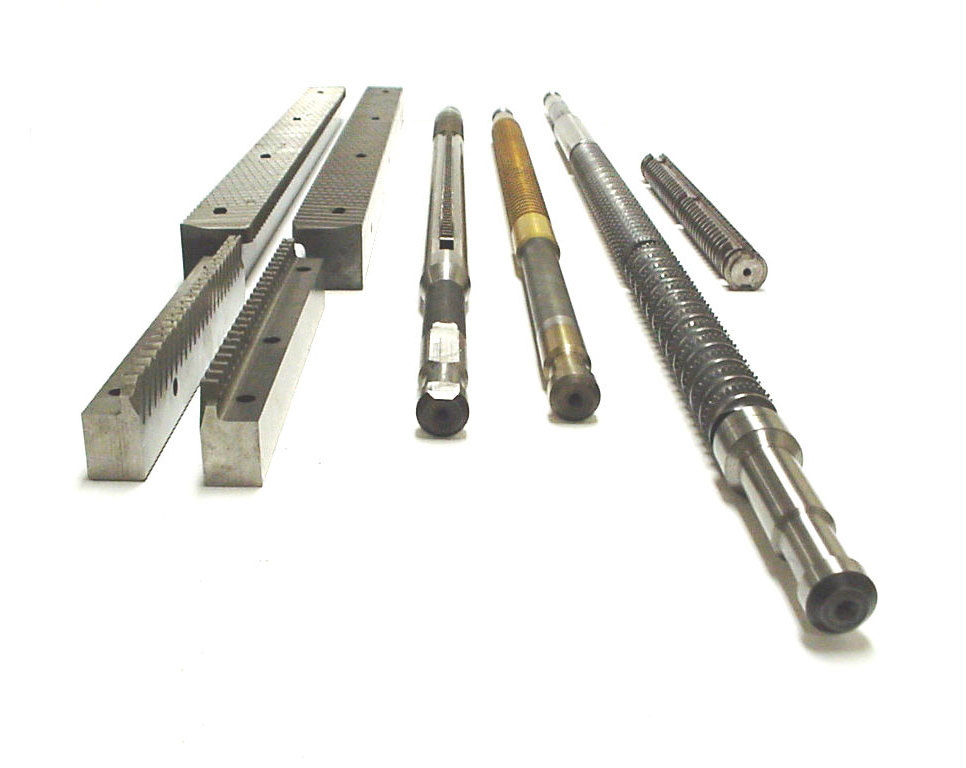

Round broach, keyway broach,Involute spline broch
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DS
-
Model Number:
-
broach
-
Coating:
-
TIN/TIALN/TICN
-
Material:
-
HSS M42/M35
-
Accuracy:
-
ClassA,AA
-
Function:
-
broach tool
Product Description
|
BROACH SIZE
|
SIZE IN MM
|
TOLERANCE
|
BROACH TOTAL LENGHT
|
KEYWAY DEPTH
|
SHIMS
|
NO.OF CUTS
|
LENGHT OF CUT IN STEEL 50 (min and max)
|
MAX PRESSURE
|
|
1/16”-A
|
1,5875 mm
|
0
|
127 mm
|
0.70 mm
|
-
|
1
|
6-30 mm
|
176 kg
|
|
3/32”-A
|
2,3813 mm
|
0.047244094
|
127 mm
|
0.90 mm
|
-
|
1
|
6-30 mm
|
353 kg
|
|
1/8”-A
|
3,175 mm
|
0.200787402
|
127 mm
|
1.30 mm
|
1
|
2
|
6-30 mm
|
294 kg
|
|
3/32”-B
|
2,3813 mm
|
0.047244094
|
172 mm
|
0.90 mm
|
-
|
1
|
8-42 mm
|
421 kg
|
|
1/8”-B
|
3,175 mm
|
0.200787402
|
172 mm
|
1.30 mm
|
1
|
2
|
8-42 mm
|
326 kg
|
|
5/32”-B
|
3,9688 mm
|
0.149606299
|
172 mm
|
1.70 mm
|
1
|
2
|
8-42 mm
|
598 kg
|
|
3/16”-B
|
4,7625 mm
|
0.0051/ +0.0254
|
172 mm
|
2.00 mm
|
1
|
2
|
8-42 mm
|
843 kg
|
|
3/16”-C
|
4,7625 mm
|
0.0051/ +0.0254
|
299 mm
|
2.00 mm
|
1
|
2
|
10-64 mm
|
698 kg
|
|
¼”-C
|
6,35 mm
|
0.0051/ +0.0254
|
299 mm
|
2.80 mm
|
1
|
2
|
10-64 mm
|
1143 kg
|
|
5/16”-C
|
7,9375 mm
|
0.0051/ +0.0254
|
299 mm
|
3.50 mm
|
1
|
2
|
10-64 mm
|
1796 kg
|
|
3/8”-C
|
9,525 mm
|
0.5
|
299 mm
|
4.10 mm
|
2
|
3
|
10-64 mm
|
1968 kg
|
|
5/16”-D
|
7,9375 mm
|
0.200787402
|
353 mm
|
3.50 mm
|
1
|
2
|
25-150 mm
|
3628 kg
|
|
3/8”-D
|
9,525 mm
|
0.5
|
353 mm
|
4.10 mm
|
2
|
3
|
25-150 mm
|
3175 kg
|
|
7/16”-D
|
11,1125 mm
|
0.5
|
353 mm
|
4.70 mm
|
2
|
3
|
25-150 mm
|
4263 Kg
|
|
½”-D
|
12,7 mm
|
0.598425197
|
353 mm
|
5.40 mm
|
3
|
4
|
25-150 mm
|
4445 kg
|
|
9/16”-D
|
14,2875 mm
|
0.598425197
|
353 mm
|
6,10 mm
|
4
|
5
|
25-150 mm
|
4036 kg
|
|
5/8”-E
|
15,875 mm
|
0.5
|
394 mm
|
6.80 mm
|
4
|
5
|
25-150 mm
|
4354 kg
|
|
¾”-E
|
19,05 mm
|
0.6
|
394 mm
|
8.10 mm
|
5
|
6
|
25-150 mm/p>
|
5397 kg
|
|
7/8”-F
|
22,225 mm
|
0.6
|
515 mm
|
9.60 mm
|
6
|
7
|
25-150 mm
|
4445 kg
|
|
1”-F
|
25,400 mm
|
0.6
|
515 mm
|
10.90 mm
|
7
|
8
|
25-150 mm
|
5034 kg
|
Above are detailed parameter of standard keyway broaches. If your data does not match the table's, it should be considered as non-standard keyway broach.
