Quick Details
-
Bottle Volume(ml):
-
5000 ml
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
880
-
Voltage:
-
380v/3PH/50Hz or special order
-
Dimension(L*W*H):
-
166*74*220cm
-
Power (kW):
-
12
-
Weight (KG):
-
1.3 KG
-
Weight:
-
1.3 Ton
-
Model Number:
-
880
-
Power(W):
-
12kw
-
Production Capacity (BPH):
-
800
Quick Details
-
Neck Diameter(mm):
-
110 mm
-
Max.Bottle Diameter(mm):
-
180 mm
-
Max.Bottle Height(mm):
-
360 mm
-
Bottle Volume(ml):
-
5000 ml
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
880
-
Voltage:
-
380v/3PH/50Hz or special order
-
Dimension(L*W*H):
-
166*74*220cm
-
Power (kW):
-
12
-
Weight (KG):
-
1.3 KG
-
Weight:
-
1.3 Ton
-
Model Number:
-
880
-
Power(W):
-
12kw
-
Production Capacity (BPH):
-
800

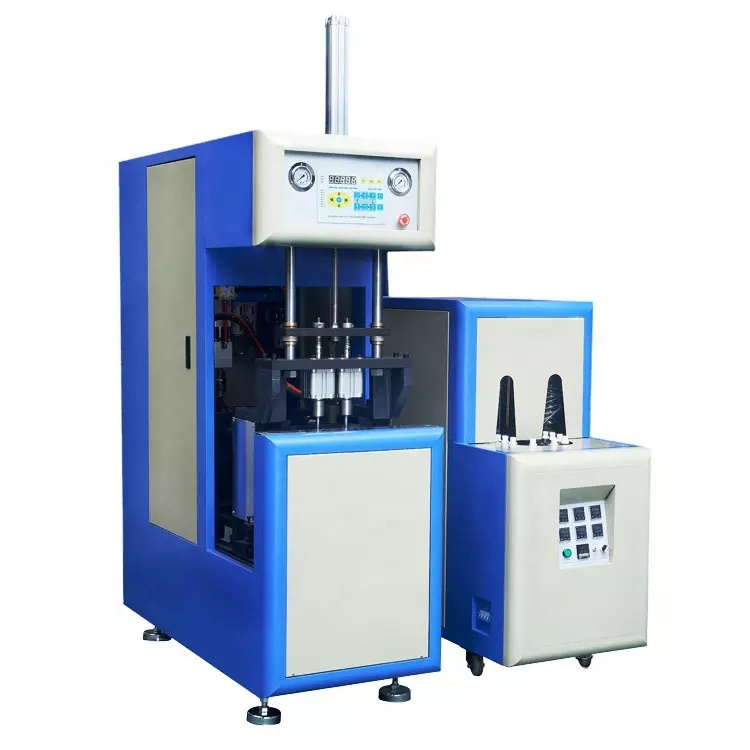

Pet bottle Blowing Machine automatic dropping the bottle stretch blow moulding machine hz 880
Features:
- Produce bottle from 0.1L to 5L
- Advanced PLC control system with a use-friendly panel and time control precision of PLC up to 0.01second
- Equipped with special designed air storage unit
- Adopt to far infrared preform heater, average and enough heating
- Heating lamps are adjustable in directions to suit various preforms
- Independent temperature control for different heating lamp to get ideal preform heating results
|
General Information |
|
|
Type |
880 |
|
Number of Cavities |
2 Cavity(Max 2L) or 1 cavity(max 5L) |
|
Theoretical Output |
8 0 0-1000 BPH |
|
Voltage Standard |
380V/3PH/50Hz or special order |
|
Total Power(Full Loaded) |
3 -12Kw |
|
Min air compressor |
1 .2 m3/min 3.0Mp |
|
Net dimension & Weight(L×W×H) |
|
|
Blow Molding Machine |
166×74×220cm |
|
Pre-heater |
180×70×140cm |
|
Net weight |
1.3T |
|
Container |
|
|
Container Volume (Max.) |
5 L |
|
Neck Diameter Range |
8 -120mm |
|
Container Diameter |
18 0mm |
|
Container Height |
36 0mm |
