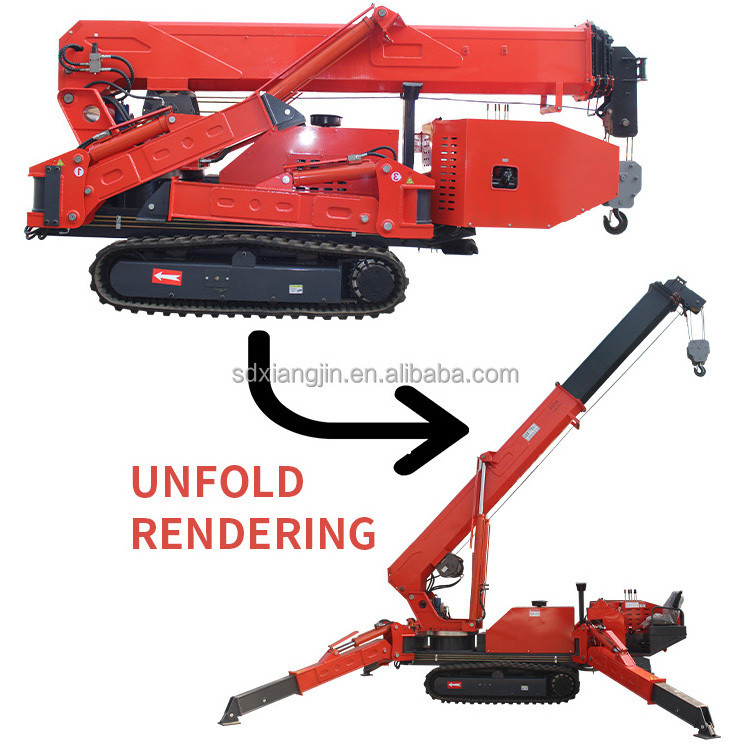

Mobile Mini Hoist Spider Crane 5 Ton Truck Mounted Crane Tower Crane
Mobile Mini Hoist Spider Crane 5 Ton Truck Mounted Crane Tower Crane
Mobile Mini Hoist Spider Crane 5 Ton Truck Mounted Crane Tower Crane
Mobile Mini Hoist Spider Crane 5 Ton Truck Mounted Crane Tower Crane
Mobile Mini Hoist Spider Crane 5 Ton Truck Mounted Crane Tower Crane
Mobile Mini Hoist Spider Crane 5 Ton Truck Mounted Crane Tower Crane
Mobile Mini Hoist Spider Crane 5 Ton Truck Mounted Crane Tower Crane
Mobile Mini Hoist Spider Crane 5 Ton Truck Mounted Crane Tower Crane

Mobile Mini Hoist Spider Crane 5 Ton Truck Mounted Crane Tower Crane

FOB Reference Price: Get Latest Price
≥1 Sets
US $23999
≥5 Sets
US $18999
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Rated Loading Capacity:
5t
Max. Lifting Height:
16m
Place of Origin:
Shandong, China
Brand Name:
XR
Showroom Location:
None
Product name:
XR Spider Crane
Type:
Liftling Equipment
Lifting capacity:
5 T
Lifting height:
16m
Lifting speed:
0-10m/min
Walking Speed:
0-5.5 km/h
Vehicle size:
4500*1360*2100 mm
Maximum working radius:
15m
Boom length:
4m-15m
Key words:
Mini Spider Crane

Quick Details

Weight (KG):
5000
Marketing Type:
Hot Product 2023
Application:
Widely
Rated Loading Capacity:
5t
Max. Lifting Height:
16m
Place of Origin:
Shandong, China
Brand Name:
XR
Showroom Location:
None
Product name:
XR Spider Crane
Type:
Liftling Equipment
Lifting capacity:
5 T
Lifting height:
16m
Lifting speed:
0-10m/min
Walking Speed:
0-5.5 km/h
Vehicle size:
4500*1360*2100 mm
Maximum working radius:
15m
Boom length:
4m-15m
Key words:
Mini Spider Crane
Product Description
Spider crane strength manufacturers commodity price for reference prices can be discounted factory direct sales small profits highsales manufacturers supply support customized
The spider crane has the characteristics of small space, accurate transmission, and simple operation . It can complete hoisting tasks in situations where scaffolding like traditional cranes cannot be used, such as complex factory spaces, deep mines, and harsh oceans and waters . At the same time, the spider crane is not limited by the shape of heavy objects , and can transport materials of various shapes.
If you are interested in this product,
please contact us
and
we will provide you with the highest quality service!
☞Click me to get in touch！
Specification
Maximum working radius
15m
The maximum ground head
16m

Hoisting device
Hook rising speed
0-10m/min
Wire rope specification
Φ10mm

Telescopic device
Boom form
5-section boom
Boom length/time
4m-15m
Heave device
Boom angle/time
0-75°/13sec
Swivel device
Rotation angle/speed
0-360° (continuous)/60sec

Outrigger
Outrigger action form
Manual unscrewing + hydraulic automatic support (two legs)
Maximum extension (mm)
Minimum extension
Front and rear 5600x left and right 5400
Front and rear 4700x left and right 4400

Traveling device
Traveling mode
Hydraulic motor drive, two speeds (rubber track)
Walking speed
0-5.5km/h
Gradeability
20°(36%)
motor
voltage
AC380V/11 KW





Engine
Manufacturer
37 kW in the cloud
Type/displacement
YN27GBZ/2.7L
Start mode
electric start
Starting performance
-5°C~40°C
Fuel/Volume
Diesel/45L
Battery capacity
12v 45AH
Fuel consumption rate
230g/kW-h

Operating system
Type of operation (boom/outrigger) manual walking
Manual operation, manual walking + remote control (optional)
Standard Configuration
Diesel engine and electric motor (dual power)
Vehicle size
Length 4500*Width 1360*Height 2100
Manufacturing process
Baking paint assembly process

The features of spider crane

1. Full hydraulic transmission, electromechanical dual use, high efficiency, low labor intensity, safe and reliable work
2. Each hydraulic system is equipped with a balance valve and hydraulic lock for higher safety performance
3. The boom and important structural parts are made of special steel plates, which can reduce the dead weight of Marine crane and improve its performance
4. The slewing bearing part is made of 50 manganese forging material with inner tooth turntable
5. Cold work molding, 8 - prism structure, give full play to the mechanical properties of the material
6. Boom adopts hydraulic cylinder telescopic, more safe and reliable work
7. Night lights were installed to extend the working hours
8. Optional cab, negative arm and three-phase operation
9. Hydraulic oil pipe rubber pipe adopts double wire ultra-high pressure oil pipe, steel pipe adopts electroplating treatment
If you are interested in this product, please contact us and we will give you the best deals and gifts!
☞Click me to get in touch！
Details Images


The use of spider crane

1. Glass engineering. It is even possible to install glass under the roof by using vacuum glass suction cups mounted on the search hook.
2. Curtain wall installation. The crane is small in size and easy to transport, and is widely used in curtain wall construction.
3. Work in narrow spaces. Even in narrow spaces, the Spider Hanger can play an important role with its four supporting legs.
If you are interested in this product, please contact us and we will give you the best deals and gifts!
☞Click me to get in touch！

Transport

1) We have experienced workers who can effectively load spider cranes into containers and boxes to save space and reduce costs. 2) Tailored according to the internal dimensions of the container.
