Quick Details
-
Voltage:
-
220V/380V 50HZ
-
Power:
-
6.5 KW
-
Weight:
-
1500 KG
-
Dimension(L*W*H):
-
4450mm*2170mm*2700mm
-
Product name:
-
Water Spray Autoclaves For Food Sterilization
-
Application:
-
Food and Beverage Industry
-
Sterilizing way:
-
Hot Water Spraying
-
Material:
-
304 Stainless Steel
-
Function:
-
Prolong shelf life
-
Control system:
-
PLC Semiens
-
Advantage:
-
Save Energy good sterilization effect
-
Keywords:
-
Retort machine
-
Design Temperature:
-
147 Degree Centigrade
-
Design pressure:
-
0.45Mpa
Quick Details
-
Marketing Type:
-
New Product 2023
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZONLIAN
-
Voltage:
-
220V/380V 50HZ
-
Power:
-
6.5 KW
-
Weight:
-
1500 KG
-
Dimension(L*W*H):
-
4450mm*2170mm*2700mm
-
Product name:
-
Water Spray Autoclaves For Food Sterilization
-
Application:
-
Food and Beverage Industry
-
Sterilizing way:
-
Hot Water Spraying
-
Material:
-
304 Stainless Steel
-
Function:
-
Prolong shelf life
-
Control system:
-
PLC Semiens
-
Advantage:
-
Save Energy good sterilization effect
-
Keywords:
-
Retort machine
-
Design Temperature:
-
147 Degree Centigrade
-
Design pressure:
-
0.45Mpa
Product Description

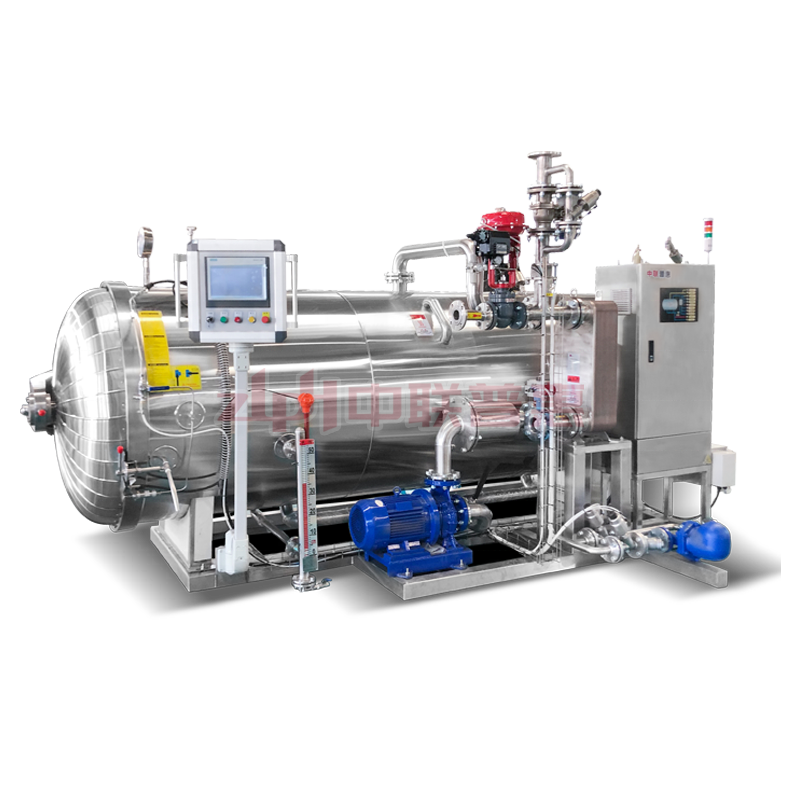

Water Spray Retort Machine Sterilizer Machine
Water spray retort machine is suitable for high temperature food sterilization. It has full automatic control system with Siemens touch screen,no paper recorder ,imported automatic valves . It only use less process water to quickly circulated inside retort to reach the preset sterilization temperature ,to realize the perfect pressure control.
FEATURES:
1. The steam directly enters the retort to sterilize the food at high temperature, which is simple and quick;
2. Equipped with a cooling device, no dead spots for sterilization, and the heat distribution in the sterilization stage is controlled at ±0.5°C;
3. Equipped with negative pressure safety device to avoid manual misoperation and form negative pressure to ensure the safety of the equipment;
4. After the equipment is restored from power failure, the program can automatically restore to the state before the power failure to reduce losses;
5. Chain drive can be selected in the kettle, which is convenient to get in and out of the basket and save manpower;
6. One-key operation, when the product enters the sterilization kettle and closes the kettle door, press the sterilization button to complete the entire sterilization process;
7. Equipped with triple safety interlock to prevent misoperation of workers and avoid accidents.
2. Equipped with a cooling device, no dead spots for sterilization, and the heat distribution in the sterilization stage is controlled at ±0.5°C;
3. Equipped with negative pressure safety device to avoid manual misoperation and form negative pressure to ensure the safety of the equipment;
4. After the equipment is restored from power failure, the program can automatically restore to the state before the power failure to reduce losses;
5. Chain drive can be selected in the kettle, which is convenient to get in and out of the basket and save manpower;
6. One-key operation, when the product enters the sterilization kettle and closes the kettle door, press the sterilization button to complete the entire sterilization process;
7. Equipped with triple safety interlock to prevent misoperation of workers and avoid accidents.
Specification
|
item
|
value
|
|
Applicable Industries
|
Hotels, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Food & Beverage Shops, Food & Beverage Factory, Food enginnering
|
|
After Warranty Service
|
Video technical support, Online support, Spare parts, Field maintenance and repair service, Video technical support
|
|
Local Service Location
|
Thailand, Malaysia, Sri Lanka, South Africa, South Korea, Indonesia, Algeria
|
|
Showroom Location
|
Philippines, Indonesia, Thailand, South Korea, South Africa, Malaysia, Peru
|
|
Video outgoing-inspection
|
Provided
|
|
Machinery Test Report
|
Provided
|
|
Marketing Type
|
New Product 2020
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
PLC, Motor, Pressure vessel, Pump, Pressure vessel
|
|
Condition
|
New
|
|
Place of Origin
|
Shandong, China
|
|
Brand name
|
Z&P, ZLPH
|
|
Voltage
|
380V, 220V
|
|
Dimension
|
1200 mm X 3600 mm X 4450 mm (Diameter/body length/total length)
|
|
Certificatiom
|
CE, ISO, ASMI ,Third Party Inspection Organization
|
|
Warranty
|
1 Year
|
|
After sales service
|
Video technical support
|
|
Key Selling Points
|
Automatic
|
|
Material
|
304 Stainless Steel
|
|
Sterilizing Way
|
Hot water
|
Packing & Delivery
We choose the plywood case and film for package and the best service shipment company to deliver
on time .
