Quick Details
-
Place of Origin:
-
Other Country
-
Brand Name:
-
Sunlight/OEM
-
Model Number:
-
XL19B/F11-R
-
Diameter:
-
19mm
-
Illuminated Options:
-
ring Illuminated
-
Contact configuration:
-
1NO1NC
-
Type:
-
Push Button Switches
-
Material:
-
Alumina black
-
Contact Material:
-
Silver Alloy
-
LED color:
-
Red Green Yellow Blue White
-
LED voltage:
-
3V/6V/12V/24V/110V/220V
-
Certificate:
-
CE RoHS SGS
-
Free Sample:
-
Available
Quick Details
-
Protection Level:
-
IP67/IP40/IK09
-
Max. Current:
-
5A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Other Country
-
Brand Name:
-
Sunlight/OEM
-
Model Number:
-
XL19B/F11-R
-
Diameter:
-
19mm
-
Illuminated Options:
-
ring Illuminated
-
Contact configuration:
-
1NO1NC
-
Type:
-
Push Button Switches
-
Material:
-
Alumina black
-
Contact Material:
-
Silver Alloy
-
LED color:
-
Red Green Yellow Blue White
-
LED voltage:
-
3V/6V/12V/24V/110V/220V
-
Certificate:
-
CE RoHS SGS
-
Free Sample:
-
Available
Features:

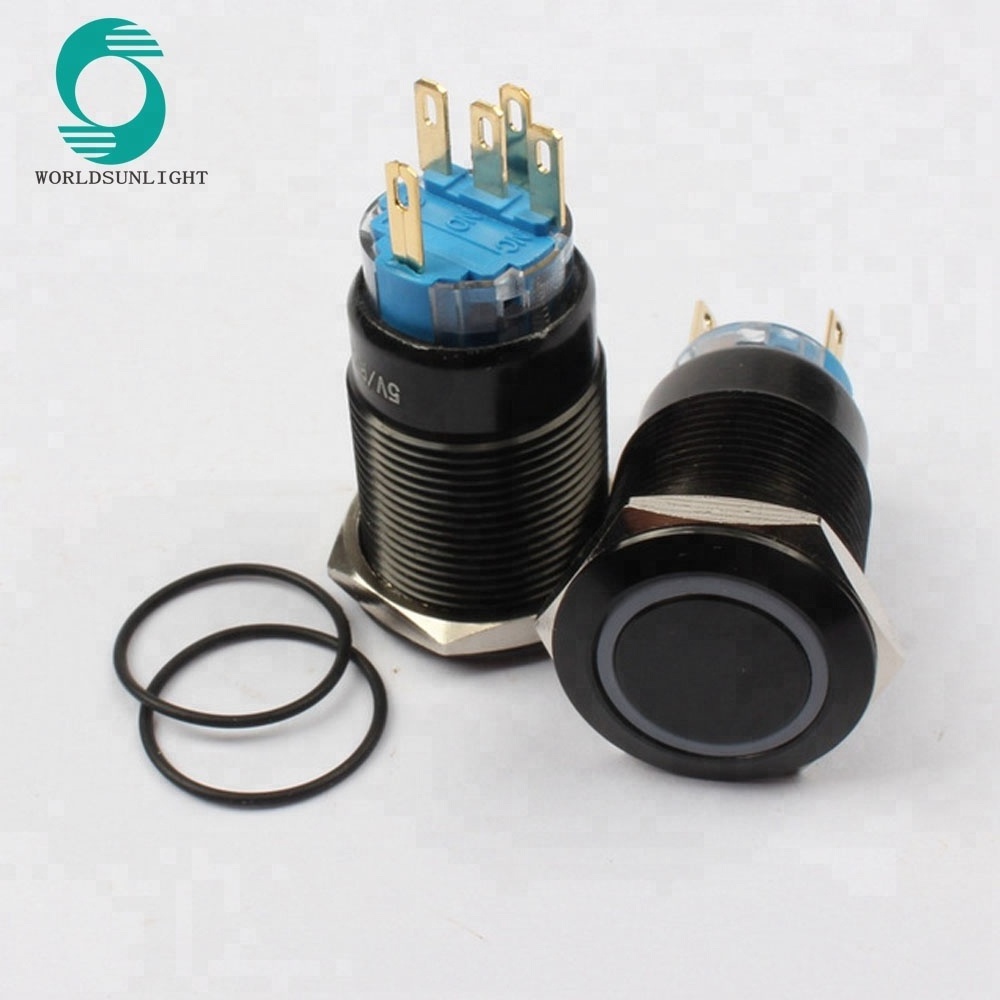

1)19mm diameter 1NO1NC latching type ring led light illuminated Anti vandal Alumina black metal pushbutton switch
2)19 mm ,solder terminal
3)latching
4)CE RoHS SGS
5)anti-vandal
19mm diameter 1NO1NC latching type ring led light illuminated Anti vandal Alumina black metal pushbutton switch
|
16mm push button switch |
|
22mm push button switch |
Application:
|
It can be used in variety of places such as Outdoor controls, Communications,Security equipment,Defense,Medical equipment,Industrial automation,Food processing equipment,Security control button,Industrial machinary,Coffee maker control button,Transportation:Mass-transit,life trucks,Bathroom control button and so on. |
19mm diameter 1NO1NC latching type ring led light illuminated Anti vandal Alumina black metal pushbutton switch
The introduction of model:
|
XL |
Diameter |
The head shape |
Lamp Type |
|
Code of Company |
19 19mm
|
F Flat H High Flat B Domed (We can customize for you.) |
D Dot R Ring N Non-illuminted |
19mm diameter 1NO1NC latching type ring led light illuminated Anti vandal Alumina black metal pushbutton switch
Technical parameters:
|
Type |
XL19B/F11-R |
||
|
Illuminated Options |
Ring |
||
|
Max. Switch Rating |
5A/ 250VAC |
||
|
Contact Resistance |
≤30mΩ |
||
|
Insulation Resistance |
≥1000mΩ |
||
|
Dielectric Strengh |
2000VAC |
||
|
Operation Temp. |
-20°C ~ +55°C |
||
|
Mechanical Life |
2,000,000 cycles |
||
|
Electrical Life |
>50,000 cycles |
||
|
Contact Material |
Silver Alloy |
||
|
Torque |
5 ~ 14 Nm |
||
|
Operation Pressure |
2.5 ~ 4 N |
||
|
Operation Travel |
About 2.8mm |
||
|
Protection |
IP40/IP67/IK09 |
||
|
Material |
Contact |
Silver Alloy |
|
|
Actuator /Body |
Stainless Steel/ Anodized Aluminum |
||
|
Base |
PBT |
||
|
LED spec. |
Type |
Ring/Dot |
|
|
Color |
G-Green |
B-Blue |
|
|
Rated Voltage |
6V/12V/24V/110V/220V |
||
|
Life |
Approx. 40, 000hours |
||
19mm diameter 1NO1NC latching type ring led light illuminated Anti vandal Alumina black metal pushbutton switch
Terminal description:
|
19mm diameter 1NO1NC latching type ring led light illuminated Anti vandal Alumina black metal pushbutton switch
Order Code:
Momentary
:
Means that when you push switch and then move your finger, the actuator will back to the original position.
Latching : Means that when you push switch once it will change state and stay in this pushed-down position and will not come back to original position unless you push it again.
19mm diameter 1NO1NC latching type ring led light illuminated Anti vandal Alumina black metal pushbutton switch
Dimensions:
19mm diameter 1NO1NC latching type ring led light illuminated Anti vandal Alumina black metal pushbutton switch
Pictures:
| We can also supply 2NO2NC push button switch. |
Anything needs me,plz send the inquiry to me!Thanks!We can supply 12mm 16mm 19mm 22mm 25mm 30mm push button switches.
You can also visit our offical website: www.worldsunlight.en.alibaba.com
The light show:
19mm diameter 1NO1NC latching type ring led light illuminated Anti vandal Alumina black metal pushbutton switch
As follows:
19mm diameter 1NO1NC latching type ring led light illuminated Anti vandal Alumina black metal pushbutton switch
Packaging:
19mm diameter 1NO1NC latching type ring led light illuminated Anti vandal Alumina black metal pushbutton switch
Our services:
1.Reply inquiry in 24 hours.
2.Please kindly inform us which items you are interested in the reasonable price will be provided to you upon receipt of your new inquiry ASAP.
3.Answer your question detailed.
4.Solved the problem with you during using our products.
5.Welcome to visit our company and technology communication.
19mm diameter 1NO1NC latching type ring led light illuminated Anti vandal Alumina black metal pushbutton switch
