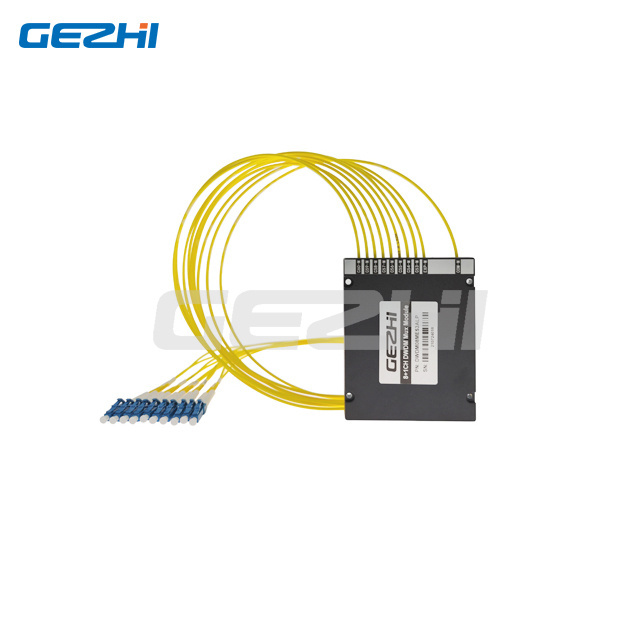

Low IL <2.5dB 1x8 Channel DWDM filter fiber Optic WDM DWDM LC/PC pigtailed connector

Low IL <2.5dB 1x8 Channel DWDM filter fiber Optic WDM DWDM LC/PC pigtailed connector

FOB Reference Price: Get Latest Price

≥10 Pieces

US $40

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: GEZHI or OEM

Use:: WDM System

Warranty Time:: 3 years

Channel Spacing:: 100GHz

Channel Number:: 4, 8, 16, 18 or Customized

Center Wavelength:: ITU Grid

Fiber Type:: SMF-28e

Fiber Connector:: LC/UPC, FC/APC, SC/APC etc.

Application:: Data Center

Quick Details

Type:: FTTx Solutions

Model Number:: DWDM108XXX

Place of Origin:: Guangdong, China

Brand Name:: GEZHI or OEM

Use:: WDM System

Warranty Time:: 3 years

Channel Spacing:: 100GHz

Channel Number:: 4, 8, 16, 18 or Customized

Center Wavelength:: ITU Grid

Fiber Type:: SMF-28e

Fiber Connector:: LC/UPC, FC/APC, SC/APC etc.

Application:: Data Center

Product Overview

DWDM Mux Demux

DWDM (Dense Wavelength Division Multiplexing) is a combination of a set of optical wavelengths that can be transmitted with one fiber. This DWDM Module launched by GEZHI Photonics is based on the thin film coating technology. This is a laser technology used to increase bandwidth on existing fiber-optic backbones. It enables optical fiber networks to transmit signals of several wavelengths simultaneously.

GEZHI Photonics provide full range of DWDM Mux Demux with customized Channel, Wavelength, Power, Fiber type and connector type. Also Low insertion type is available

FEATURES AT A GLANCE

Low Insertion Loss

High Isolation

High Stability & Reliability

Industrial Operating Temperature

(-40~+80℃ available )

Customized Package type

Stainless Steel tube, ABS Box, ABS Plug-in Module, LGX Chassis, Rackmount

PRODUCT SPECIFICATIONS

Parameter	Unit	DWDM Mux Demux
Channel Spacing	nm	100GHz or 200GHz
Center Wavelength	nm	ITU Grid
Channel Passband	nm	0.22 (100GHz) / 0.5 (200GHz)
Channel Number	/	4CH	8CH	16CH
Insertion Loss	dB	<1.5	<2.5	<5.5 or <3.5(with skip)
Isolation @Adjacent Channel	dB	>30
Isolation @Non-adjacent Channel	dB	>40
Isolation @Express Port	dB	>15
Polarization Dependent Loss	dB	<0.2
Polarization Mode Dispersion	dB	<0.1
Directivity	dB	>50
Return Loss	dB	UPC >45 APC>50
Power Handling	mW	<500 (High Power type available)
Fiber Type	/	SMF-28e (Polarization Maintaining Type available)
Operating Temperature	℃	-20~+75 (-40~+85 available)
Storage Temperature	℃	-40~+85
Package Type	mm	ABS Box, ABS Plug-in Module, LGX Chassis, Rackmount
