1. Are you a trade company or manufacturer?
Hongqi Instrument Co., Ltd is a professional manufacturer in the field of flow meter for over 20 years, which is engaged in
designing and processing all kinds of flow meters, and provide production service and technical support for our customers.
2. If I need a sample for pretest, do you sell samples?
Yes, we do. We accept sample sales service if you need.
3. Can you make the products according to my own drawings?
Yes, we can do OEM service based on your requirement if it is executable.
- Product Details
- {{item.text}}

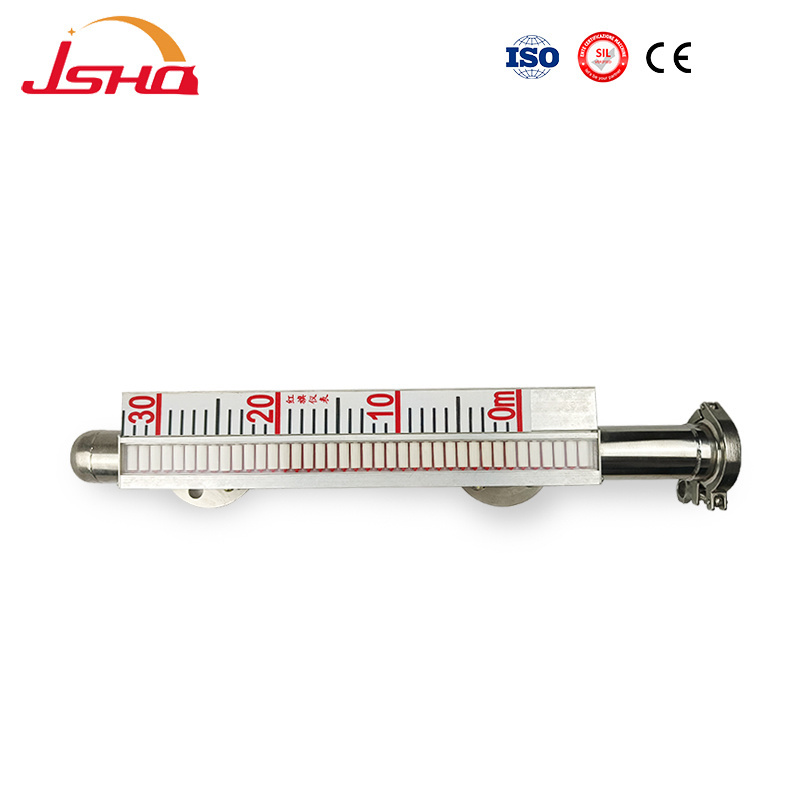

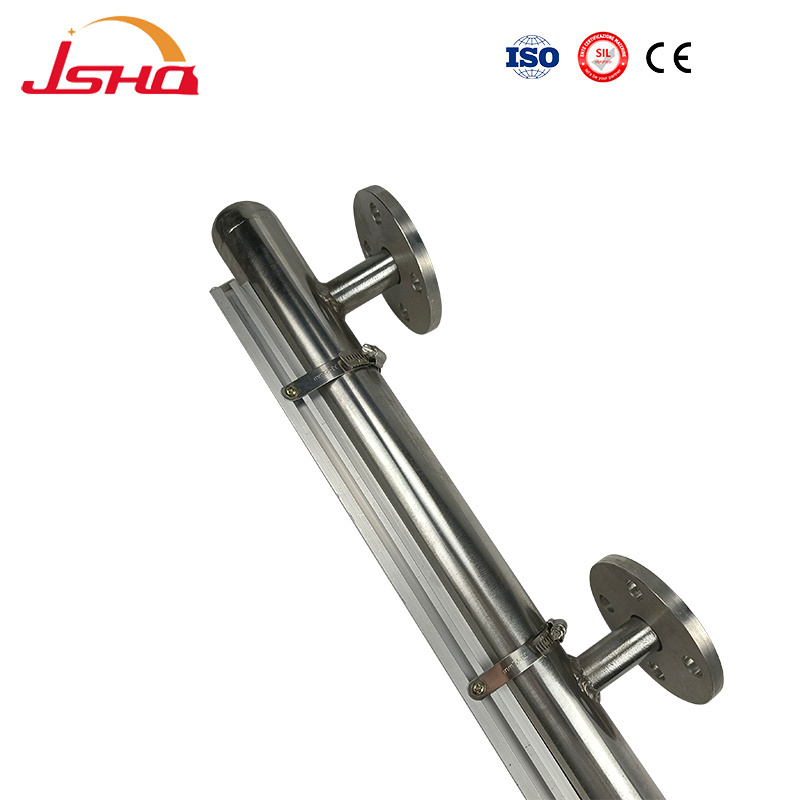

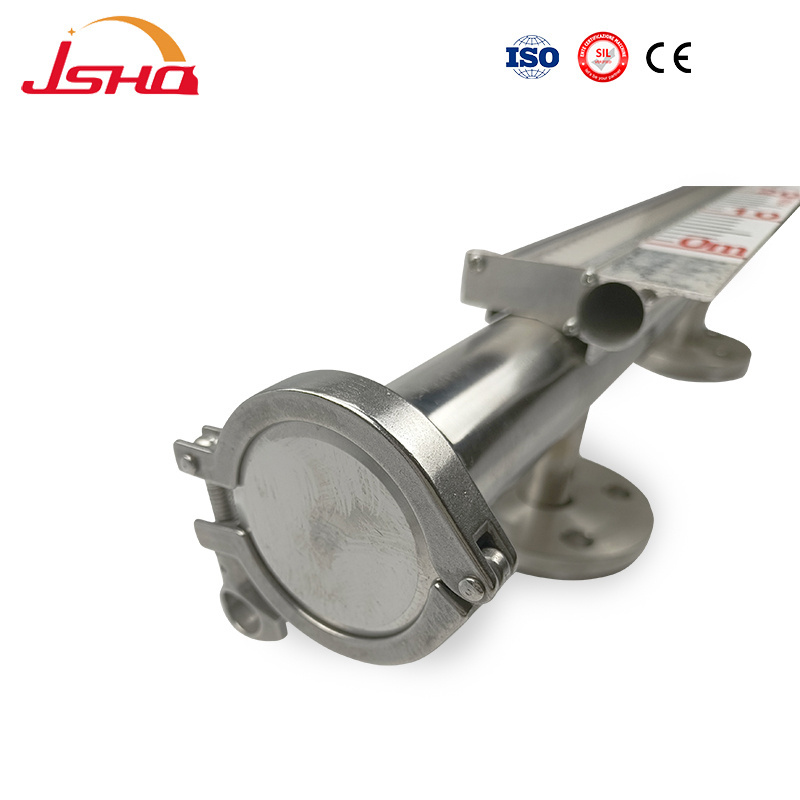

Quick Details
-
Brand Name:
-
WU
-
Model Number:
-
UHZ59-C
-
Material:
-
304/316
-
Measuring range:
-
300~15000mm
-
Accuracy:
-
±10mm,±16mm
-
Rotary column diameter:
-
10mm, 16mm
-
Working pressure:
-
1MPa~6MPa, anti-corrosion type≤1.0MPa
-
Media density:
-
≥0.45g/cm3
-
Media density difference:
-
≥0.15g/m2 (measurement boundary)
-
Medium temperature:
-
20C~+450C
-
Medium viscosity:
-
≤0.4PaS
-
Factory connection flange size:
-
DN20, PN1.0 (metric pipe)
-
OEM:
-
yes
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
1 years
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
WU
-
Model Number:
-
UHZ59-C
-
Material:
-
304/316
-
Measuring range:
-
300~15000mm
-
Accuracy:
-
±10mm,±16mm
-
Rotary column diameter:
-
10mm, 16mm
-
Working pressure:
-
1MPa~6MPa, anti-corrosion type≤1.0MPa
-
Media density:
-
≥0.45g/cm3
-
Media density difference:
-
≥0.15g/m2 (measurement boundary)
-
Medium temperature:
-
20C~+450C
-
Medium viscosity:
-
≤0.4PaS
-
Factory connection flange size:
-
DN20, PN1.0 (metric pipe)
-
OEM:
-
yes
|
item
|
value
|
|
Grade
|
Industrial
|
|
Warranty
|
1 years
|
|
Customized support
|
OEM
|
|
Place of Origin
|
China
|
|
|
Jiangsu
|
|
Brand Name
|
NO
|
|
Model Number
|
UHZ59-C
|
|
Measuring range
|
300~15000mm
|
|
Accuracy
|
±10mm,±16mm
|
|
Rotary column diameter
|
10mm, 16mm
|
|
Working pressure
|
1MPa~6MPa, anti-corrosion type≤1.0MPa
|
|
Media density
|
≥0.45g/cm3
|
|
Media density difference
|
≥0.15g/m2 (measurement boundary)
|
|
Medium temperature
|
20C~+450C
|
|
Medium viscosity
|
≤0.4PaS
|
|
Factory connection flange size
|
DN20, PN1.0 (metric pipe)
|
|
OEM
|
yes
|
