The wireless & battery-powered design makes it easy for fast DIY installation, and the night mode feature ensures a long and comfortable sleep. With this device, we will never have to worry about forgetting to turn off the AC. It also helps save energy and enjoy air conditioning without worrying about the cost.
- Product Details
- {{item.text}}
Quick Details
-
Mounting Type:
-
Wireless Install
-
Description:
-
Wireless Battery Powered Motion Sensor, RZ050 Motion Sensor
-
Model Number:
-
RZ050
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Rayzeek
-
Theory:
-
PIR Inductive
-
Output:
-
Occupancy Sensor Switch
-
Product Type:
-
PIR Motion Sensor and IR Transmitht Control
-
Input Voltage:
-
2.5V-3.5VDC (2 AAA batteries)
-
Output Voltage:
-
2.5V-3.5VDC (2 AAA batteries)
-
Motion Detecting range:
-
6-9M Max
-
IR transmitting range:
-
<10M
-
IR Transmitting direction:
-
30 degree
-
Time delay options:
-
15min, 30min, 1h(default), 2h.
-
Mounting:
-
Screwing or sticking on the wall.
-
Size:
-
45 x 70 x 64 mm
Quick Details
-
Usage:
-
Motion Sensor For Air Conditioner
-
Series:
-
PIR Motion Sensor Controller For Air Conditioner
-
Features:
-
Motion Sensor For Air Conditioner
-
Mounting Type:
-
Wireless Install
-
Description:
-
Wireless Battery Powered Motion Sensor, RZ050 Motion Sensor
-
Model Number:
-
RZ050
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Rayzeek
-
Theory:
-
PIR Inductive
-
Output:
-
Occupancy Sensor Switch
-
Product Type:
-
PIR Motion Sensor and IR Transmitht Control
-
Input Voltage:
-
2.5V-3.5VDC (2 AAA batteries)
-
Output Voltage:
-
2.5V-3.5VDC (2 AAA batteries)
-
Motion Detecting range:
-
6-9M Max
-
IR transmitting range:
-
<10M
-
IR Transmitting direction:
-
30 degree
-
Time delay options:
-
15min, 30min, 1h(default), 2h.
-
Mounting:
-
Screwing or sticking on the wall.
-
Size:
-
45 x 70 x 64 mm
Products Description
New China Motion Sensor Switch For Air Conditioner Control Wholesale Price Wireless Battery Powered PIR Sensor Switch
Air Conditioner Motion Sensor Controller
Description:

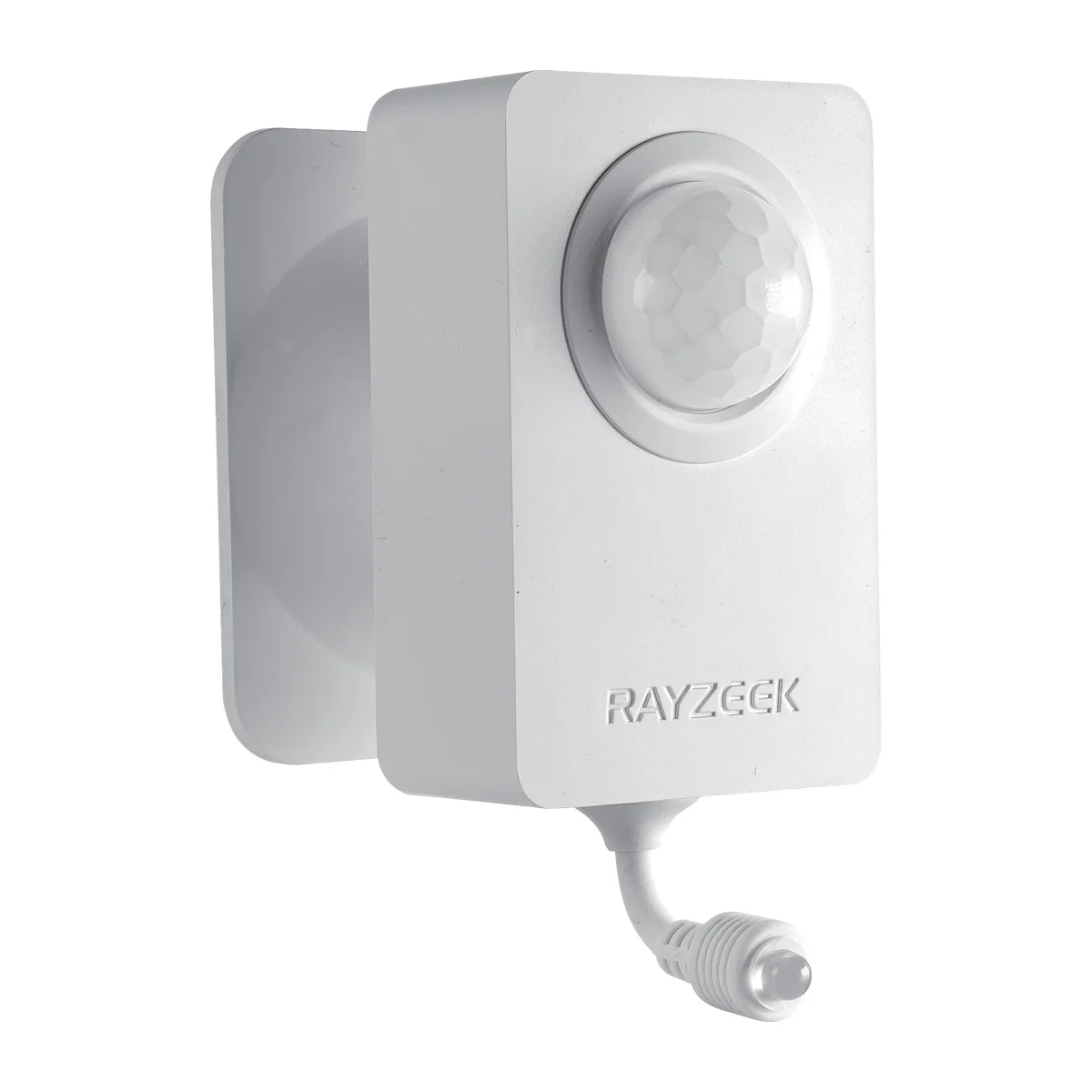

The RZ050 is an air conditioner motion sensor controller that can automatically turn off the AC left running in an unoccupied space. The device learns the “Power OFF” command from the remote control and sends the same signal to turn off the AC when the motion sensor monitors no occupancy in the room.
Description:
The RZ050 is an air conditioner motion sensor controller that can automatically turn off the AC left running in an unoccupied space. The device learns the “Power OFF” command from the remote control and sends the same signal to turn off the AC when the motion sensor monitors no occupancy in the room.
The wireless & battery-powered design makes it easy for fast DIY installation, and the night mode feature ensures a long and comfortable sleep. With this device, we will never have to worry about forgetting to turn off the AC. It also helps save energy and enjoy air conditioning without worrying about the cost.
Air Conditioner Motion Sensor Controller
Features & Benefits
* Compatible with most split AC units operated by remote controls.
* Night mode prevents the AC from accidentally turning off when occupants are sleeping at night.
* It’s safe to use and does not have a negative impact on your AC or interfere with any warrant or guarantee you have.
* Battery-powered with long-lasting battery life (at least 1 year).
* Wireless design for fast, easy, and flexible DIY installation by simply sticking or fixing on the wall.
Specification
|
Item No.
|
RZ050
|
|
Voltage
|
2.5V-3.5VDC (2 AAA batteries)
|
|
Motion Detecting range
|
6-9M Max
|
|
IR transmitting range
|
<10M
|
|
IR Transmitting direction
|
30 degree
|
|
Mounting
|
Screwing or sticking on the wall
|
|
Size
|
45 x 70 x 64 mm
|
|
Indoor use only
|
Indoor use only, 0~40°C relative humidity： up to 90%
|
Details Images
1. The RZ050 utilizes passive infrared (PIR) technology to monitor the room for occupancy. The lens will flash a red light to
indicate it has detected a motion signal.
2. When the occupant has left the room and no presence is detected, RZ050 will continue to monitor the room for a preset time delay before sending the OFF signal to shut down the AC. The RZ050 will transmit two OFF commands in 2 seconds to ensure the AC is
successfully powered off.
indicate it has detected a motion signal.
2. When the occupant has left the room and no presence is detected, RZ050 will continue to monitor the room for a preset time delay before sending the OFF signal to shut down the AC. The RZ050 will transmit two OFF commands in 2 seconds to ensure the AC is
successfully powered off.
Press the Mode button to select between Day Mode and Night Mode. The corresponding indicator will light up.
*Day mode:
The RZ050 motion sensor controller will work the whole day and turn the AC off automatically if no occupancy is detected after a preset time delay.
*Night mode:
The light sensor activates and detects ambient brightness to distinguish “day” and “night”.
*Night mode:
The light sensor activates and detects ambient brightness to distinguish “day” and “night”.
SPECIAL NIGHT MODE DESIGN FOR YOUR NIGHT SLEEPING
In "Night Mode", the RZ050 motion sensor controller will turn the AC off only during the daytime if no occupancy is detected after
a preset time delay.
It does not detect motion and will not turn off the AC at night time.
